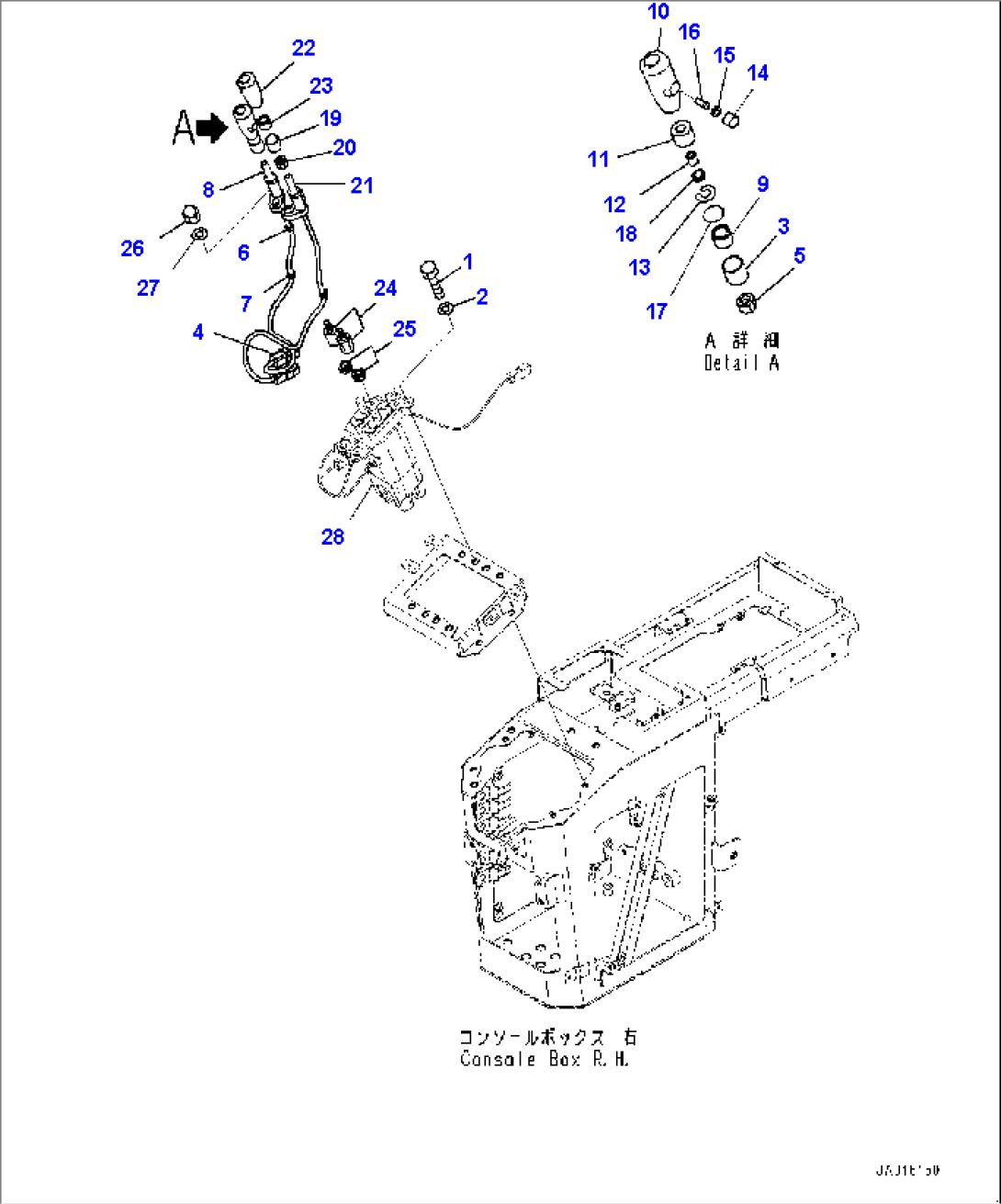

Item | Part No. | Part Name | Qty | Serial No. |
1 | 01010-81025 | Bolt | 75103- | |
2 | 01643-31032 | Washer | 75103- | |
3 | 418-43-48241 | Lever Assembly | 75834- | |
3 | 418-43-48240 | Lever Assembly | 75103-75833 | |
4 | Connector | 75103- | ||
5 | 23S-43-31550 | Nut | 75103- | |
6 | 23S-43-51230 | Grommet | 75103- | |
7 | 287-43-18350 | Grommet | 75103- | |
8 | 421-43-37591 | Lever | 75103- | |
9 | 421-43-38430 | Collar | 75103- | |
10 | 418-43-48261 | Knob Assembly | 75834- | |
10 | 418-43-48260 | Knob Assembly | 75103-75833 | |
10 | 421-43-38513 | Body Assembly | 75834- | |
10 | 421-43-38512 | Body Assembly | 75103-75833 | |
10 | 423-43-48290 | Switch Assembly, FNR Selector | 75103- | |
11 | 421-43-38523 | Cap | 75834- | |
11 | 421-43-38522 | Cap | 75103-75833 | |
12 | 421-43-38530 | Spacer | 75103- | |
13 | 421-43-38540 | Spring | 75103- | |
14 | 421-43-38550 | Cap | 75103- | |
15 | 421-43-38560 | Ring | 75103- | |
16 | 421-43-38570 | Plunger | 75103- | |
17 | 421-43-38580 | O-ring | 75103- | |
18 | 421-43-38740 | Stopper | 75103- | |
19 | 418-43-48230 | Lever Assembly | 75103- | |
20 | 23S-43-31550 | Nut | 75103- | |
21 | 421-43-37591 | Lever | 75103- | |
22 | 421-43-38332 | Knob | 75103- | |
23 | 421-43-38430 | Collar | 75103- | |
24 | 23S-43-51111 | Lever | 75103- | |
25 | 01583-11408 | Nut | 75103- | |
26 | 01546-10812 | Nut | 75103- | |
27 | 01643-50823 | Washer | 75103- | |
28 | (702-16-06250) | Valve, Pilot | - |
