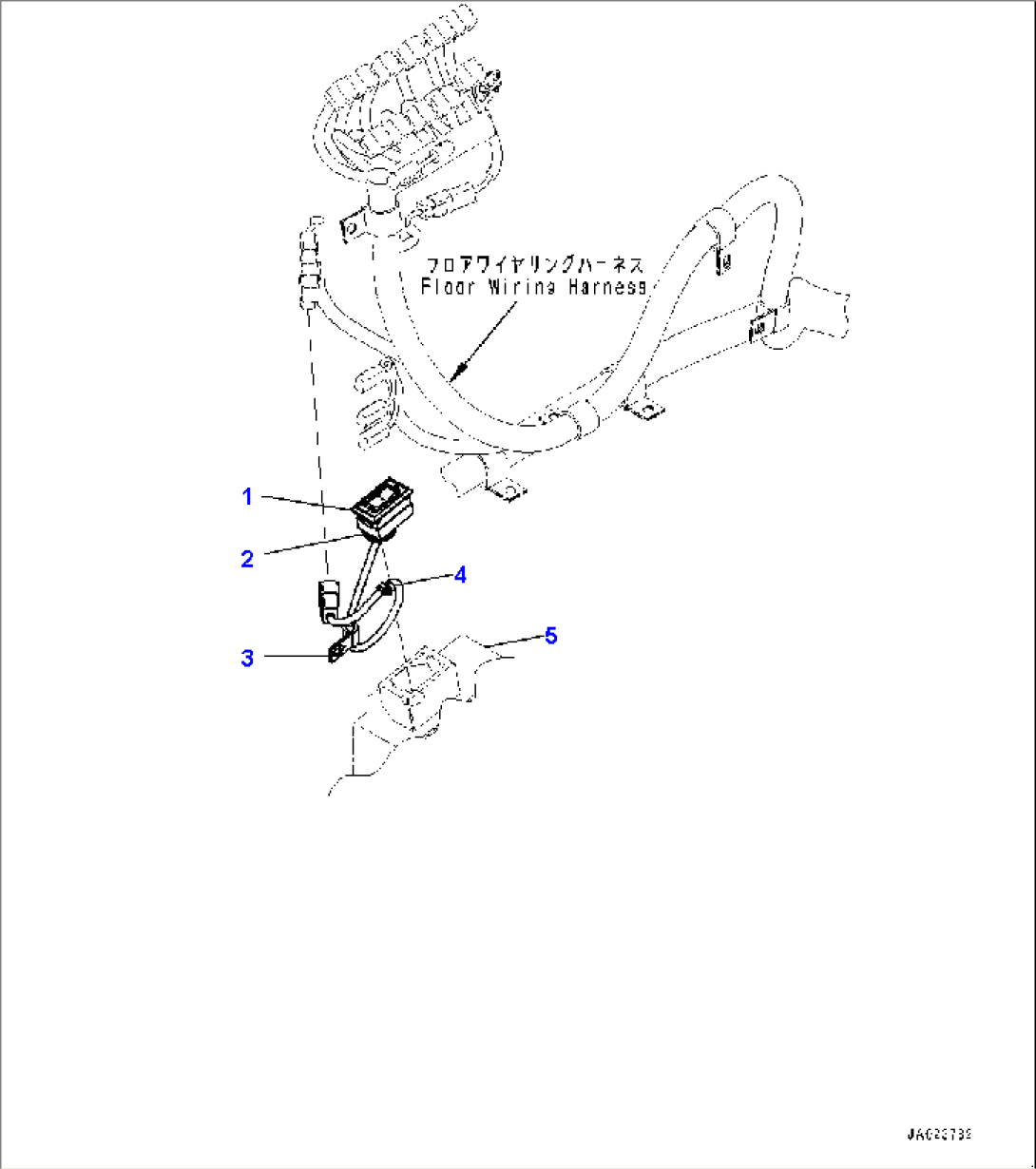

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 423-43-48371 | Plate | 90047- | |
| 2 | 423-43-48382 | Bracket | 90047- | |
| 3 | 01010-81080 | Bolt | 90047- | |
| 4 | 01643-31032 | Washer | 90047- | |
| 5 | 423-43-48161 | Cushion | 90047- | |
| 6 | 01010-81030 | Bolt | 90047- | |
| 7 | 01643-31032 | Washer | 90047- | |
| 8 | 20Y-62-15960 | Clip | 90047- | |
| 9 | 423-43-48110 | Rubber | 90047- | |
| 10 | 01010-81020 | Bolt | 90047- | |
| 11 | 01643-31032 | Washer | 90047- | |
| 12 | 01580-11008 | Nut | 90047- | |
| 13 | 01643-31032 | Washer | 90047- | |
| 14 | 423-43-48460 | Bracket | 90047- | |
| 15 | 01010-81025 | Bolt | 90047- | |
| 16 | 01643-31032 | Washer | 90047- | |
| 17 | 423-43-48340 | Plate | 90047- | |
| 18 | 01010-81025 | Bolt | 90047- | |
| 19 | 01643-31032 | Washer | 90047- | |
| 20 | 423-43-48161 | Cushion | 90047- |
