| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 08086-20100 | Switch, Starting | B20001- | |
| 2 | 418-06-42210 | Wiring Harness | B20001- | |
| 3 | 418-54-32990 | Bracket | B20001- | |
| 4 | 01010-80616 | Bolt | B20001- | |
| 5 | 01643-30623 | Washer | B20001- | |
| 6 | 569-06-61960 | Relay | B20001- | |
| 7 | 569-06-61970 | Relay | B20001- | |
| 8 | 01010-80616 | Bolt | B20001- | |
| 9 | 01643-30623 | Washer | B20001- | |
| 10 | 287-06-16420 | Bracket | B20001- | |
| 11 | 569-06-61960 | Relay | B20001- | |
| 12 | 569-06-61970 | Relay | B20001- | |
| 13 | 287-06-16420 | Bracket | B20001- | |
| 14 | 01010-80616 | Bolt | B20001- | |
| 15 | 01643-30623 | Washer | B20001- | |
| 16 | 421-V91-4160 | Sheet | B20001- | |
| 17 | 418-54-46130 | Bracket | B20001- | |
| 18 | 01010-81220 | Bolt | B20001- | |
| 19 | 01643-31232 | Washer | B20001- |
- Главная
- Каталог запчастей
- Колесные погрузчики
- Wa200 6 s/n b20001 up
- Operator's compartment and control system

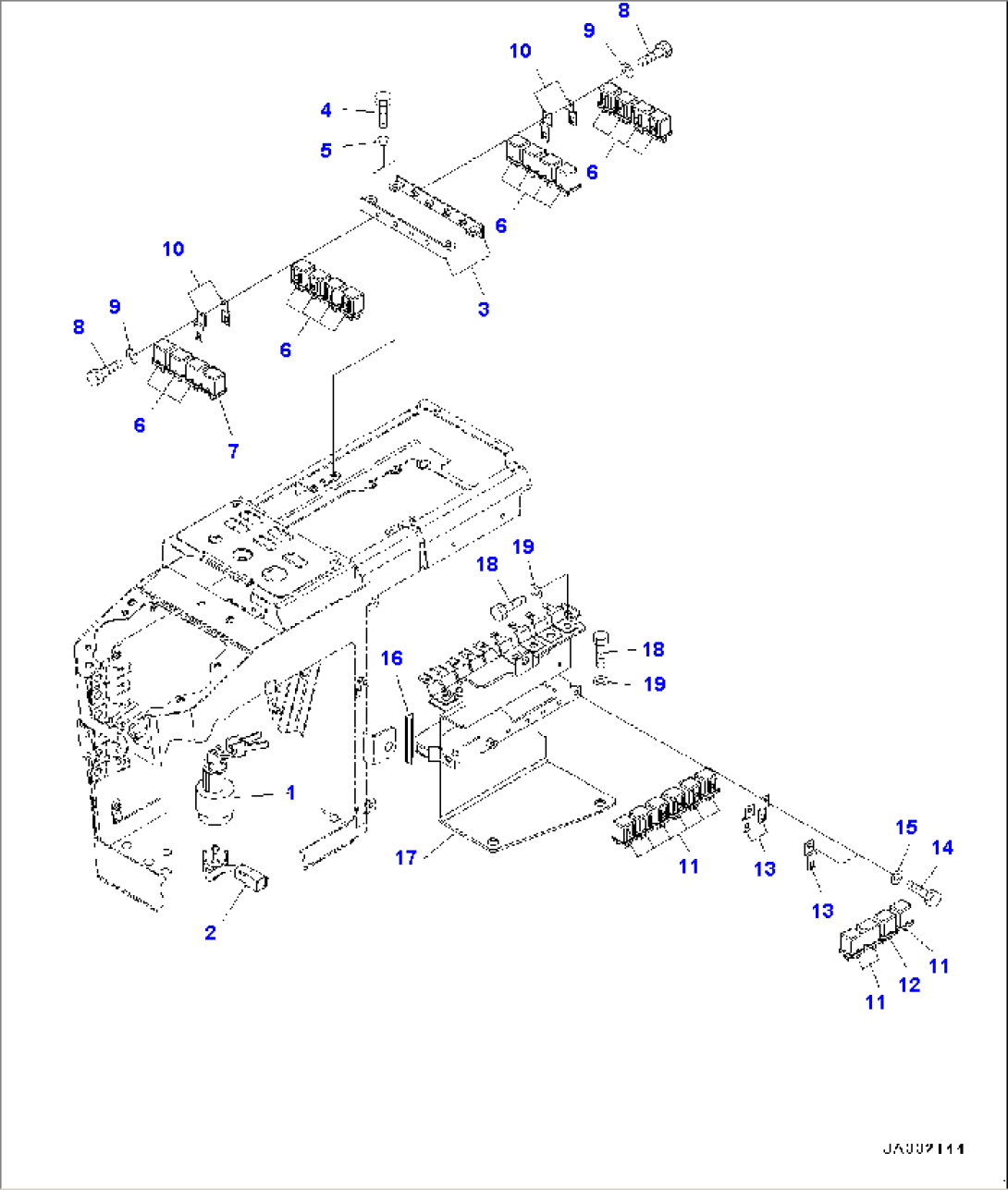

- Loader control unit, starting switch and relay
