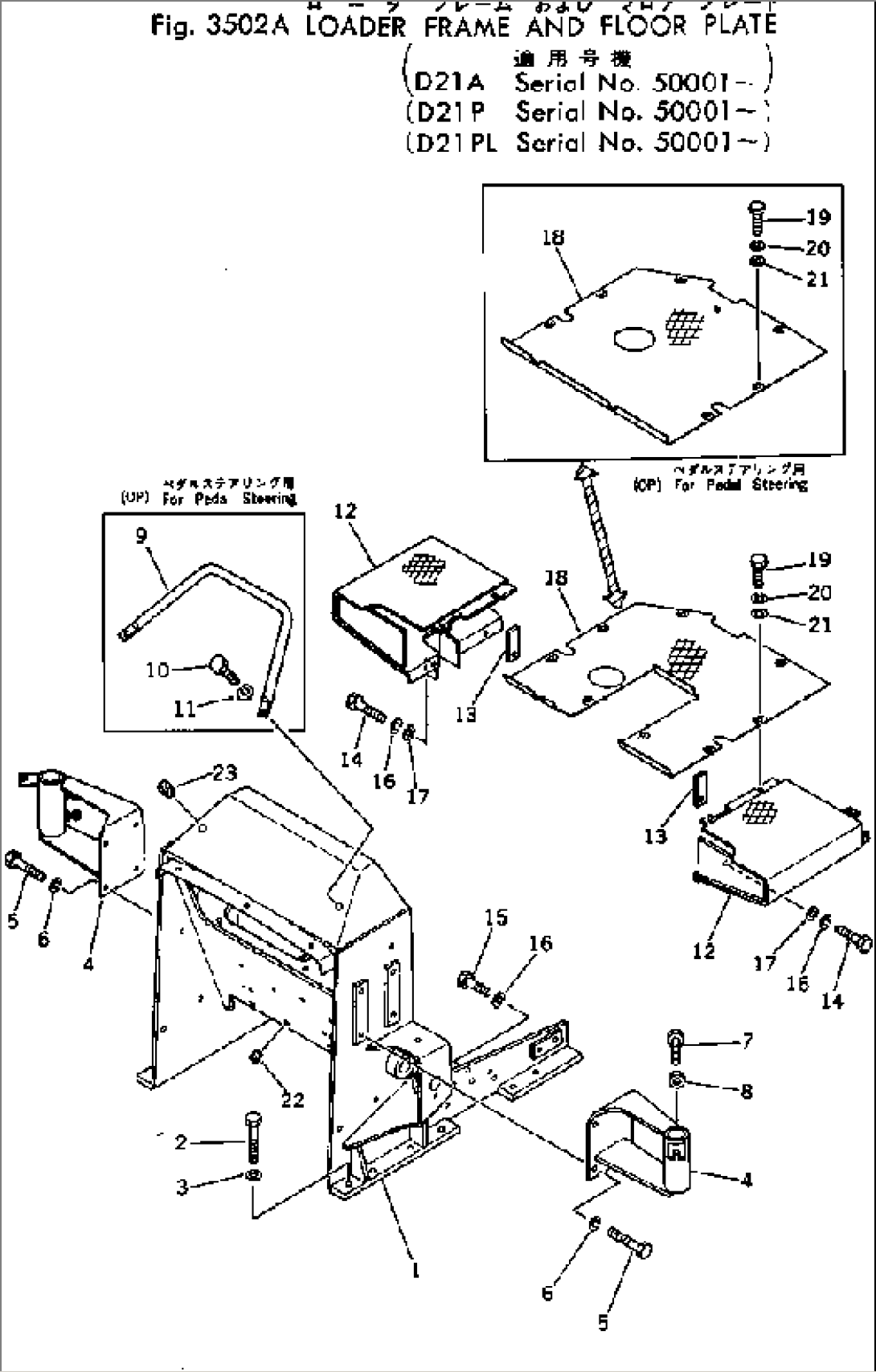

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 104-54-22113 | FRAME | | 45013- |
| 2 | 01010-31655 | BOLT | | 45013- |
| 3 | 01643-31645 | WASHER | | 45013- |
| 4 | 104-Z06-1131 | BRACKET,L.H. | | 45013- |
| 4 | 104-Z06-1140 | BRACKET,R.H. | | 45013- |
| 5 | 01010-31435 | BOLT | | 45013- |
| 6 | 01602-01442 | WASHER | | 45013- |
| 7 | 01016-31445 | BOLT | | 45013- |
| 8 | 01580-01411 | NUT | | 45013- |
| 9 | 103-54-21310 | HANDLE | | 45013-50000 |
| 9 | 103-54-21310 | HANDLE,(FOR PEDAL STEERING) | | 50001- |
| 10 | 01010-31435 | BOLT | | 45013-50000 |
| 10 | 01010-31435 | BOLT,(FOR PEDAL STEERING) | | 50001- |
| 11 | 01602-01442 | WASHER | | 45013-50000 |
| 11 | 01602-01442 | WASHER,(FOR PEDAL STEERING) | | 50001- |
| 12 | 104-54-23113 | FENDER,L.H. | | 50001- |
| 12 | 10G-54-13111 | FENDER,R.H. | | 50001- |
| 13 | 103-54-23160 | PLATE | | 50001- |
| 14 | 01010-31025 | BOLT | | 45013- |
| 15 | 01010-31035 | BOLT | | 45013- |
| 16 | 01602-01030 | WASHER | | 45013- |
| 17 | 01643-31032 | WASHER | | 45013- |
| 18 | 103-54-28111 | PLATE | | 50001- |
| 18 | 103-54-23113 | PLATE,(FOR PEDAL STEERING) | | 50001- |
| 19 | 01010-31025 | BOLT | | 50001- |
| 19 | 01010-31025 | BOLT,(FOR PEDAL STEERING) | | 50001- |
| 20 | 01602-01030 | WASHER | | 50001- |
| 20 | 01602-01030 | WASHER,(FOR PEDAL STEERING) | | 50001- |
| 21 | 01643-31032 | WASHER | | 50001- |
| 21 | 01643-31032 | WASHER,(FOR PEDAL STEERING) | | 50001- |
| 22 | 07049-01012 | PLUG,(FOR PEDAL STEERING) | | 50001- |
| 23 | 07049-01418 | PLUG | | 50001- |
