| Item | Part No. | Part Name | Qty | Serial No. |

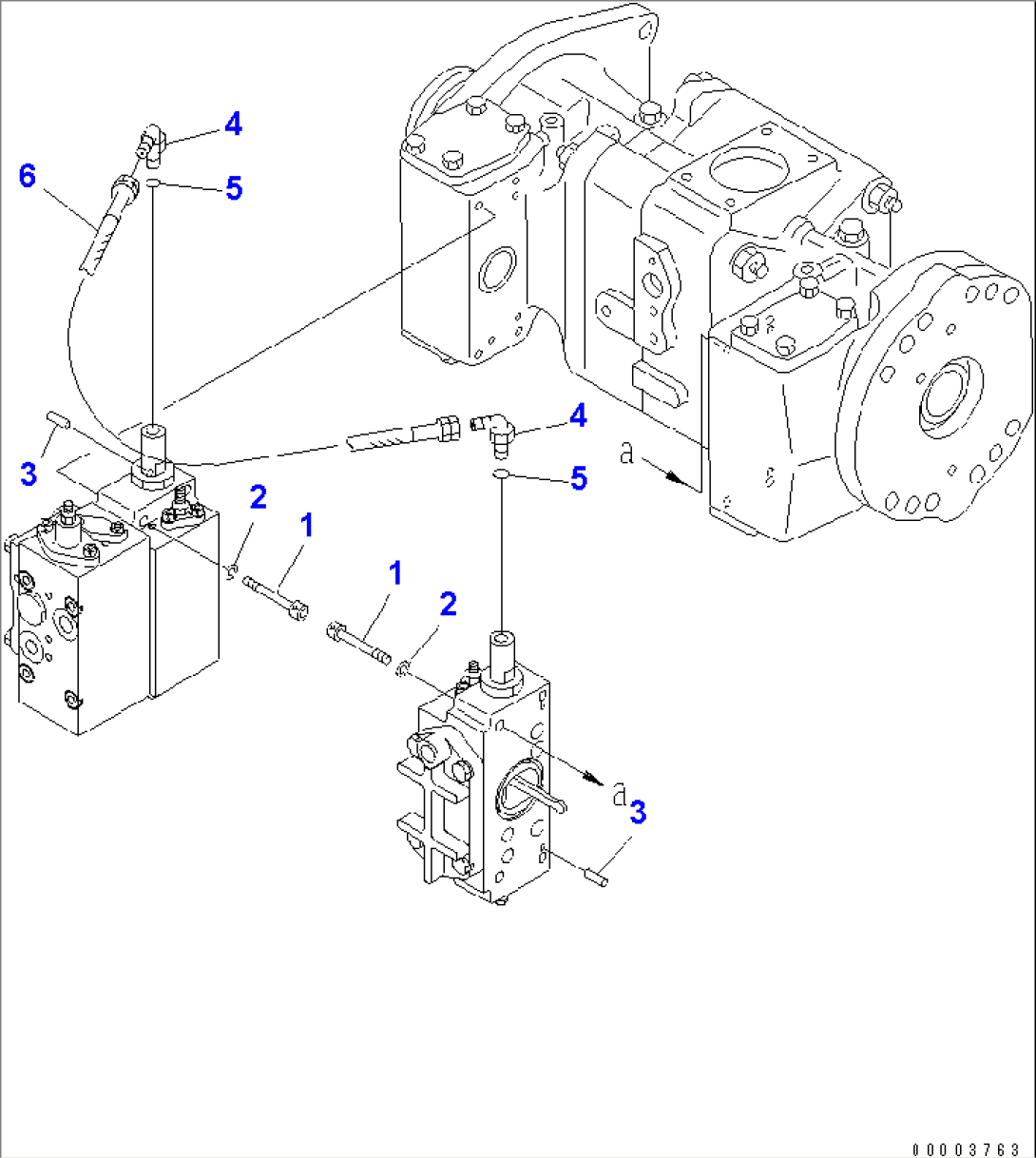

| (708-2L-00950) | PUMP ASS'Y | 52001- | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.Y1600-01A0 T0 Y1600-16A0. | ||||
| 1 | 708-25-19130 | BOLT | 52001- | |
| 2 | 01602-20825 | WASHER | 52001- | |
| 3 | 04020-00616 | PIN,DOWEL | 52001- | |
| 4 | 07235-10210 | ELBOW | 52001- | |
| 5 | 07002-21423 | O-RING | 52001- | |
| 6 | 07102-20203 | HOSE | 52001- |
