| Item | Part No. | Part Name | Qty | Serial No. |
| (708-2L-00950) | PUMP ASS'Y | 52001- | ||

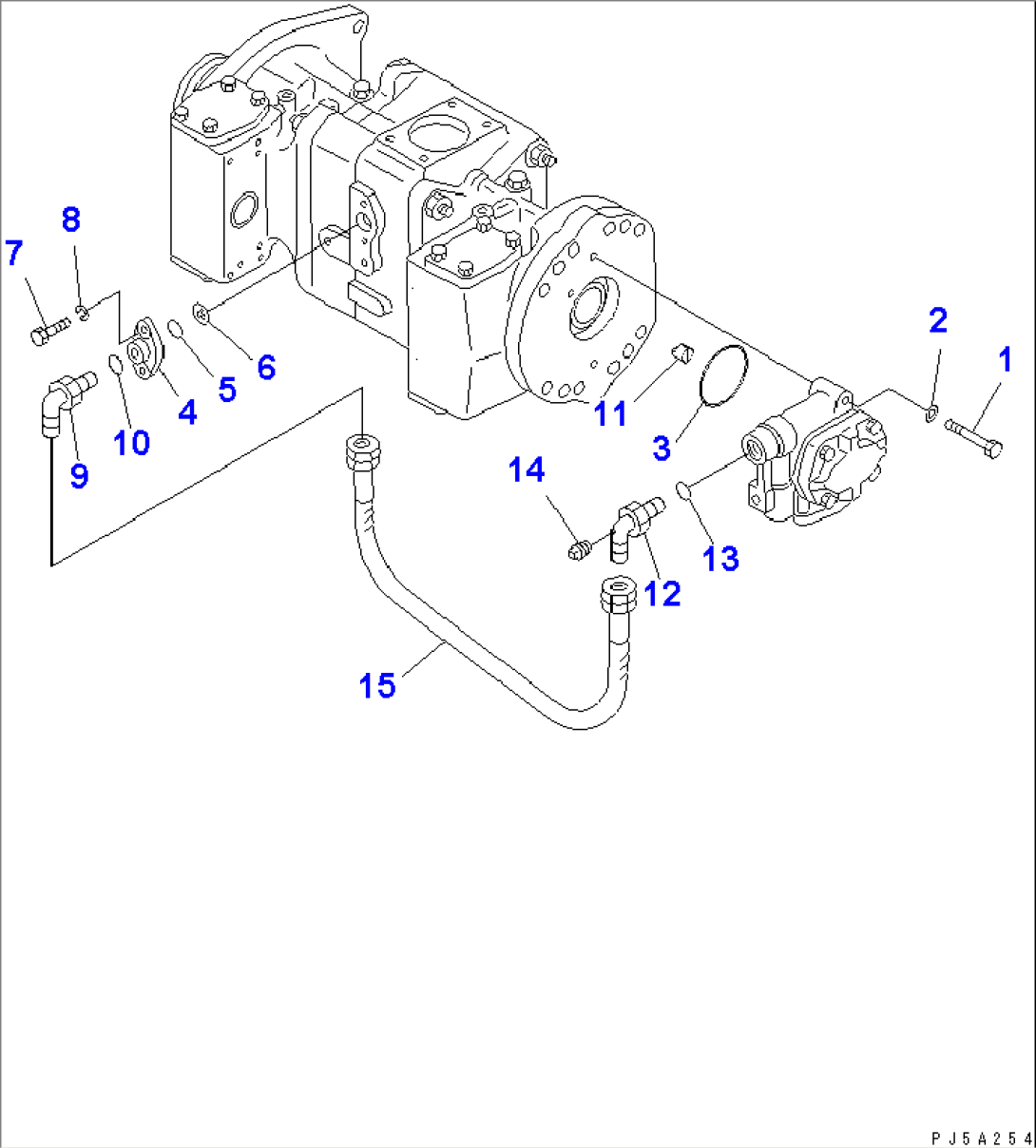

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.Y1600-01A0 T0 Y1600-16A0. | ||||
| 1 | 01010-81260 | BOLT | 52001- | |
| 2 | 01643-31232 | WASHER | 52001- | |
| 3 | 708-25-15730 | O-RING | 52001- | |
| 4 | 708-25-19120 | FLANGE | 52001- | |
| 5 | 07000-E2021 | O-RING | 52001- | |
| 6 | 720-68-15240 | FILTER | 52001- | |
| 7 | 01010-80820 | BOLT | 52001- | |
| 8 | 01643-50823 | WASHER | 52001- | |
| 9 | 07235-10422 | ELBOW | 52001- | |
| 10 | 07002-22034 | O-RING | 52001- | |
| 11 | 708-25-32730 | COUPLING | 52001- | |
| 12 | 07235-50425 | ELBOW | 52001- | |
| 13 | 07002-22434 | O-RING | 52001- | |
| 14 | 07042-20108 | PLUG | 52001- | |
| 15 | 07102-20405 | HOSE | 52001- |
