| Item | Part No. | Part Name | Qty | Serial No. |
| (708-1W-00882) | PUMP ASS'Y | 65546- | ||
| (708-1W-00881) | PUMP ASS'Y | 65464-65545 | ||
| (708-1W-00860) | PUMP ASS'Y | 65289-65463 | ||
| (708-1W-00830) | PUMP ASS'Y | 65001-65288 | ||

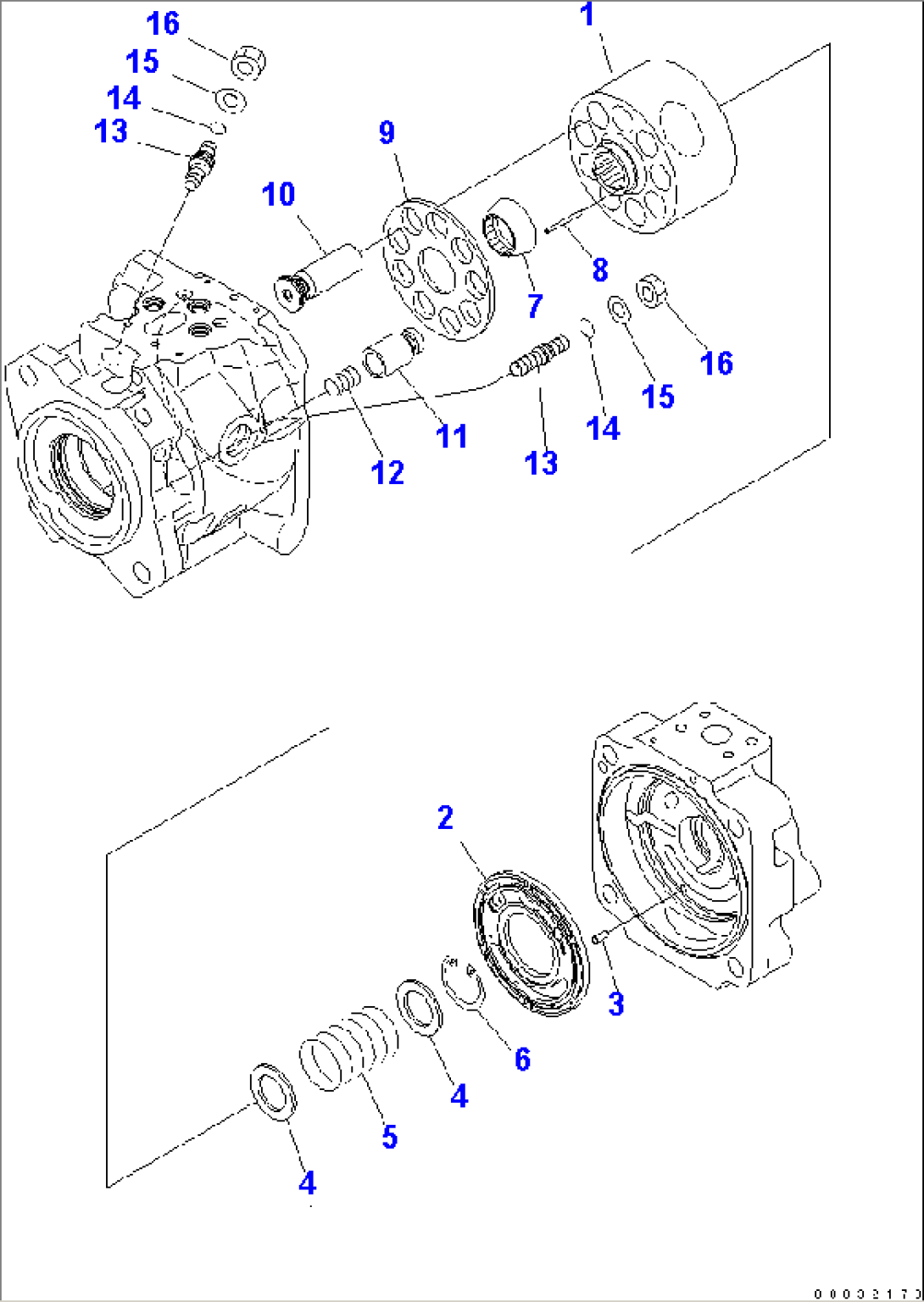

| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.Y1600-21A0 TO Y1600-24A0A . | ||||
| (708-1W-01882) | PUMP SUB ASS'Y | 65546- | ||
| (708-1W-01881) | PUMP SUB ASS'Y | 65464-65545 | ||
| (708-1W-01814) | PUMP SUB ASS'Y | 65289-65463 | ||
| (708-1W-01812) | PUMP SUB ASS'Y | 65001-65288 | ||
| 1 | (\7\708-1W-43310) | BLOCK,CYLINDER | 65001- | |
| 2 | (\7\708-1W-43210) | PLATE,VALVE | 65001- | |
| 3 | (\7\720-68-19610) | PIN | 65001- | |
| 4 | (\7\708-1W-43130) | SEAT | 65001- | |
| 5 | (\7\708-1W-43140) | SPRING | 65001- | |
| 6 | (\7\04065-04818) | RING | 65001- | |
| 7 | (\7\708-1W-43350) | GUIDE,RETAINER | 65001- | |
| 8 | (\7\708-3T-13360) | PIN | 65001- | |
| 9 | (\7\708-1W-43341) | RETAINER,SHOE | 65001- | |
| 10 | (\7\708-1U-13310) | PISTON SUB ASS'Y | 65001- | |
| 11 | (\7\708-1W-44120) | PISTON SUB ASS'Y | 65289- | |
| 11 | (\7\708-1W-44110) | PISTON SUB ASS'Y | 65001-65288 | |
| 12 | (\7\708-3T-14120) | SPRING | 65001- | |
| 13 | (\7\708-1U-14240) | SCREW | 65546- | |
| 13 | (\7\708-1U-14221) | SCREW | 65001-65545 | |
| 14 | 07000-12011 | O-RING | 65001- | |
| 15 | 01643-31232 | WASHER | 65001- | |
| 16 | 01582-11210 | NUT | 65001- |
