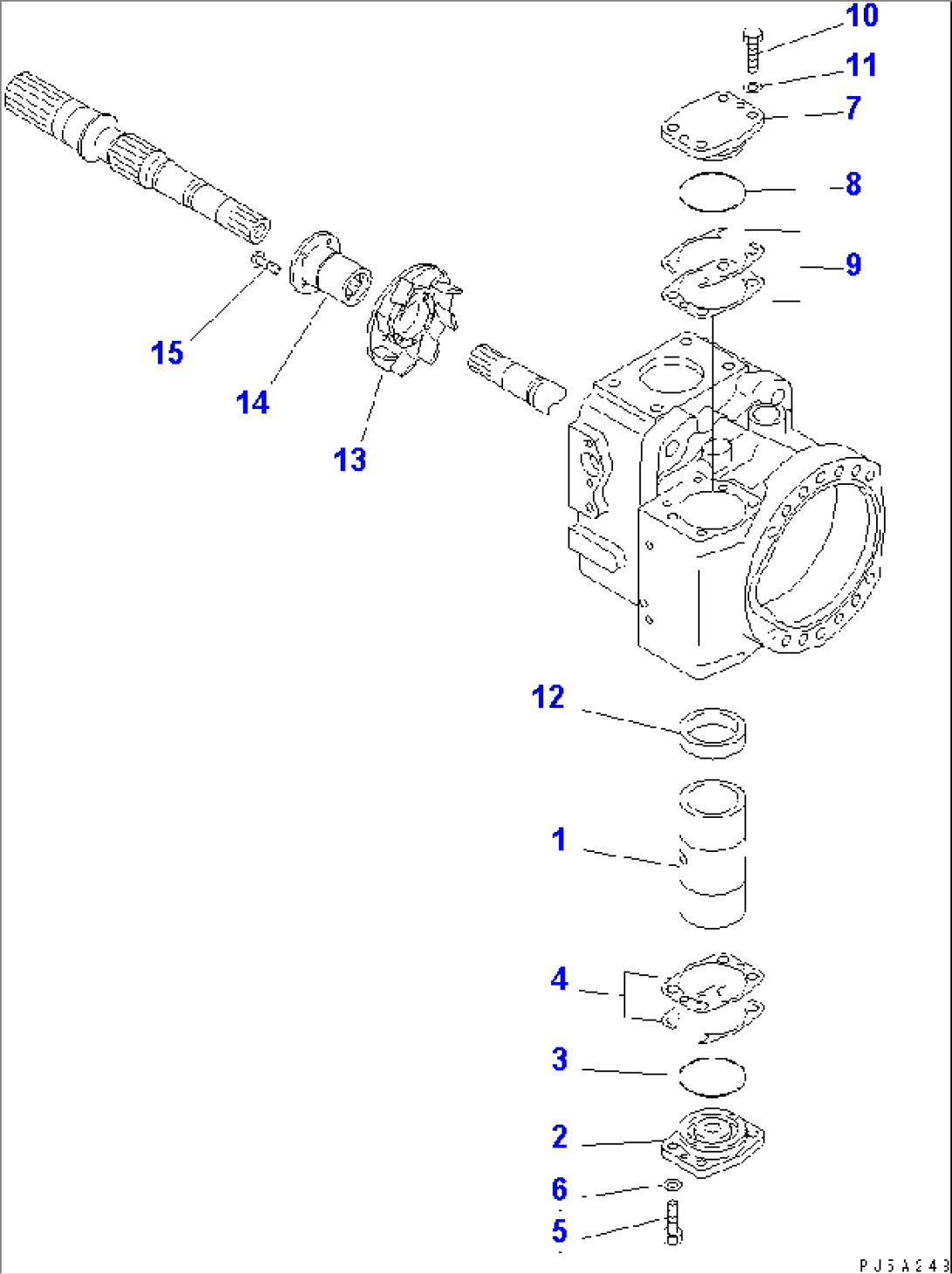

| Item | Part No. | Part Name | Qty | Serial No. |
| (708-2L-00380) | PUMP ASS'Y | 51001- | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.Y1600-41B0 T0 Y1600-54B0. | ||||
| (708-2L-01960) | PUMP SUB ASS'Y | 51001- | ||
| 1 | (\7\708-25-14211) | PISTON | 51001- | |
| 2 | (\7\708-25-14140) | CAP | 51001- | |
| 3 | 07000-E2065 | O-RING | 51001- | |
| 4 | (\7\708-25-05050) | SHIM KIT | 51001- | |
| 4 | \6\ | SHIM, 0.5MM | 51001- | |
| 4 | \6\ | SHIM, 0.2MM | 51001- | |
| 4 | \6\ | SHIM, 0.1MM | 51001- | |
| 4 | \6\ | SHIM, 0.1MM | 51001- | |
| 5 | 01016-51035 | BOLT | 51001- | |
| 6 | 01643-31032 | WASHER | 51001- | |
| 7 | (\7\708-25-64150) | CAP | 51001- | |
| 8 | 07000-E2065 | O-RING | 51001- | |
| 9 | (\7\708-25-05050) | SHIM KIT | 51001- | |
| 9 | \6\ | SHIM, 0.5MM | 51001- | |
| 9 | \6\ | SHIM, 0.2MM | 51001- | |
| 9 | \6\ | SHIM, 0.1MM | 51001- | |
| 9 | \6\ | SHIM, 0.1MM | 51001- | |
| 10 | 01016-51035 | BOLT | 51001- | |
| 11 | 01643-31032 | WASHER | 51001- | |
| 12 | (\7\708-45-14370) | COLLAR | 51001- | |
| 13 | (\7\708-25-12542) | IMPELLER | 51001- | |
| 14 | (\7\708-25-52550) | COUPLING | 51001- | |
| 15 | (\7\706-73-42270) | SCREW | 51001- |
