| Item | Part No. | Part Name | Qty | Serial No. |
| (708-25-02044) | PUMP ASS'Y | 10001- | ||
| (\2\708-25-02043) | PUMP ASS'Y | (10056-10530) | ||
| (\2\708-25-02042) | PUMP ASS'Y | (10049-10055) | ||
| (\2\708-25-02041) | PUMP ASS'Y | (...-10048) | ||
| (\2\708-25-02040) | PUMP ASS'Y | (..-...) | ||
| (\2\708-25-60101) | PUMP ASS'Y | (.-..) | ||
| (\2\708-25-60100) | PUMP ASS'Y | (10001-.) | ||
| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.6001 TO 6011. | ||||

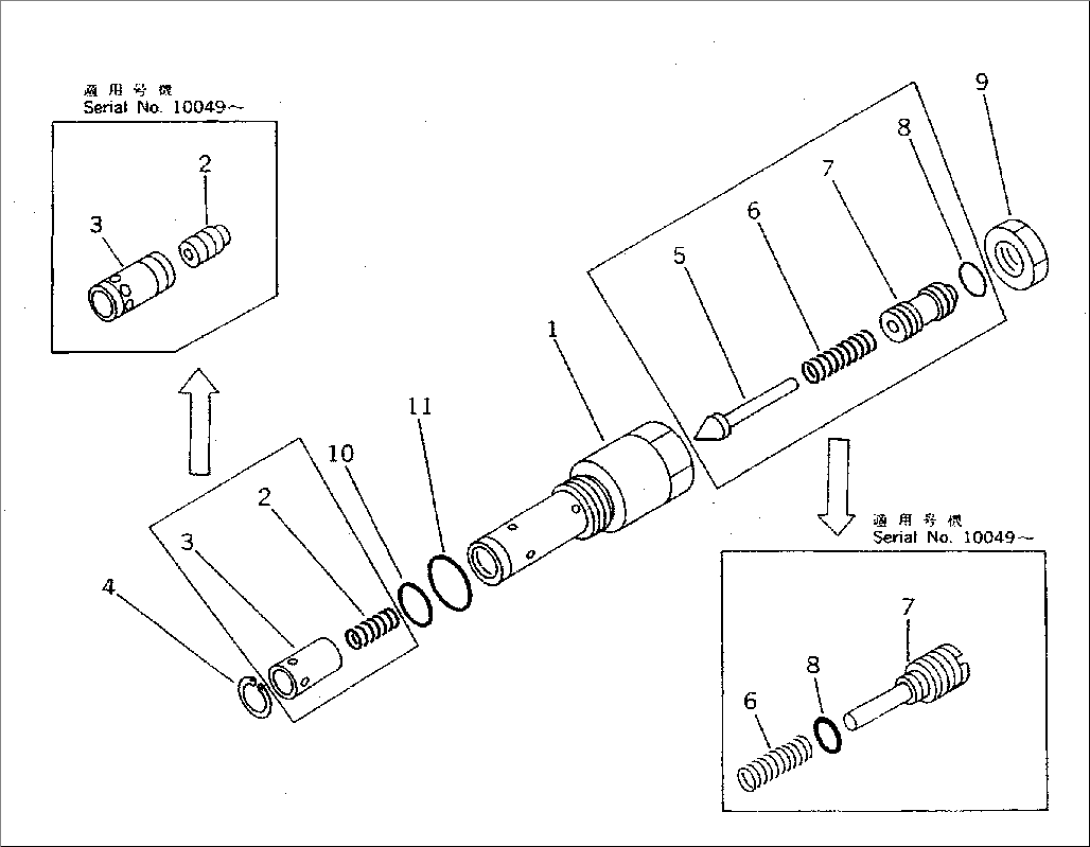

| 708-25-64900 | VALVE ASS'Y,RELIEF | 10001- | ||
| (\2\708-23-14801) | VALVE ASS'Y,RELIEF | (.-10048) | ||
| (\2\708-23-14800) | VALVE ASS'Y,RELIEF | (10001-.) | ||
| 1 | 708-23-14810 | SLEEVE | 10049- | |
| \6\ | SLEEVE | 10001-10048 | ||
| 2 | 708-23-14850 | PISTON | 10049- | |
| \6\ | SPRING | 10001-10048 | ||
| 3 | 708-23-14830 | VALVE | 10049- | |
| \6\ | VALVE | 10001-10048 | ||
| 4 | 708-23-14820 | RING,SNAP | 10049- | |
| \6\ | RING,SNAP | 10001-10048 | ||
| 5 | 700-80-61190 | POPPET | 10001-10048 | |
| 6 | 708-23-14840 | SPRING | 10049- | |
| \6\ | SPRING | 10001-10048 | ||
| 7 | 708-23-14860 | SCREW | 10049- | |
| \6\ | SCREW | 10001-10048 | ||
| 8 | 07000-32010 | O-RING | 10001- | |
| (\2\07000-02011) | O-RING | (10001-10048) | ||
| 9 | 706-23-75350 | NUT | 10049- | |
| \6\ | NUT | 10001-10048 | ||
| 10 | 708-25-64910 | O-RING | 10049- | |
| \6\ | O-RING | 10001-10048 | ||
| 11 | 07002-32434 | O-RING | 10049- | |
| \0\07002-02434 | O-RING | 10001-10048 |
