| Item | Part No. | Part Name | Qty | Serial No. |
| (708-25-03042) | PUMP ASS'Y | 10001- | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.6001 TO 6009. | ||||

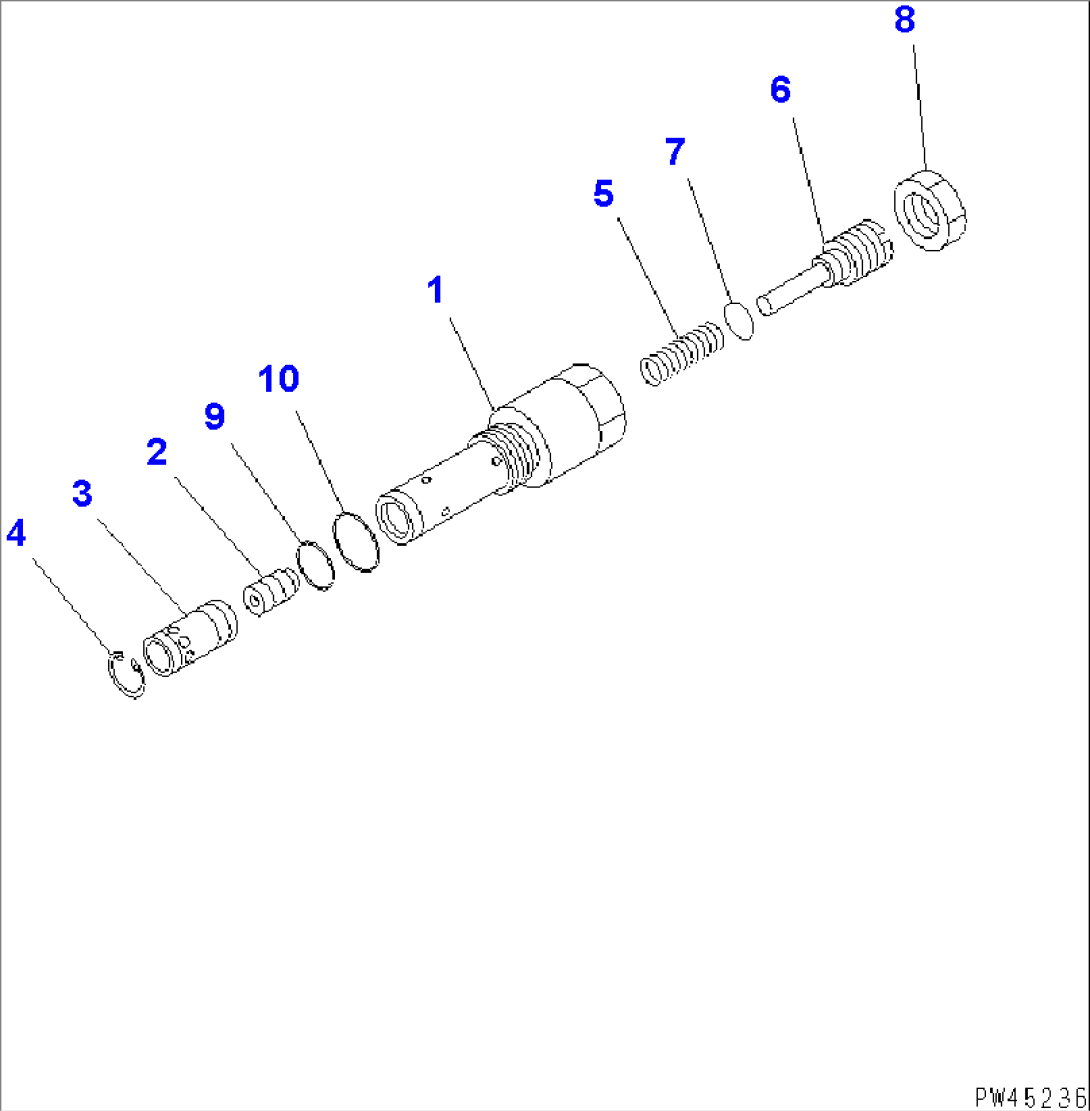

| 708-25-64900 | VALVE ASS'Y,RELIEF | 10001- | ||
| 1 | 708-23-14810 | SLEEVE | 10001- | |
| 2 | 708-23-14850 | PISTON | 10001- | |
| 3 | 708-23-14830 | VALVE | 10001- | |
| 4 | 708-23-14820 | RING,SNAP | 10001- | |
| 5 | 708-23-14840 | SPRING | 10001- | |
| 6 | 708-23-14860 | SCREW | 10001- | |
| 7 | 07000-32010 | O-RING | 10001- | |
| 8 | 706-73-75350 | NUT | 10001- | |
| 9 | 708-25-64910 | O-RING | 10001- | |
| 10 | 07002-32434 | O-RING | 10001- |
