| Item | Part No. | Part Name | Qty | Serial No. |
| (708-25-02044) | PUMP ASS'Y | 10001- | ||
| (\2\708-25-02043) | PUMP ASS'Y | (10056-10530) | ||
| (\2\708-25-02042) | PUMP ASS'Y | (10049-10055) | ||
| (\2\708-25-02041) | PUMP ASS'Y | (...-10048) | ||
| (\2\708-25-02040) | PUMP ASS'Y | (..-...) | ||
| (\2\708-25-60101) | PUMP ASS'Y | (.-..) | ||
| (\2\708-25-60100) | PUMP ASS'Y | (10001-.) | ||
| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.6001 TO 6011. | ||||

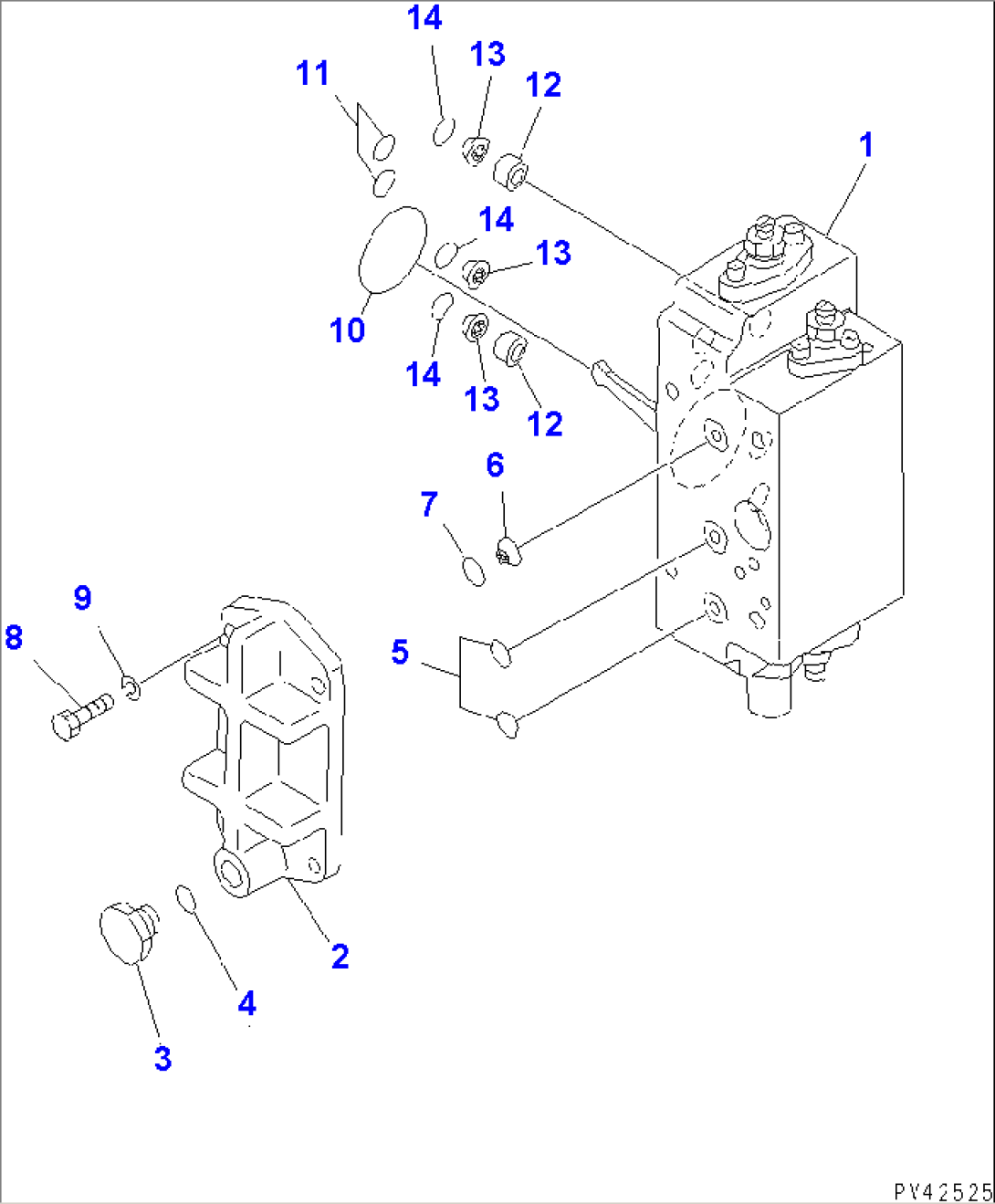

| 708-25-66101 | SERVO VALVE ASS'Y,REAR | 10001- | ||
| (\2\708-25-66100) | SERVO VALVE ASS'Y,REAR | (10001-10048) | ||
| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.6010 TO 6011. | ||||
| 1 | (708-25-66201) | SERVO VALVE SUB A. | 10001- | |
| (\2\708-25-66200) | VALVE SUB ASS'Y,SERVO | (10001-10048) | ||
| 2 | 708-25-55110 | PLATE | 10001- | |
| 3 | 07040-11409 | PLUG | 10001- | |
| 4 | 07002-31423 | O-RING | 10001- | |
| (\2\07002-01423) | O-RING | (10001-10048) | ||
| 5 | 07000-32011 | O-RING | 10001- | |
| (\2\07000-02011) | O-RING | (10001-10048) | ||
| 6 | 708-25-65190 | PLUG | 10001- | |
| 7 | 07000-22010 | O-RING | 10001- | |
| (\2\07000-12010) | O-RING | (10001-10048) | ||
| 8 | 01010-30825 | BOLT | 10001- | |
| 9 | 01602-20825 | WASHER,SPRING | 10001- | |
| 10 | 07000-33048 | O-RING | 10001- | |
| (\2\07000-03048) | O-RING | (10001-10048) | ||
| 11 | 07000-21009 | O-RING | 10001- | |
| (\2\07000-11009) | O-RING | (10001-10048) | ||
| 12 | 708-25-19150 | ORIFICE | 10001- | |
| 13 | 720-68-11920 | FILTER | 10001- | |
| 14 | 07000-22010 | O-RING | 10001- | |
| (\2\07000-12010) | O-RING | (10001-10048) |
