| Item | Part No. | Part Name | Qty | Serial No. |
| (708-25-02044) | PUMP ASS'Y | 10001- | ||
| (\2\708-25-02043) | PUMP ASS'Y | (10056-10530) | ||
| (\2\708-25-02042) | PUMP ASS'Y | (10049-10055) | ||
| (\2\708-25-02041) | PUMP ASS'Y | (...-10048) | ||
| (\2\708-25-02040) | PUMP ASS'Y | (..-...) | ||
| (\2\708-25-60101) | PUMP ASS'Y | (.-..) | ||
| (\2\708-25-60100) | PUMP ASS'Y | (10001-.) | ||
| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.6001 TO 6011. | ||||
| 708-25-66101 | SERVO VALVE ASS'Y,REAR | 10001- | ||
| (\2\708-25-66100) | SERVO VALVE ASS'Y,REAR | (10001-10048) | ||
| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.6010 TO 6011. | ||||

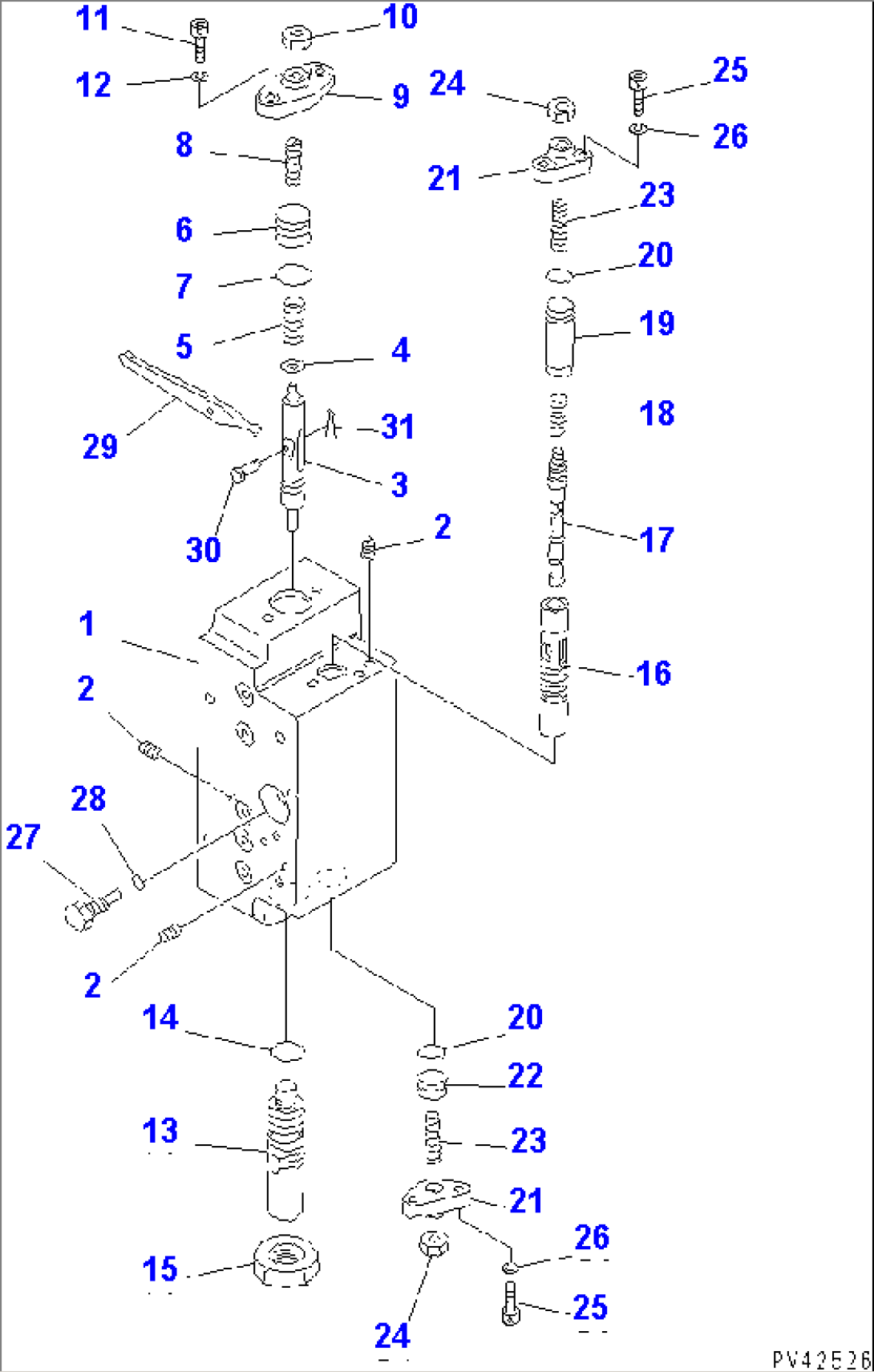

| 708-25-66201 | SERVO VALVE SUB A. | 10001- | ||
| (\2\708-25-66200) | VALVE SUB ASS'Y,SERVO | (10001-10048) | ||
| (\7\708-23-07021) | BODY ASS'Y | 10001- | ||
| 1 | \6\ | BODY | 10001- | |
| 2 | \6\ | EXPANDER | 10001- | |
| 3 | (\7\708-25-15120) | PISTON | 10001- | |
| 4 | (\7\708-25-15130) | SEAT | 10001- | |
| 5 | (\7\708-25-15140) | SPRING | 10001- | |
| 6 | (\7\708-25-15420) | PLUG | 10001- | |
| 7 | (\7\07000-32018) | O-RING | 10001- | |
| (\2\07000-02018) | O-RING | (10001-10048) | ||
| 8 | (\7\708-25-15340) | SCREW | 10001- | |
| 9 | (\7\708-25-15150) | COVER | 10001- | |
| 10 | (\7\01580-10806) | NUT | 10001- | |
| 11 | (\7\708-25-15320) | BOLT | 10001- | |
| 12 | (\7\01602-20619) | WASHER,SPRING | 10001- | |
| 13 | (\7\708-25-65170) | PLUG | 10001- | |
| 14 | (\7\07002-32034) | O-RING | 10001- | |
| (\2\07002-02034) | O-RING | (10001-10048) | ||
| 15 | (\7\07239-12009) | NUT | 10001- | |
| 16 | (\7\708-25-15180) | SLEEVE | 10001- | |
| 17 | (\7\708-25-15280) | SPOOL | 10001- | |
| 18 | (\7\708-25-15310) | SPRING | 10001- | |
| 19 | (\7\708-25-15330) | SPACER | 10001- | |
| 20 | (\7\07000-32012) | O-RING | 10001- | |
| (\2\07000-02012) | O-RING | (10001-10048) | ||
| 21 | (\7\708-25-15250) | COVER | 10001- | |
| 22 | (\7\708-25-15430) | PLUG | 10001- | |
| 23 | (\7\708-25-15340) | SCREW | 10001- | |
| 24 | (\7\01580-10806) | NUT | 10001- | |
| 25 | (\7\708-25-15320) | BOLT | 10001- | |
| 26 | (\7\01602-20619) | WASHER,SPRING | 10001- | |
| 27 | (\7\708-25-15260) | PLUG | 10001- | |
| 28 | (\7\07002-30823) | O-RING | 10001- | |
| (\2\07002-00823) | O-RING | (10001-10048) | ||
| 29 | (\7\708-25-15270) | ARM | 10001- | |
| 30 | (\7\04205-00514) | PIN | 10001- | |
| 31 | (\7\04050-01210) | PIN,COTTER | 10001- |
