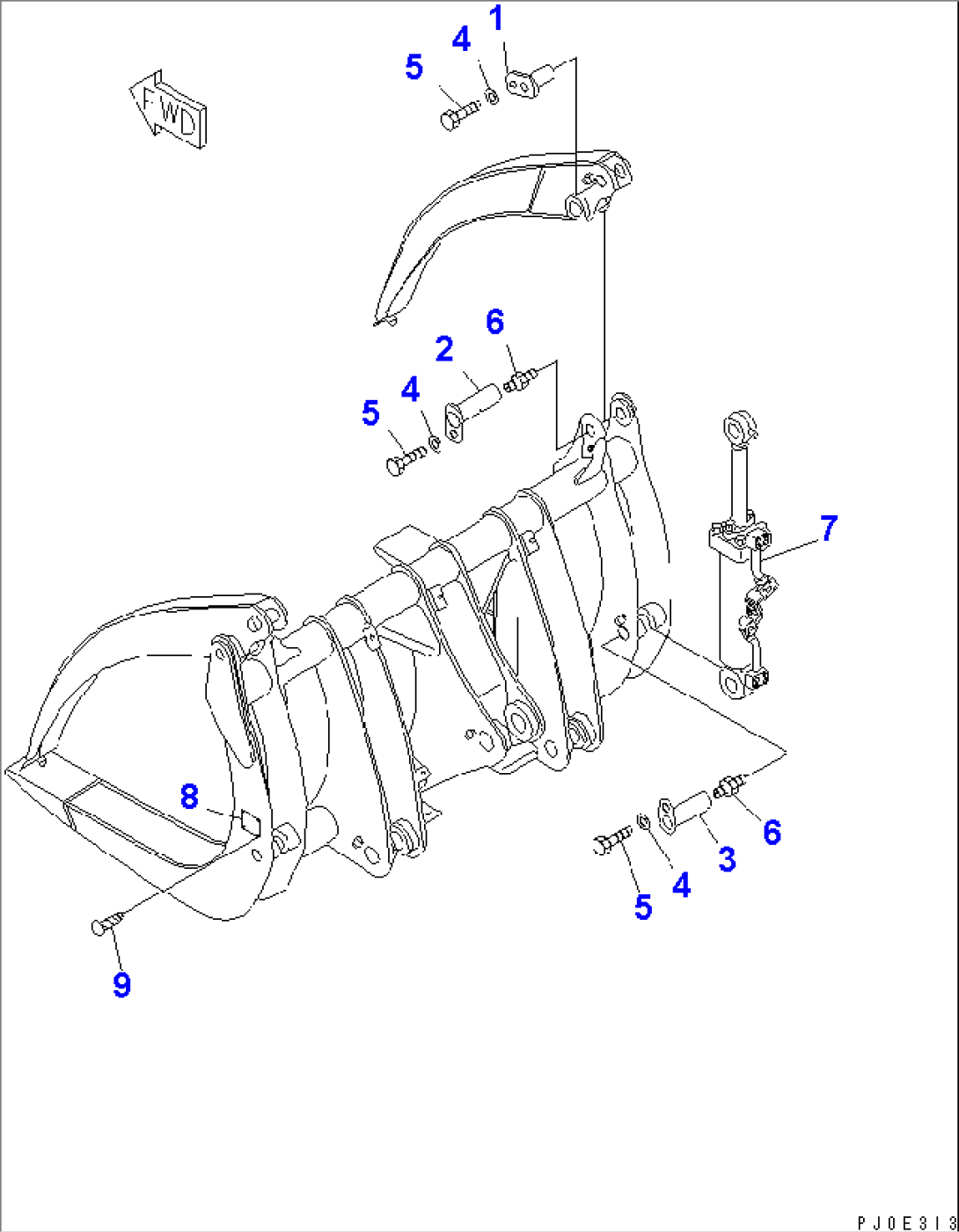

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 424-880-1170 | PIN | 53001- | |
| 2 | 424-880-1140 | PIN | 53001- | |
| 3 | 424-880-1150 | PIN | 53001- | |
| 4 | 421-70-11280 | WASHER | 53001- | |
| 5 | 01010-81625 | BOLT | 53001- | |
| 6 | 07020-00000 | FITTING,GREASE | 53001- | |
| 7 | (707-01-X7190) | CYLINDER GROUP,LOG GRAPPLE, L.H. | 54101- | |
| 7 | (707-01-X7200) | CYLINDER GROUP,LOG GRAPPLE, R.H. | 54101- | |
| 8 | 09601-60000 | PLATE, NAME | 54101- | |
| 9 | 04418-13060 | SCREW | 54101- |
