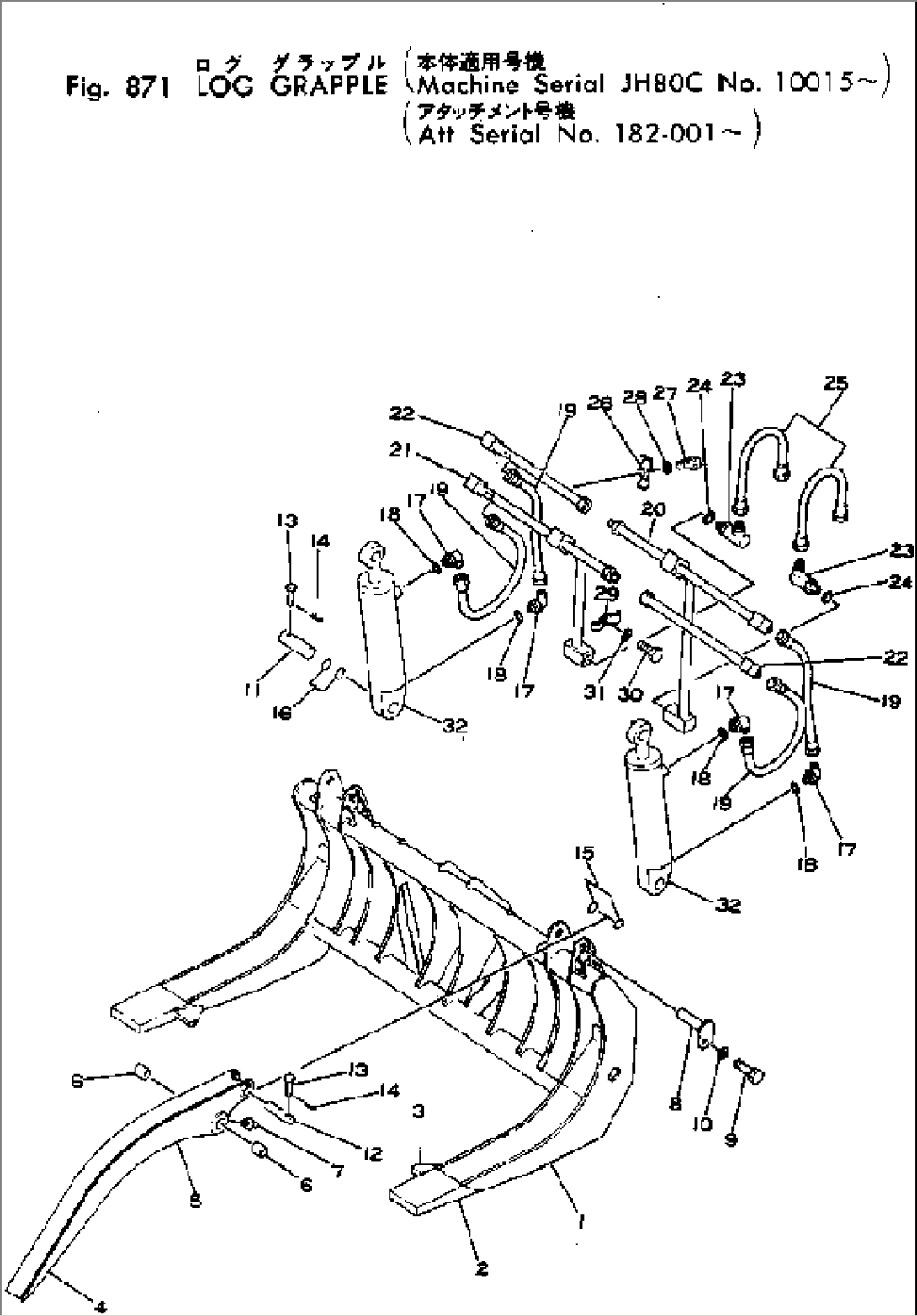

| Item | Part No. | Part Name | Qty | Serial No. |
| 385-10204361 | LOG GRAPPLE ASS'Y | (005)- | ||
| \0\385-10124101 | LOG GRAPPLE ASS'Y | (001)-(004) | ||
| 1 | 385-10204351 | FORK ASS'Y | (005)- | |
| \0\385-10124111 | FORK ASS'Y | (001)-(004) | ||
| 2 | 381-897574-2 | FORK | (001)- | |
| 3 | 385-10124241 | STOPPER | (001)- | |
| 385-10124271 | ARM ASS'Y | (001)- | ||
| 5 | 385-10124281 | ARM | (001)- | |
| 6 | 380-172195-1 | BUSHING | (001)- | |
| 7 | 380-119692-1 | FITTING | (001)- | |
| 8 | 381-970701-1 | PIN | (001)- | |
| 9 | 382-024884-1 | BOLT | (001)- | |
| 10 | 382-025557-1 | WASHER | (001)- | |
| 11 | 381-970989-2 | PIN | (001)- | |
| 12 | 380-889614-1 | PIN | (001)- | |
| 13 | 380-215860-1 | PIN | (001)- | |
| 14 | 380-CP47-000 | PIN | (001)- | |
| 15 | 380-199934-1 | RING | (001)- | |
| 16 | 380-160529-1 | RING | (001)- | |
| 17 | 384-9410978 | ELBOW | (001)- | |
| 18 | 381-876107-1 | O-RING | (001)- | |
| 19 | 380-889805-1 | HOSE | (001)- | |
| 20 | 385-10204791 | TUBE | (005)- | |
| 385-10124481 | TUBE | (001)-(004) | ||
| 21 | 385-10204801 | TUBE | (005)- | |
| 385-10124491 | TUBE | (001)-(004) | ||
| 22 | 385-10204781 | TUBE | (005)- | |
| 385-10124471 | TUBE | (001)-(004) | ||
| 23 | 381-897003-1 | SWIVEL ASS'Y | (001)- | |
| 24 | 381-876110-1 | O-RING | (001)- | |
| 25 | 381-988468-1 | HOSE | (001)- | |
| 26 | 381-897432-1 | CLAMP | (001)- | |
| 27 | 382-025773-1 | BOLT | (001)- | |
| 28 | 380-131099-0 | WASHER | (001)- | |
| 29 | 381-898988-1 | CLAMP | (001)- | |
| 30 | 382-024842-1 | BOLT | (001)- | |
| 31 | 380-131099-0 | WASHER | (001)- | |
| 32 | (381-983359-2) | CYLINDER ASS'Y | (.)- | |
| \0\381-983359-1 | CYLINDER ASS'Y | (001)-(.) |
