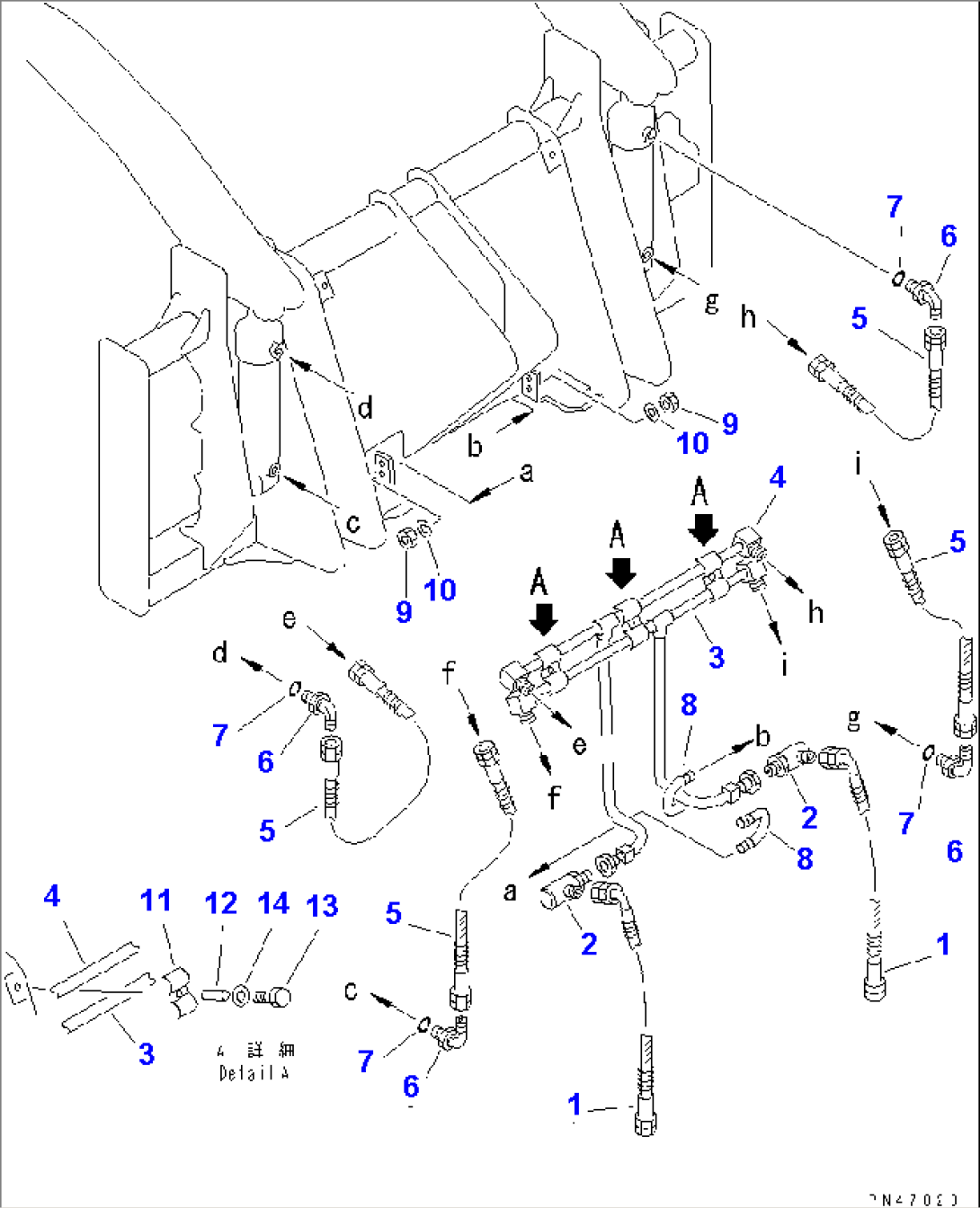

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 417-881-1180 | HOSE | 50001- | |
| 2 | 07129-10400 | JOINT | 50001- | |
| 3 | 417-881-1120 | TUBE | 50001- | |
| 4 | 417-881-1130 | TUBE | 50001- | |
| 5 | 07123-20305 | HOSE | 50001- | |
| 6 | 07235-10315 | ELBOW | 50001- | |
| 7 | 07002-12034 | O-RING | 50001- | |
| 8 | 07283-22236 | CLIP | 50001- | |
| 9 | 01599-01011 | NUT | 50001- | |
| 10 | 01643-31032 | WASHER | 50001- | |
| 11 | 112-901-1250 | CLAMP | 50001- | |
| 12 | 417-823-1460 | SPACER | 50001- | |
| 13 | 01010-31035 | BOLT | 50001- | |
| 14 | 01643-31032 | WASHER | 50001- |
