| Item | Part No. | Part Name | Qty | Serial No. |

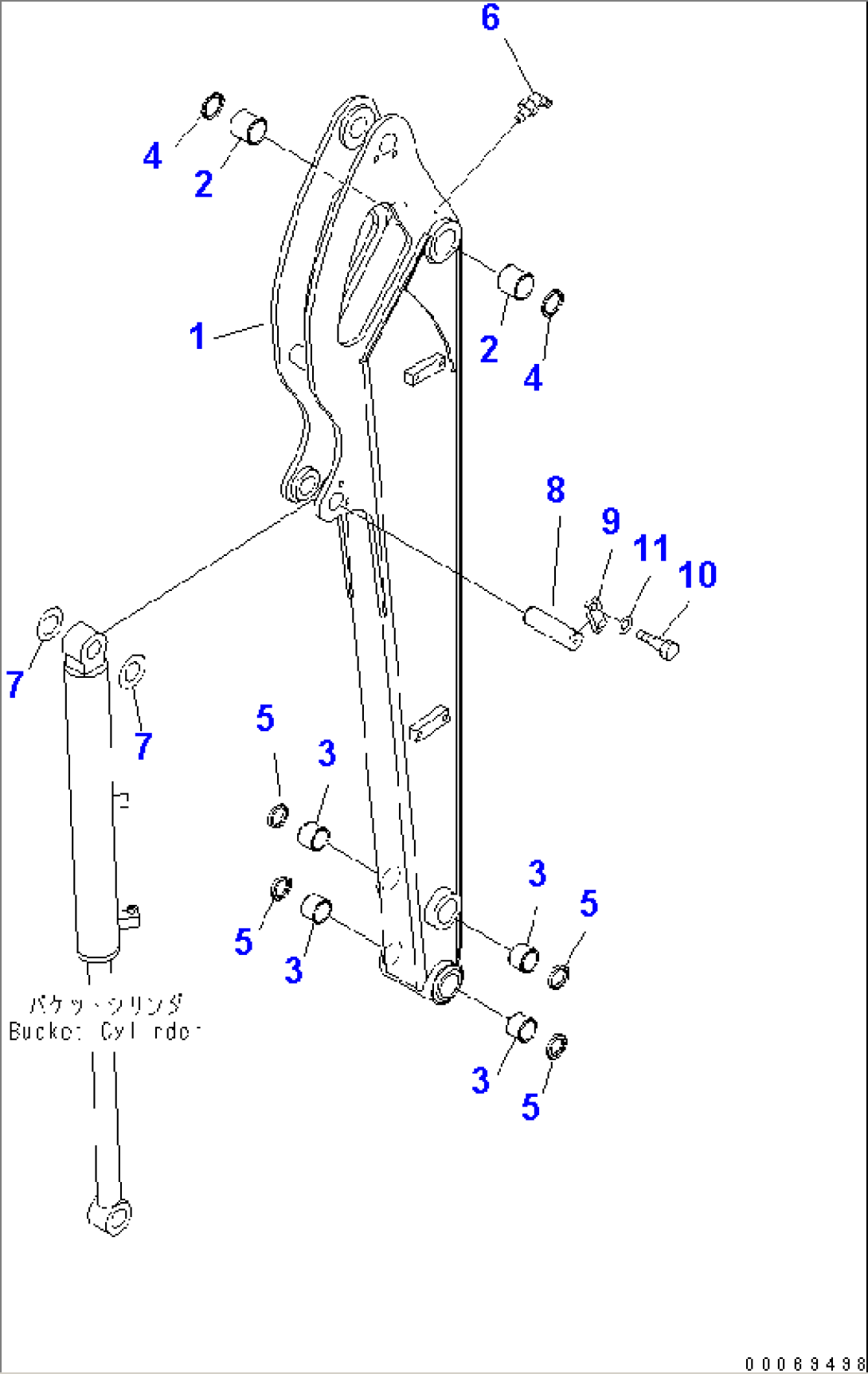

| 22L-943-3101 | ARM ASS'Y | 30001- | ||
| 1 | \6\ | ARM | 30001- | |
| 2 | 22F-70-32820 | BUSHING | 30001- | |
| 3 | 22F-70-31630 | BUSHING | 30001- | |
| 4 | 07145-00040 | SEAL | 30001- | |
| 5 | 22L-70-21550 | SEAL | 30001- | |
| 6 | 07020-00675 | FITTING | 30001- | |
| 7 | 20N-70-41270 | SPACER¤ 1.0MM | 30001- | |
| 21U-70-11740 | SPACER¤ 1.0MM | 30001- | ||
| 8 | 22L-70-21561 | PIN | 30001- | |
| 9 | 04082-00212 | LOCK | 30001- | |
| 10 | 01010-81230 | BOLT | 30001- | |
| 11 | 01643-31232 | WASHER | 30001- |
