| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 425-803-2110 | BUCKET | 50001- | |
| 2 | 425-70-12321 | EDGE (WELDED) | 50001- | |
| 3 | 425-803-2120 | PLATE (WELDED) | 50001- | |
| 4 | 425-803-2180 | PLATE (WELDED) | 50001- | |
| 5 | 425-70-12141 | PLATE (WELDED) | 50001- |
- Главная
- Каталог запчастей
- Колесные погрузчики
- Wa500 3 s/n 50001 up
- Work equipment
- Loose material bucket (5.2m3) (5.5m3¤ with bolt on edge)
Поиск по каталогу

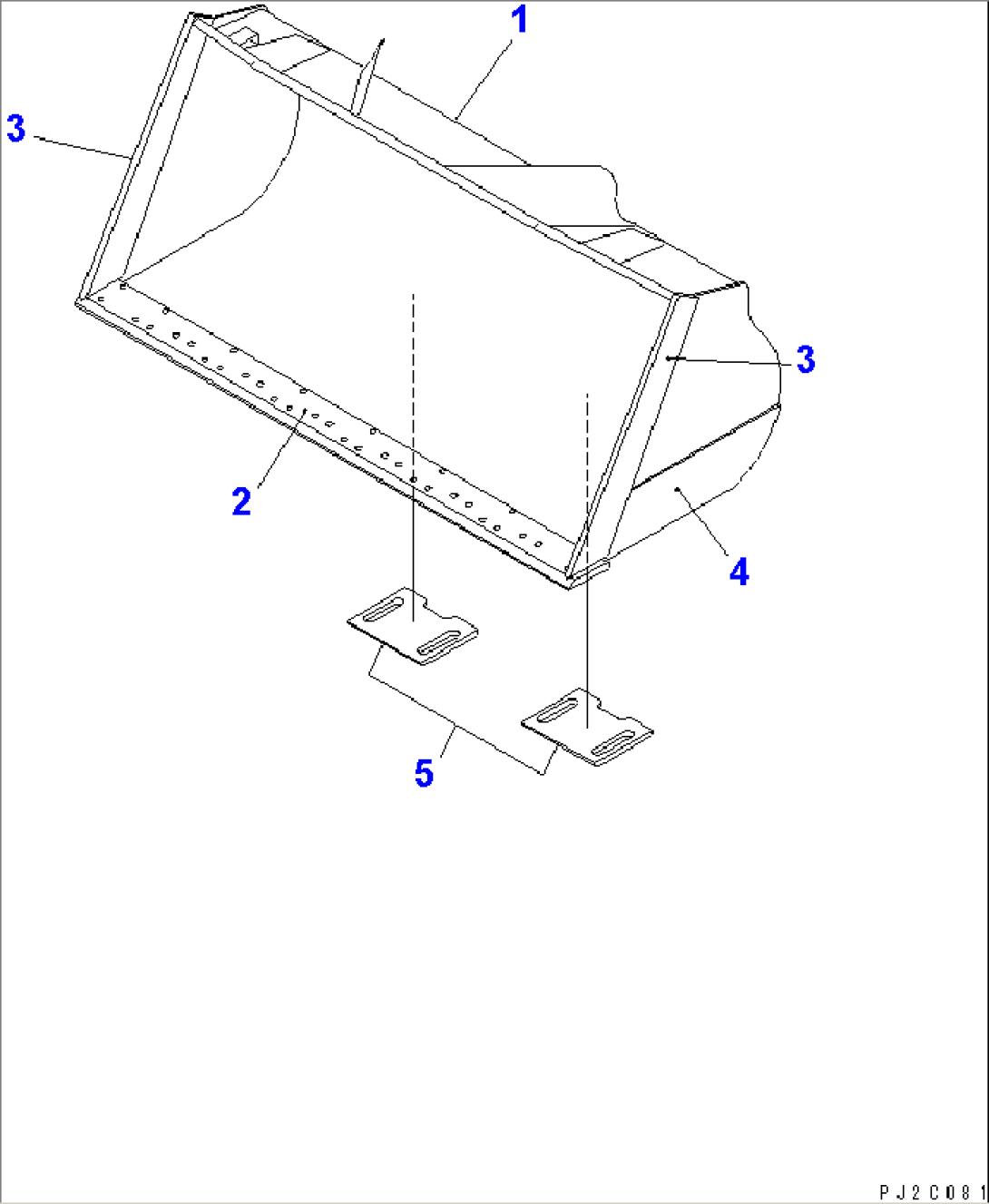

LOOSE MATERIAL BUCKET (5.2M3) (5.5M3¤ WITH BOLT ON EDGE)
