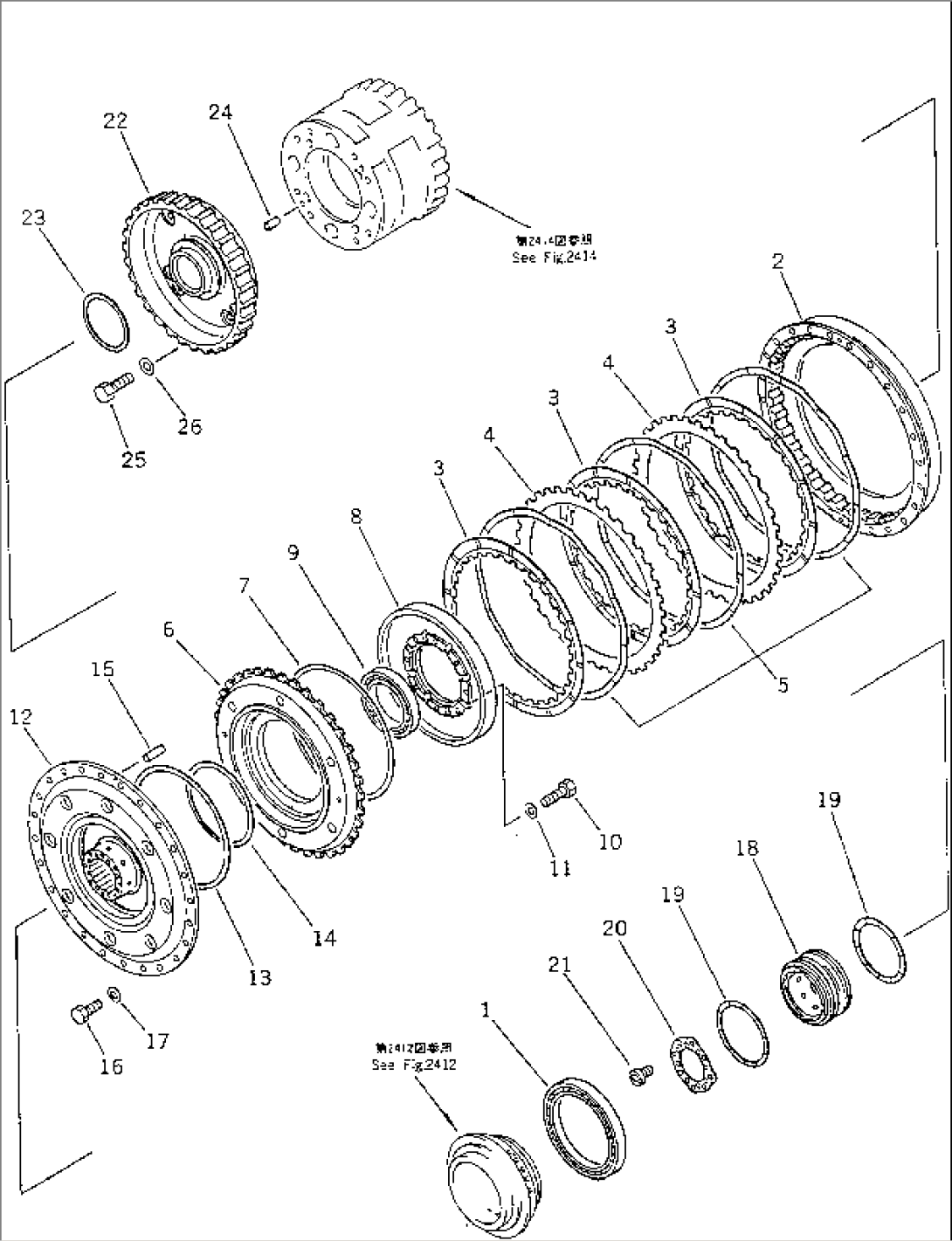

| Item | Part No. | Part Name | Qty | Serial No. |
| (566-15-00600) | TORQFLOW ASS'Y | 2001-2206 | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.2231 TO 2424. | ||||
| (566-15-00019) | TRANSMISSION ASS'Y | (1579)- | ||
| (566-15-00018) | TRANSMISSION ASS'Y | 2001-(1578) | ||
| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.2401 TO 2424. | ||||
| (566-15-00630) | TRANSMISSION ASS'Y | 2001-(1578) | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.2401 TO 2416. | ||||
| 1 | 569-15-32310 | CARRIER | 2001- | |
| 2 | 07018-11205 | RING,SEAL | 2001- | |
| 3 | 569-15-32410 | GEAR | 2001- | |
| 4 | 569-15-39410 | BEARING | 2001- | |
| 5 | 569-15-32580 | WASHER,THRUST | 2001- | |
| 569-15-00330 | SHAFT ASS'Y | 2001- | ||
| 6 | \6\ | SHAFT | 2001- | |
| 7 | 569-15-31260 | PLUG | 2001- | |
| 8 | 04260-00635 | BALL | 2001- | |
| 9 | 566-15-61360 | PLATE | 2001- | |
| 10 | 01010-51230 | BOLT | 2001- | |
| 11 | 01643-31232 | WASHER | 2001- | |
| 12 | 566-15-62650 | GEAR,RING | 2001- | |
| 13 | 569-15-32280 | GEAR,RING | 2001- | |
| 14 | 154-15-12670 | RING,SNAP | 2001- | |
| 15 | 569-15-31190 | HOUSING,LOW | 2001- | |
| 16 | 154-15-22831 | RING,SEAL (K3) | 2001- | |
| 17 | 287-15-19210 | RING,SEAL (K3) | 2001- | |
| 18 | 569-15-32780 | PISTON,LOW | 2001- | |
| 19 | 232-15-19210 | RING,SEAL (K3) | 2001- | |
| 20 | 569-15-32370 | COVER | 2001- | |
| 21 | 569-15-39630 | BEARING | 2001- | |
| 22 | 01010-51030 | BOLT | 2001- | |
| 23 | 01643-31032 | WASHER | 2001- | |
| 24 | 569-15-32721 | DISC | (1338)- | |
| 569-15-32720 | DISC | 2001-(1337) | ||
| 25 | 569-15-32741 | PLATE | (1636)- | |
| \0\569-15-32740 | PLATE | 2001-(1635) | ||
| 26 | 569-15-39810 | SPRING,WAVE | 2001- | |
| 27 | 04020-01228 | PIN,DOWEL | 2001- | |
| 28 | 01010-51230 | BOLT | 2001- | |
| 29 | 01643-31232 | WASHER | 2001- | |
| 30 | 569-15-31220 | COLLAR | 2001- | |
| 31 | 423-15-19210 | RING | (1579)- | |
| 569-15-39260 | RING,SEAL | 2001-(1578) | ||
| 32 | 569-15-31240 | PLATE | 2001- | |
| 33 | 569-15-31251 | BOLT | (1579)- | |
| 569-15-31250 | BOLT | 2001-(1578) | ||
| 34 | 569-15-31230 | BUSHING | 2001- | |
| 35 | 04020-00820 | PIN,DOWEL | 2001- | |
| 36 | 232-15-19530 | RING,SNAP | 2001- | |
| 37 | 569-15-39610 | BEARING | 2001- |
