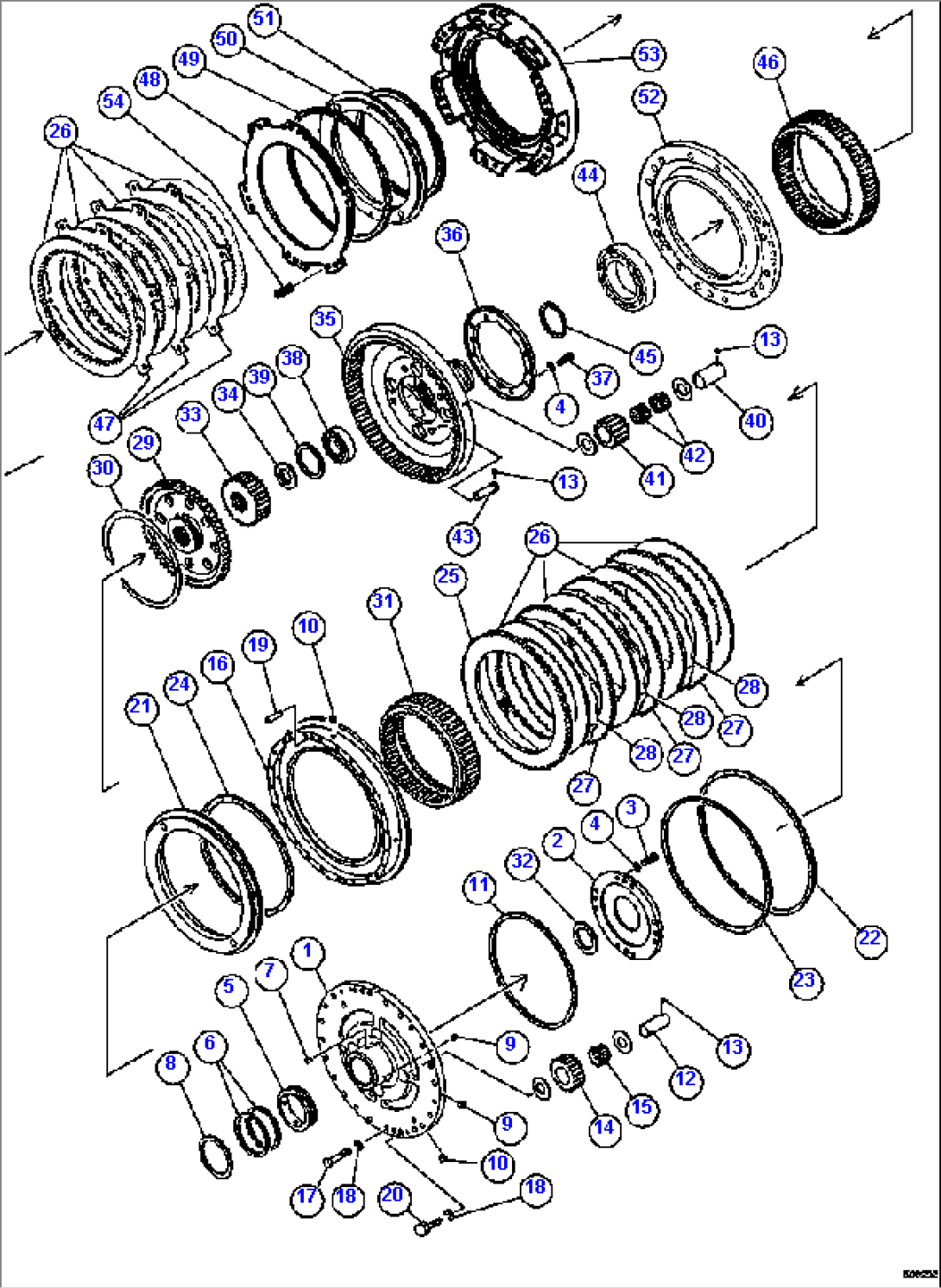

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 562-15-22310 | CARRIER | ||
| 2 | 562-15-22360 | COVER | ||
| 3 | 01010-81025 | CAPSCREW - M10 X 25 | ||
| 4 | 01643-31032 | FLAT WASHER - M10 | ||
| 5 | 562-15-11411 | COLLAR | ||
| 6 | 562-15-19710 | RING | ||
| 7 | 287-15-13390 | PIN | ||
| 8 | 04070-00130 | RING | ||
| 9 | 175-15-11230 | PLUG | ||
| 10 | 145-14-11320 | PLUG | ||
| 11 | 155-15-12820 | RING (1) | ||
| 12 | 562-15-12511 | SHAFT | ||
| 13 | 04260-00635 | BALL | ||
| 14 | 562-15-12411 | GEAR | ||
| 15 | 562-15-19510 | BEARING | ||
| 16 | 562-15-22840 | PLATE | ||
| 17 | 01010-81290 | CAPSCREW - M12 | ||
| 18 | 01643-31232 | FLAT WASHER - M12 | ||
| 19 | 562-15-11281 | PIN | ||
| 20 | 01010-81230 | CAPSCREW - M12 | ||
| 21 | 562-15-22770 | PISTON | ||
| 22 | 562-15-19281 | RING (1) | ||
| 23 | 195-15-29220 | RING (1) | ||
| 24 | 155-15-12811 | RING (1) | ||
| 25 | 562-15-22830 | PLATE | ||
| 26 | 562-15-22860 | DISC, LOW & HIGH SPLITTER | ||
| 27 | 562-15-22850 | PLATE, HIGH SPLITTER | ||
| 28 | 562-15-12920 | SPRING, HIGH SPLITTER | ||
| 29 | 562-15-22280 | HUB | ||
| 30 | 562-15-29580 | SNAP RING | ||
| 31 | 562-15-22650 | RING GEAR | ||
| 32 | 562-15-22180 | SPACER | ||
| 33 | 562-15-22220 | GEAR | ||
| 34 | 562-15-12150 | SPACER | ||
| 35 | 562-15-22321 | CARRIER | ||
| 36 | 562-15-22370 | COVER | ||
| 37 | 01010-81035 | CAPSCREW - M10 X 1.50 X 35 | ||
| 38 | 562-15-29310 | BEARING | ||
| 39 | 04071-00120 | RING | ||
| 40 | 562-15-12520 | SHAFT | ||
| 41 | 562-15-12420 | GEAR | ||
| 42 | 562-15-29420 | BEARING | ||
| 43 | 562-15-11370 | SLEEVE | ||
| 44 | 562-15-19570 | BEARING | ||
| 45 | 07018-11155 | RING | ||
| 46 | 562-15-22640 | RING GEAR | ||
| 47 | 562-15-22711 | PLATE, LOW SPLITTER | ||
| 48 | 562-15-22970 | PLATE | ||
| 49 | 562-15-22960 | PISTON | ||
| 50 | 175-15-59240 | RING (1) | ||
| 51 | 175-15-59250 | RING (1) | ||
| 52 | PLATE (2) | |||
| 53 | HOUSING (2) | |||
| 54 | 562-15-12850 | SPRING | ||
| NS|55 | 562-15-05131 | NOTE: (1) INCLUDED IN TRANSMISSION SERVICE | ||
| NS|56 | KIT 562-15-05131. | |||
| NS|57 | (2) SEE FIG 50577 - RANGE CLUTCH HOUSING | |||
| NS|58 | FOR FURTHER DETAILS. |
