| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | VE3890 | VALVE, SHUTTLE | ||
| 2 | MANIFOLD (1) | |||
| 3 | VE6439 | SHUTTLE, HOT OIL | ||
| 4 | PLUG, EXPANDER (1) | |||
| 5 | VE6441 | VALVE, MANUAL | ||
| 6 | VE6440 | VALVE, SEQUENCE | ||
| 7 | VE6442 | PLUG, ORIFICE | ||
| 8 | VE4037 | PLUG | ||
| NS|9 | NOTE: (1) NOT SERVICED SEPERATELY. |
- Главная
- Каталог запчастей
- Самосвалы
- Bfa40 2 210m (bfa40 as thru bz)
- Hydraulic system
- Low pressure detection module (pb7568)
Поиск по каталогу

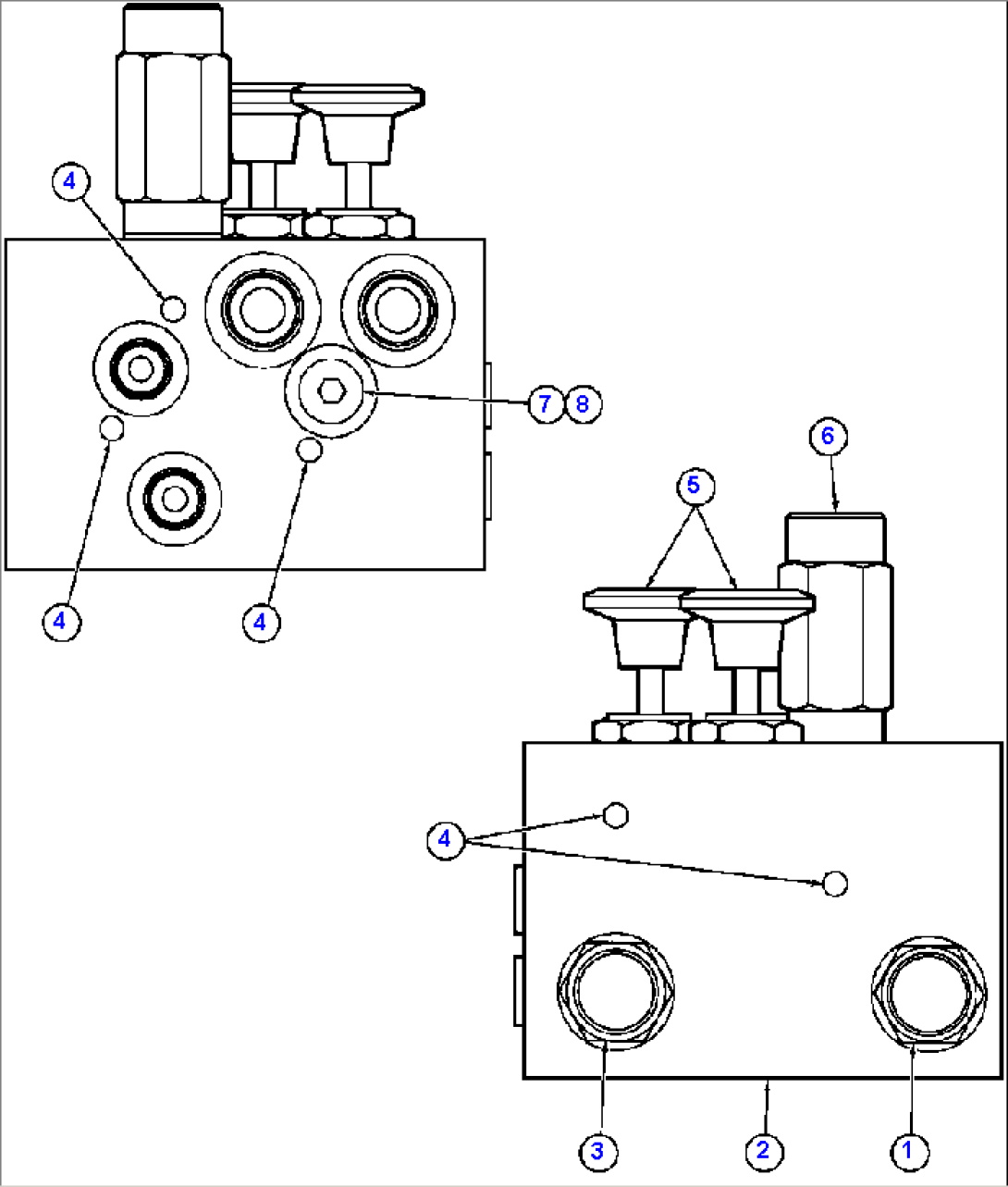

LOW PRESSURE DETECTION MODULE (PB7568)
