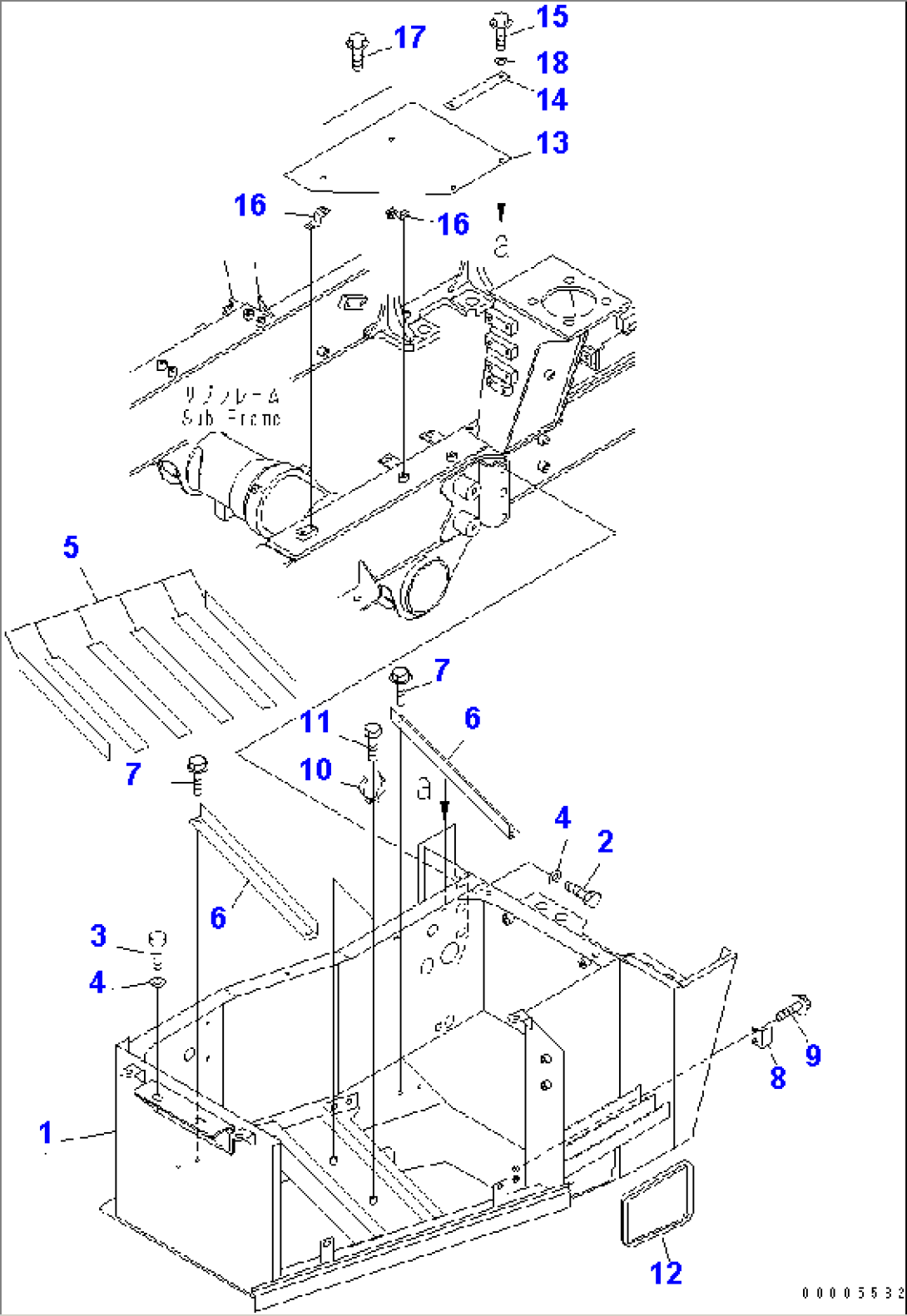

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 56D-85-14130 | BRACKET | 1001-1172 | |
| 1 | 416-09-12220 | HINGE (WELDED) | 1001- | |
| 2 | 01010-81645 | BOLT | 1001- | |
| 3 | 01010-81635 | BOLT | 1001- | |
| 4 | 21T-54-16150 | WASHER | 1001- | |
| 5 | 08007-13549 | CUSHION | 1001-1172 | |
| 6 | 56B-54-12680 | PLATE | 1001-1172 | |
| 7 | 01435-01020 | BOLT | 1001-1172 | |
| 8 | 56B-54-12650 | BRACKET | 1001-1172 | |
| 9 | 01435-00812 | BOLT | 1001-1172 | |
| 10 | 417-54-21460 | SPRING | 1001-1172 | |
| 11 | 01435-00812 | BOLT | 1001-1172 | |
| 12 | 418-54-21710 | SEAL | 1001-1172 | |
| 13 | 56D-54-12350 | COVER | 1001- | |
| 14 | 502-95-16210 | PLATE | 1001- | |
| 15 | 01435-01020 | BOLT | 1001- | |
| 16 | 56D-54-12360 | BRACKET | 1001- | |
| 17 | 01435-01020 | BOLT | 1001- | |
| 18 | 195-43-42380 | WASHER | 1001- |
