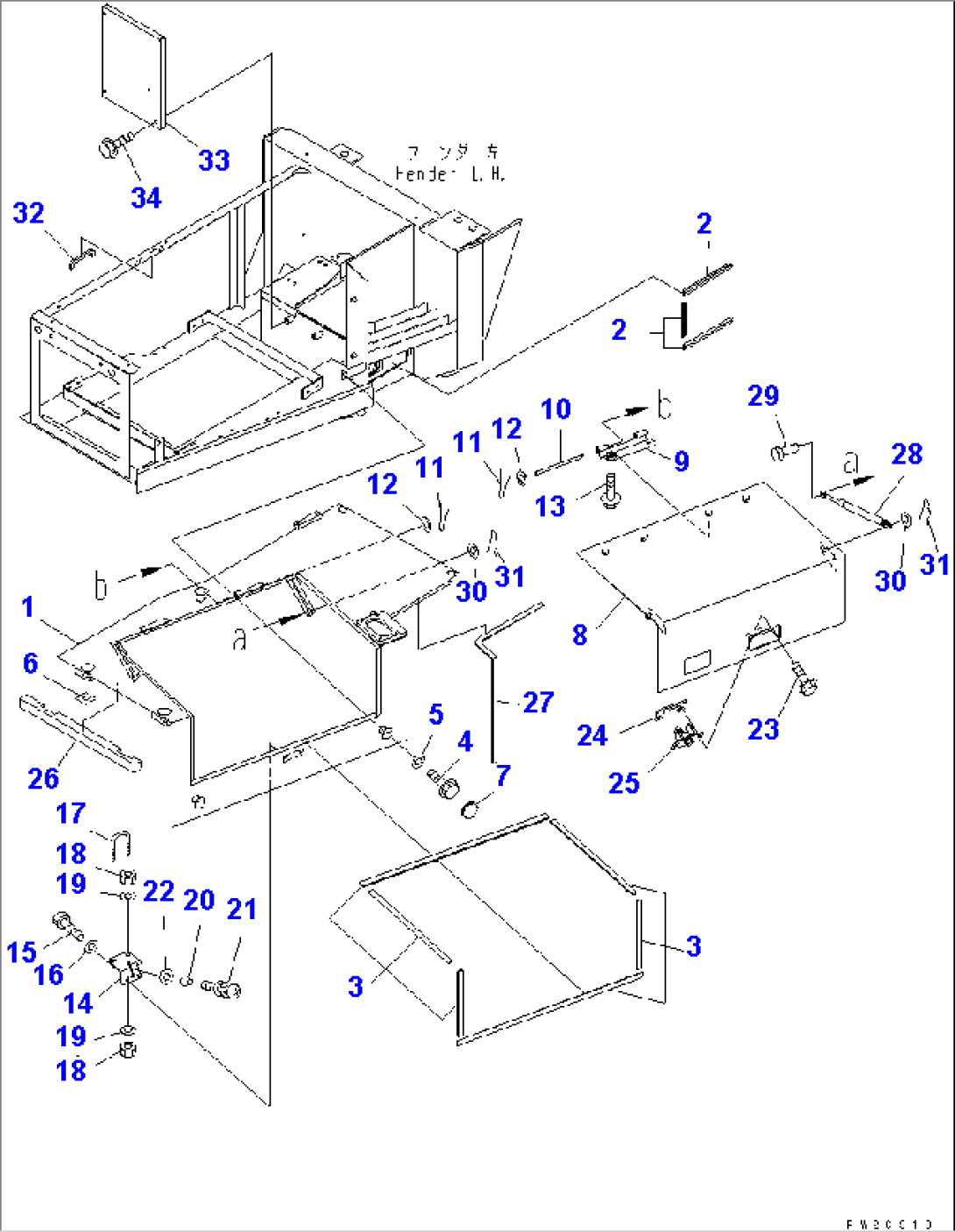

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 56B-54-12525 | COVER | 1001- | |
| 2 | 56B-54-12612 | SEAL | 1001- | |
| 3 | 56B-54-12643 | SEAL | 1001- | |
| 4 | 01435-01230 | BOLT | 1001- | |
| 5 | 124-54-26540 | WASHER | 1001- | |
| 6 | 417-923-1210 | SHIM¤ 1.0MM | 1001- | |
| 7 | 09415-03614 | CAP | 1001- | |
| 8 | 56B-54-12536 | COVER | 1001- | |
| 9 | 56B-54-12591 | BRACKET | 1001- | |
| 10 | 14X-54-14251 | PIN | 1001- | |
| 11 | 04050-13020 | PIN,COTTER | 1001- | |
| 12 | 01640-21016 | WASHER | 1001- | |
| 13 | 01435-01016 | BOLT | 1001- | |
| 14 | 56B-54-12952 | BRACKET | 1001- | |
| 15 | 01010-81025 | BOLT | 1001- | |
| 16 | 01643-31032 | WASHER | 1001- | |
| 17 | 56D-54-12562 | BOLT | 1001- | |
| 18 | 01580-10806 | NUT | 1001- | |
| 19 | 01643-50823 | WASHER | 1001- | |
| 20 | 421-926-2950 | CUSHION | 1001- | |
| 21 | 01023-70416 | SCREW | 1001- | |
| 22 | 01640-20610 | WASHER | 1001- | |
| 23 | 01435-01020 | BOLT | 1001- | |
| 24 | 56B-54-12A70 | PLATE | 1001- | |
| 25 | 21U-54-21610 | LOCK ASS'Y | 1001- | |
| 26 | 56B-54-12661 | SEAL | 1001- | |
| 27 | 56B-54-12670 | SHEET | 1001- | |
| 28 | 417-54-21310 | GAS SPRING ASS'Y | 1001- | |
| 29 | 04205-10832 | PIN | 1001- | |
| 30 | 01640-20816 | WASHER | 1001- | |
| 31 | 04052-10833 | PIN,SNAP | 1001- | |
| 32 | 56B-54-12770 | FINISHER | 1001- | |
| 33 | 56B-54-12940 | COVER | 1001- | |
| 34 | 01435-01016 | BOLT | 1001- |
