| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 20U-62-21110 | HOSE | 14993- | |
| 2 | 20T-62-67140 | GROMMET | 14993- | |
| 3 | 21X-62-22230 | HOSE | 14993- | |
| 4 | 20T-62-83170 | HOSE¤ 1350MM | 16641- | |
| 20U-62-21130 | HOSE¤ 1350MM | 14993-16640 | ||
| 5 | 20U-62-11760 | VINYL | 14993- |
- Главная
- Каталог запчастей
- Гусеничные экскаваторы
- Pc50uu 2 s/n 8001 up
- Travel and lower piping
- Lower hydraulic line (travel motor line) (power tilt mechanical angle)(#14993 )
Поиск по каталогу

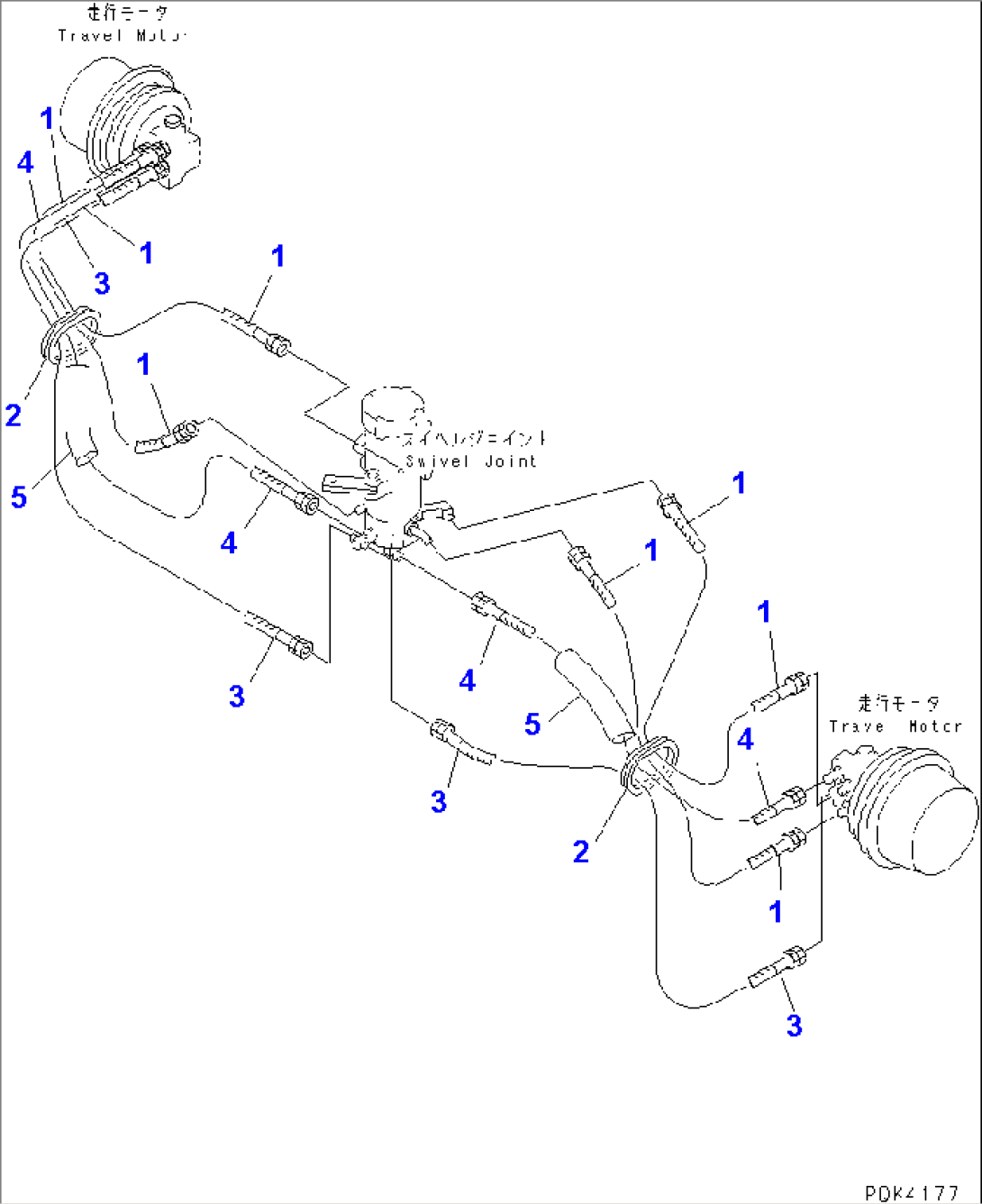

LOWER HYDRAULIC LINE (TRAVEL MOTOR LINE) (POWER TILT MECHANICAL ANGLE)(#14993-)
