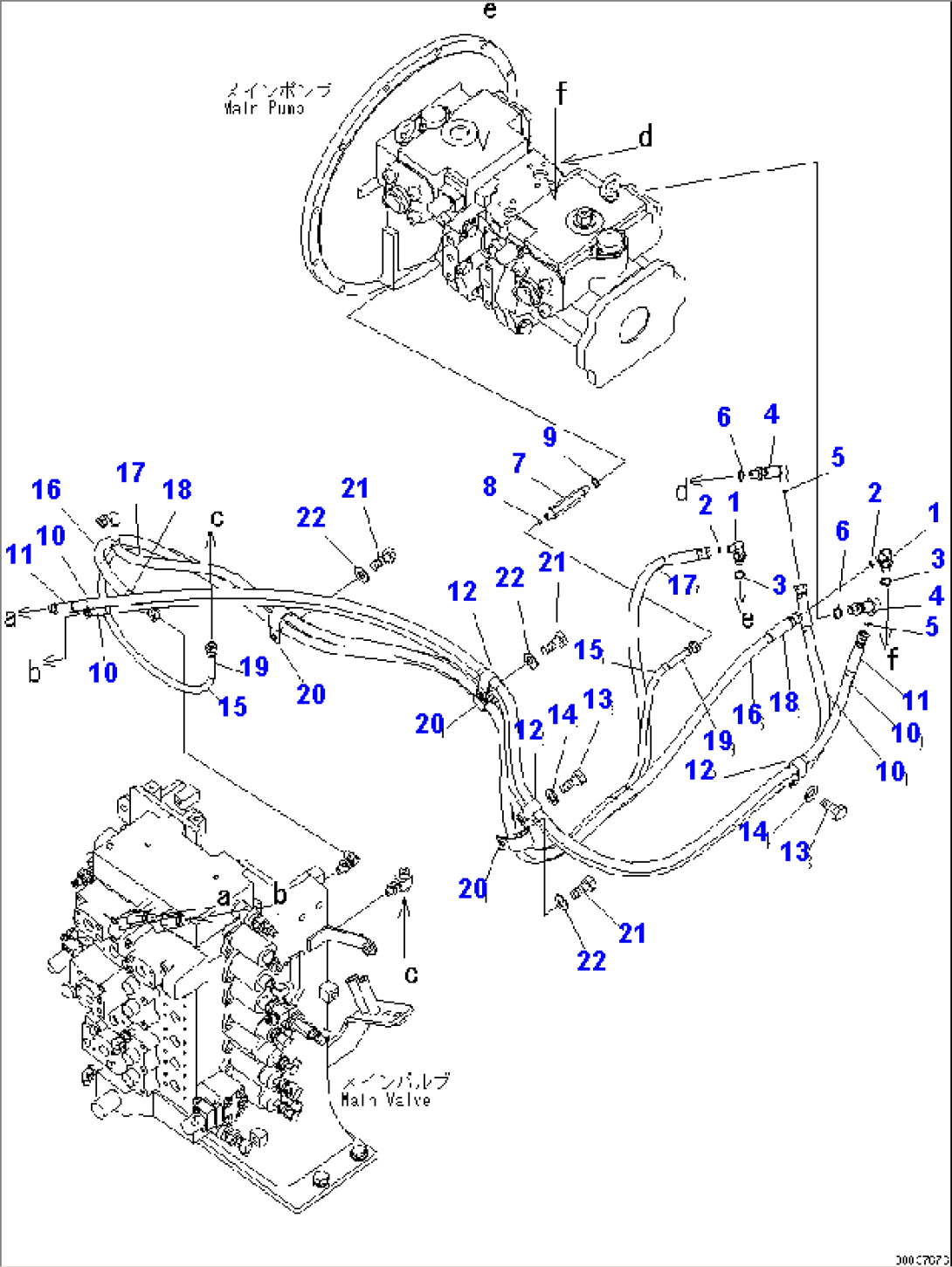

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 11Y-62-12160 | ELBOW | K45001- | |
| 2 | 02896-11008 | O-RING | K45001- | |
| 3 | 07002-11423 | O-RING | K45001- | |
| 4 | 11Y-62-12370 | ELBOW | K45001- | |
| 5 | 02896-11008 | O-RING | K45001- | |
| 6 | 07002-11423 | O-RING | K45001- | |
| 7 | 207-62-71531 | UNION | K45001- | |
| 8 | 02896-11008 | O-RING | K45001- | |
| 9 | 07002-11423 | O-RING | K45001- | |
| 10 | 02777-00225 | HOSE | K45001- | |
| 11 | 20Y-62-22790 | BAND¤ RED | K45001- | |
| 12 | 04435-51812 | CLIP | K45001- | |
| 13 | 01010-81220 | BOLT | K45001- | |
| 14 | 01643-31232 | WASHER | K45001- | |
| 15 | 02760-00226 | HOSE¤ 2600MM | K45001- | |
| 16 | 02777-00224 | HOSE | K45001- | |
| 17 | 02778-00223 | HOSE | K45001- | |
| 18 | 20Y-62-22790 | BAND¤ RED | K45001- | |
| 19 | 20Y-62-22810 | BAND¤ YELLOW | K45001- | |
| 20 | 113-899-7950 | CLIP | K45001- | |
| 21 | 01010-81225 | BOLT | K45001- | |
| 22 | 01643-31232 | WASHER | K45001- |
