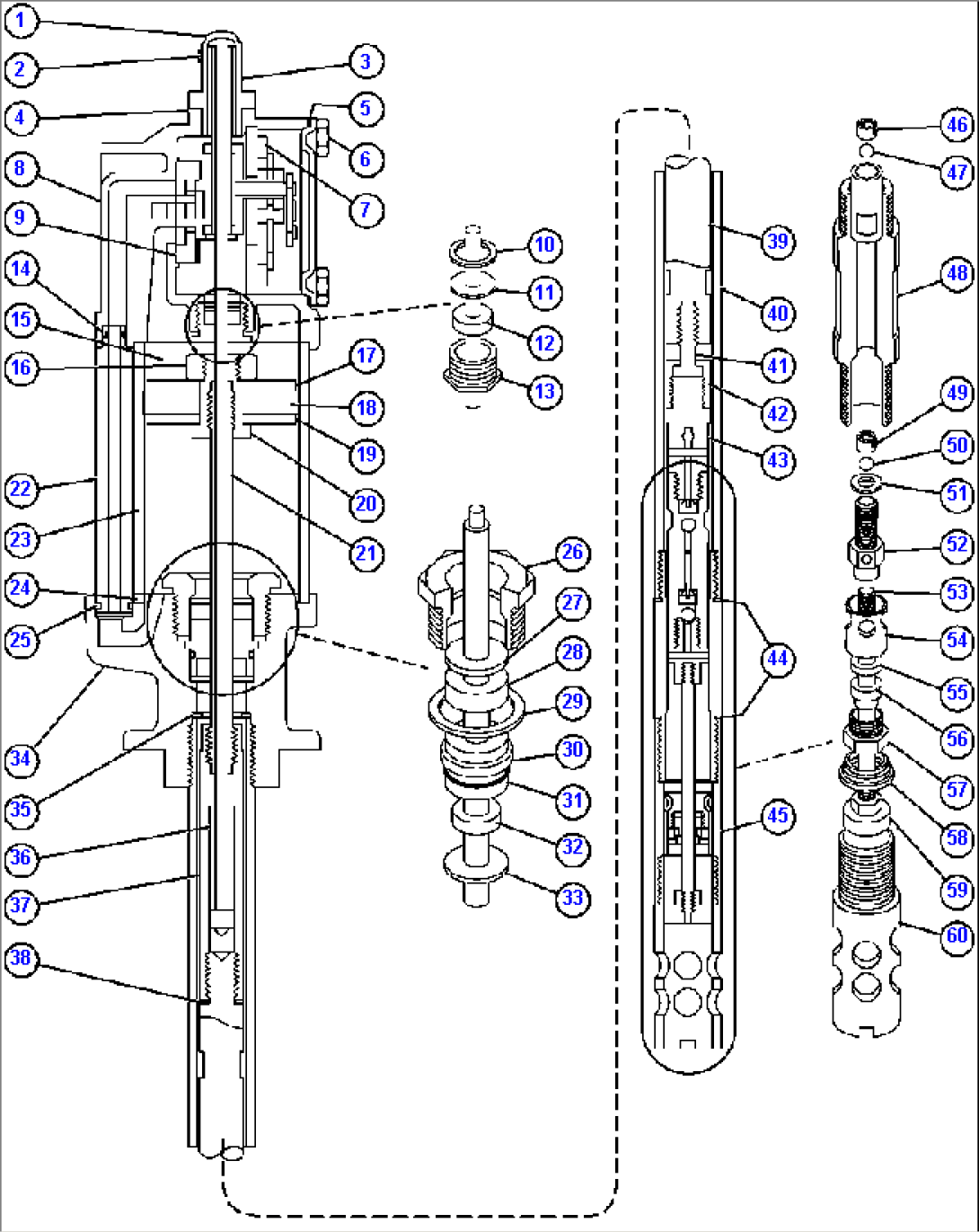

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | BF5552 | CAP, VALVE | ||
| 2 | BF5553 | TRIP, ROD PIN (1) | ||
| 3 | BF5554 | TRIP, ROD COLLAR | ||
| 4 | BF5578 | GASKET (1) | ||
| 5 | BF5556 | GASKET, COVER (1) | ||
| 6 | XA2179 | SCREW, COVER | ||
| 7 | XA2186 | SCREW, PLATE | ||
| 8 | XA2180 | HOUSING, AIR VALVE | ||
| 9 | BF5560 | SLEEVE, TRIP | ||
| 10 | BF5564 | GASKET (1) | ||
| 11 | XA2181 | WASHER (1) | ||
| 12 | XA2182 | PACKING (1) | ||
| 13 | XA2183 | NUT | ||
| 14 | BF5588 | O-RING (1) | ||
| 15 | BF5571 | CYLINDER, AIR (1) | ||
| 16 | BF5568 | NUT, AIR PISTON | ||
| 17 | BF5570 | WASHER | ||
| 18 | BF5569 | PACKING | ||
| 19 | BF5570 | WASHER | ||
| 20 | LA1189 | BOLT, PISTON | ||
| 21 | LA1190 | ROD, PISTON (1) | ||
| 22 | BF5592 | TUBE, AIR PASSAGE | ||
| 23 | BF5591 | CYLINDER, AIR | ||
| 24 | BF5571 | CYLINDER, AIR (1) | ||
| 25 | BF5588 | O-RING (1) | ||
| 26 | LA1196 | NUT, GLAND PACKAGE | ||
| 27 | LA1205 | WASHER | ||
| 28 | LA0907 | PACKING | ||
| 29 | LA0908 | GASKET | ||
| 30 | LA1197 | GLAND PACKAGE (SPACER) | ||
| 31 | LA0909 | O-RING (1) | ||
| 32 | LA0910 | U-CUP (1) | ||
| 33 | LA1204 | GLAND PACKAGE (WASHER) | ||
| 34 | LA1202 | BODY, OUTLET | ||
| 35 | LA1201 | GASKET, PUMP TUBE (1) | ||
| 36 | BF5576 | TRIP ARM ASSEMBLY | ||
| 37 | LA1194 | CONNECTOR, PISTON ROD | ||
| 38 | LA1199 | GASKET (1) | ||
| 39 | BF5580 | ROD, PISTON | ||
| 40 | BF5581 | TUBE, PUMP | ||
| 41 | LA1193 | STUD, COUPLING | ||
| 42 | LA1192 | NUT, COUPLING | ||
| 43 | LA1191 | ADAPTER, PLUNGER | ||
| 44 | LA1200 | GASKET | ||
| 45 | LA1210 | EXTENSION, BUSHING | ||
| 46 | LA1209 | STOP, BALL | ||
| 47 | LA0906 | BALL, STEEL (1) | ||
| 48 | LA1213 | PLUNGER/BUSHING ASSEMBLY | ||
| 49 | LA1209 | STOP, BALL | ||
| 50 | LA0906 | BALL, STEEL | ||
| 51 | LA0662 | GASKET (1)/(2) | ||
| 52 | LA0899 | SEAT, CHECK (1)/(2) | ||
| 53 | LA0900 | ROD, PLUNGER (1)/(2) | ||
| 54 | LA1195 | STOP, CHECK | ||
| 55 | LA0903 | PACKING (1)/(2) | ||
| 56 | LA0902 | BUSHING (1)/(2) | ||
| 57 | LA0904 | SEAT, CHECK (1)/(2) | ||
| 58 | LA0905 | SEAT, CHECK (1)/(2) | ||
| 59 | LA0901 | PLUNGER (1)/(2) | ||
| 60 | LA1214 | TUBE, PRIMING | ||
| NS|61 | LA0622 | NOTE: (1) INCLUDED IN LA0622 PUMP REPAIR KIT. | ||
| NS|62 | LA0550 | (2) INCLUDED IN LA0550 LOWER PUMP TUBE REPAIR KIT. |
