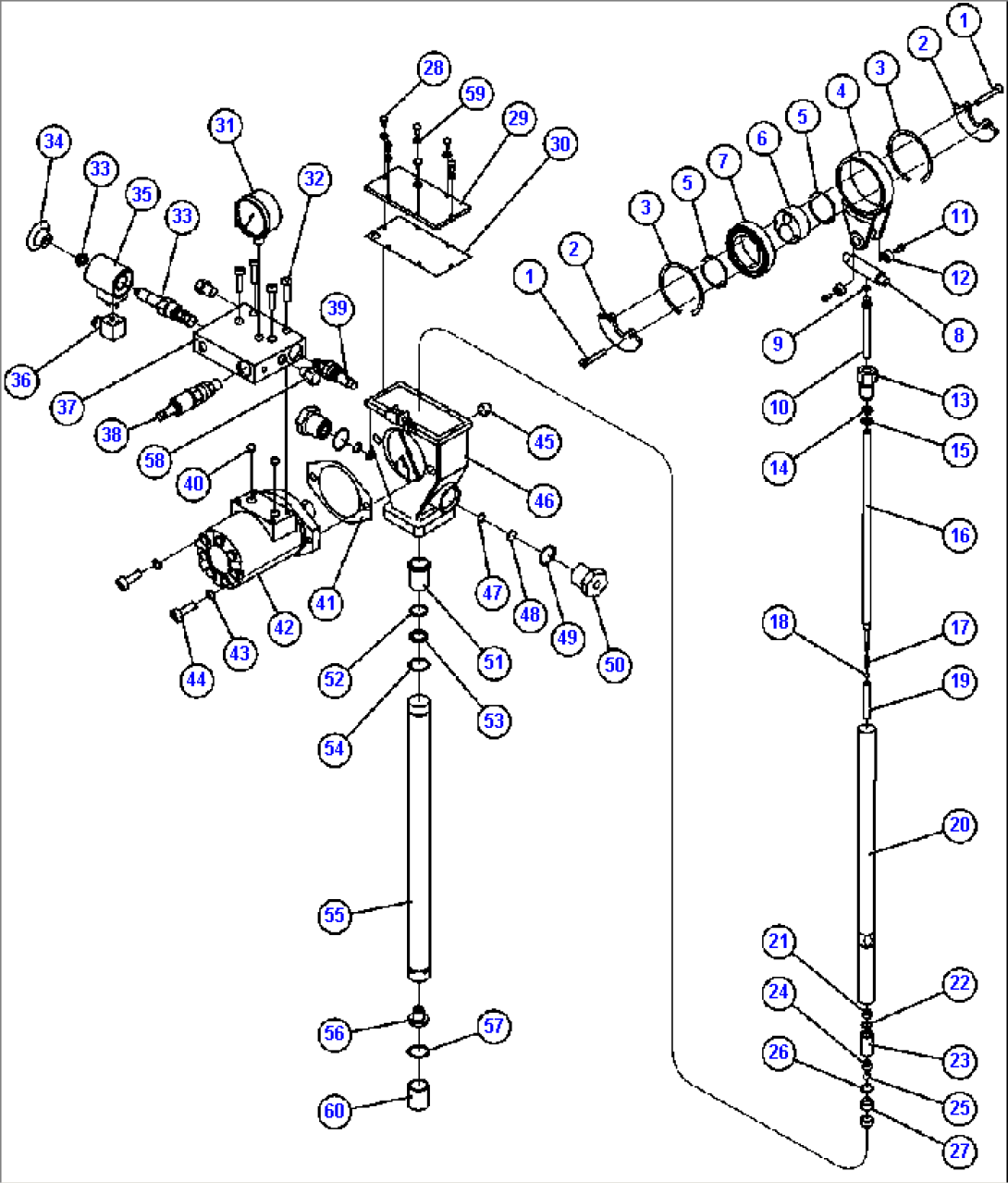

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | BF5470 | SCREW, FLAT HEAD | ||
| 2 | BF5471 | WEIGHT, OUTER | ||
| 3 | BF5473 | RING, RETAINING | ||
| 4 | BF5474 | CRANKROD | ||
| 5 | BF5511 | RING, RETAINING | ||
| 6 | BF5475 | CRANK, ECCENTRIC | ||
| 7 | BF5476 | BEARING, BALL | ||
| 8 | BF5477 | PIN, OUTLET | ||
| 9 | O-RING (1) | |||
| 10 | BF5478 | TUBE, PLUNGER | ||
| 11 | XA2790 | SCREW, BUTTON HEAD | ||
| 12 | BF5480 | BUSHING, WRIST PIN | ||
| 13 | BF5481 | ANCHOR, WRIST PIN | ||
| 14 | WASHER, BACKUP (1) | |||
| 15 | SEAL, CUP (1) | |||
| 16 | BF5482 | ROD, PLUNGER | ||
| 17 | BF5483 | SPRING | ||
| 18 | LA0906 | BALL, STEEL | ||
| 19 | XA2017 | PLUNGER | ||
| 20 | BF5485 | TUBE, RECIPRICATING | ||
| 21 | SEAL, CUP (1) | |||
| 22 | O-RING (1) | |||
| 23 | BF5486 | CYLINDER | ||
| 24 | BF5487 | CAGE, BALL | ||
| 25 | BF3823 | BALL, STEEL | ||
| 26 | O-RING (1) | |||
| 27 | BF5488 | SEAT, CHECK | ||
| 28 | BF5489 | SCREW, SELF-TAPPING | ||
| 29 | BF5490 | COVER, HOUSING | ||
| 30 | GASKET, COVER (1) | |||
| 31 | BF5491 | GAUGE, PRESSURE | ||
| 32 | BF5492 | SCREW, SOCKET HEAD | ||
| 33 | XA1987 | SWITCH, OVERRIDE | ||
| 33 | BF5507 | SEAL KIT | ||
| 34 | XA3020 | KNOB, OVERRIDE | ||
| 35 | BF5494 | VALVE, SOLENOID | ||
| 36 | PB9784 | CONNECTOR | ||
| 37 | XA2018 | MANIFOLD | ||
| 38 | PC1770 | VALVE, PRESSURE REDUCING | ||
| 38 | BF5508 | SEAL KIT | ||
| 39 | PC1769 | VALVE, FLOW CONTROL | ||
| 39 | BF5509 | SEAL KIT | ||
| 40 | O-RING (1) | |||
| 41 | GASKET (1) | |||
| 42 | BF5498 | MOTOR, HYDRAULIC (INCLUDES REF. NOS. 40 & 41) | ||
| 43 | XA2147 | WASHER | ||
| 44 | BF5499 | SCREW, SOCKET HEAD | ||
| 45 | BF5500 | PLUG, PIPE | ||
| 46 | BF5501 | HOUSING, PUMP | ||
| 47 | RING, BACKUP (1) | |||
| 48 | O-RING (1) | |||
| 49 | O-RING (1) | |||
| 50 | BF5502 | NUT | ||
| 51 | BF5503 | BEARING, BRONZE | ||
| 52 | O-RING (1) | |||
| 53 | WASHER, BACKUP (1) | |||
| 54 | O-RING (1) | |||
| 55 | BF5504 | TUBE, HOUSING | ||
| 56 | BF5505 | PLUG, SHOVEL | ||
| 57 | BF5506 | RING, RETAINING | ||
| 58 | BF5510 | FITTING, ORIFICE | ||
| 59 | GASKET (1) | |||
| 60 | XA2148 | STRAINER, INLET | ||
| NS|64 | BF5513 | NOTE: (1) NOT SERVICED SEPARATELY. INCLUDED IN | ||
| NS|65 | BF5513 SOFT GOODS KIT. |
