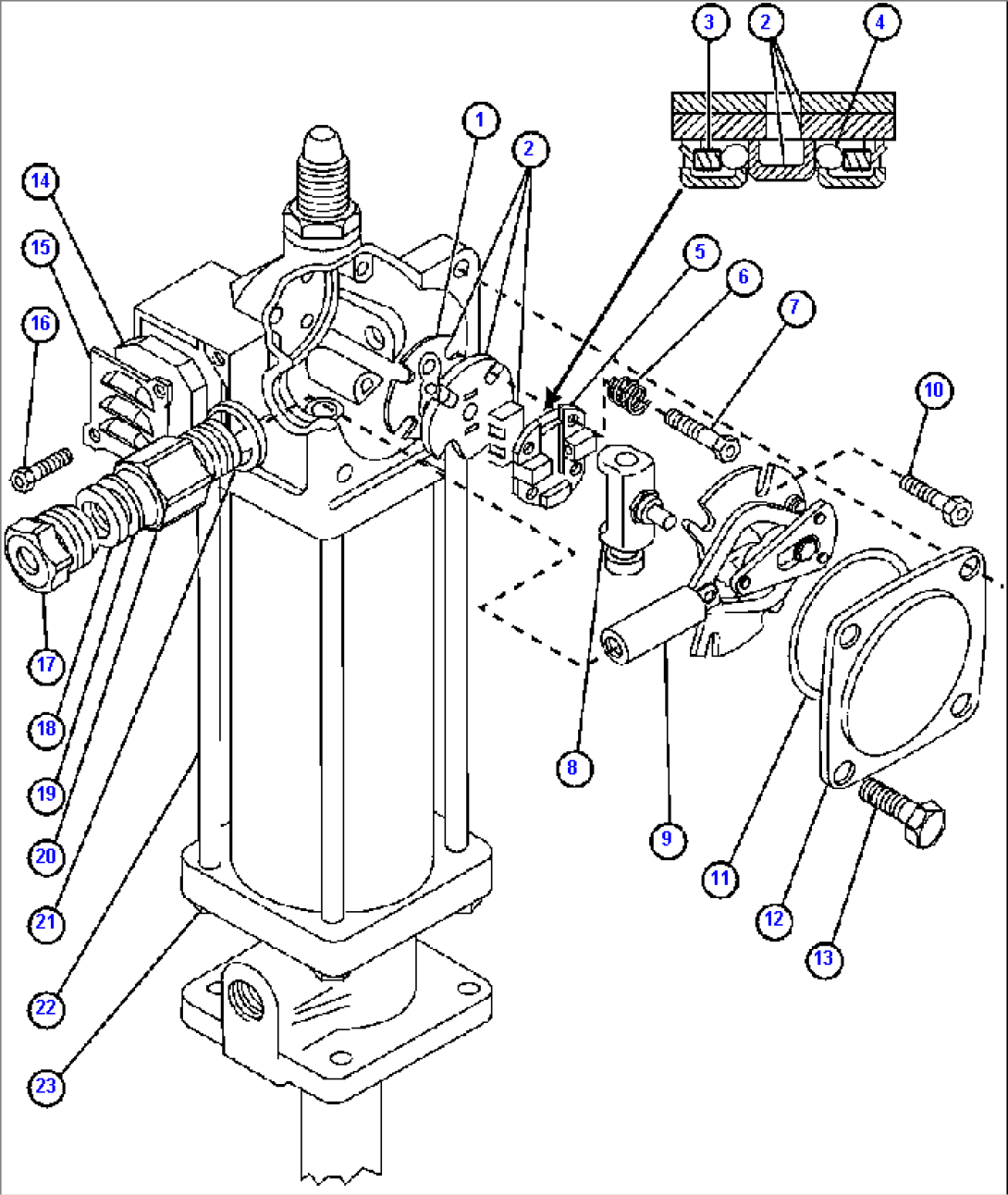

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | VJ8522 | GASKET (1) | ||
| 2 | XA2190 | PLUNGER/BUSHING ASSEMBLY | ||
| 3 | BF5590 | FITTING, SPRING | ||
| 4 | LA0906 | BALL, STEEL | ||
| 5 | BF5584 | PLATE, VALVE GUIDE | ||
| 6 | BF5589 | SPRING, VALVE SEAT | ||
| 7 | XA2189 | SCREW, VALVE SEAT | ||
| 8 | BF5558 | SHOE, TRIP | ||
| 9 | XA2187 | TOGGLE ASSEMBLY | ||
| 10 | XA2186 | SCREW, PLATE | ||
| 11 | BF5556 | GASKET, COVER | ||
| 12 | XA2188 | COVER | ||
| 13 | XA2179 | SCREW, COVER | ||
| 14 | XA2184 | MUFFLER | ||
| 15 | XA2185 | COVER | ||
| 16 | XA2186 | SCREW, PLATE | ||
| 17 | BF5594 | CAP | ||
| 18 | BF5583 | PACKING (1) | ||
| 19 | BF5586 | WASHER | ||
| 20 | BF5595 | NUT | ||
| 21 | BF5577 | GASKET (1) | ||
| 22 | BF5573 | ROD, TIE | ||
| 23 | BF5587 | NUT | ||
| NS|24 | LA0622 | NOTE: (1) INCLUDED IN LA0622 PUMP REPAIR KIT. | ||
| NS|25 | (SEE FOLLOWING PAGE FOR BALANCE OF PARTS.) |
