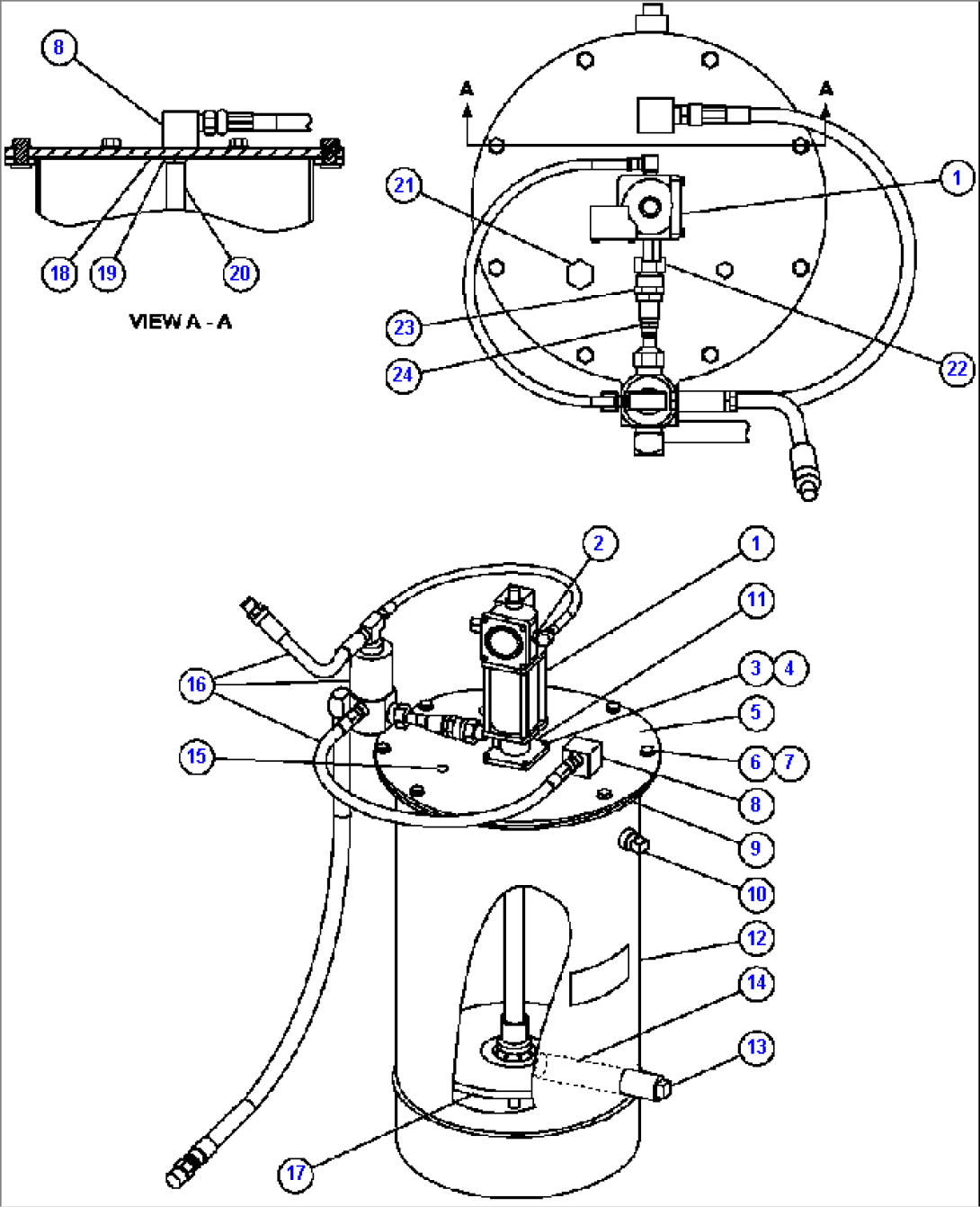

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | XA2150 | PUMP, LUBE (SEE INDEX) | ||
| 2 | XA2161 | BUSHING | ||
| 3 | BF5447 | CAPSCREW | ||
| 4 | LA1211 | LOCKWASHER | ||
| 5 | BF5422 | COVER, DRUM | ||
| 6 | BF5439 | CAPSCREW | ||
| 7 | LA1212 | LOCKWASHER | ||
| 8 | BF5449 | ELBOW | ||
| 9 | BF5440 | GASKET | ||
| 10 | BF5442 | PLUG, VENT | ||
| 11 | BF5450 | GASKET | ||
| 12 | XA3734 | CONTAINER ASSEMBLY | ||
| 13 | BF5443 | PLUG, FILL PIPE | ||
| 14 | BF5435 | TUBE, EXTENSION | ||
| 15 | XA2164 | SEAL, OIL | ||
| 16 | XA2165 | VENT ASSEMBLY (SEE INDEX) | ||
| 17 | XA2166 | FOLLOWER ASSEMBLY (SEE INDEX) | ||
| 18 | XA1988 | GASKET | ||
| 19 | BF5086 | NUT | ||
| 20 | BF5437 | PIPE, VENT | ||
| 21 | BF5444 | FITTING, VENT | ||
| 22 | BF5081 | ADAPTER | ||
| 23 | LA1187 | VALVE, CHECK (SEE INDEX) | ||
| 24 | BF5445 | UNION | ||
| NS|25 | NOTE: NS = NOT SHOWN | |||
| NS|26 | BF5438 | SCREW, WING |
