| Item | Part No. | Part Name | Qty | Serial No. |

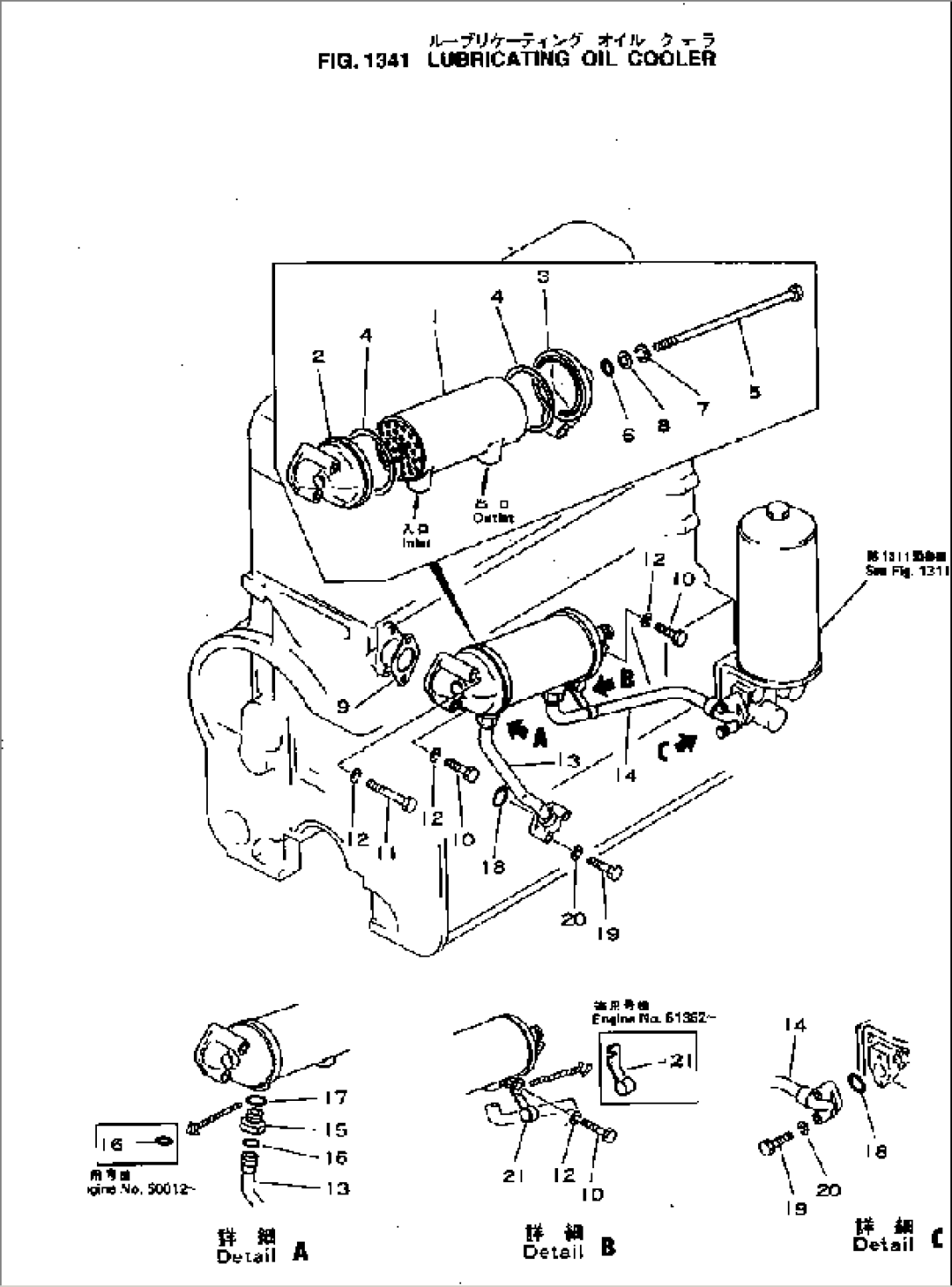

| 6110-63-2101 | OIL COOLER ASS'Y | 89377- | ||
| 1 | 6110-63-2110 | ELEMENT | 89377- | |
| 2 | 6110-63-2120 | COVER | 89377- | |
| 3 | 6110-63-2130 | COVER | 89377- | |
| 4 | 6110-63-2180 | GASKET | 89377- | |
| 5 | 6110-63-2160 | BOLT | 89377- | |
| 6 | 07000-02010 | O-RING | 89377- | |
| 7 | 01602-01030 | WASHER | 89377- | |
| 8 | 01640-21016 | WASHER | 89377- | |
| 9 | 6110-63-2810 | GASKET (K2) | 89377- | |
| 10 | 01010-31045 | BOLT | 89377- | |
| 11 | 01010-31080 | BOLT | 89377- | |
| 12 | 01602-01030 | WASHER | 89377- | |
| 13 | 6110-53-7111 | PIPE | 89377- | |
| 14 | 6110-53-7211 | PIPE | 89377- | |
| 15 | 6110-53-7312 | CONNECTOR | 89377- | |
| 16 | 07000-03017 | O-RING | 89377- | |
| 18 | 07000-03028 | O-RING (K2) | 89377- | |
| 19 | 01010-30845 | BOLT | 89377- | |
| 20 | 01602-00825 | WASHER | 89377- | |
| 21 | 6110-53-7332 | CLAMP | 89377- |
