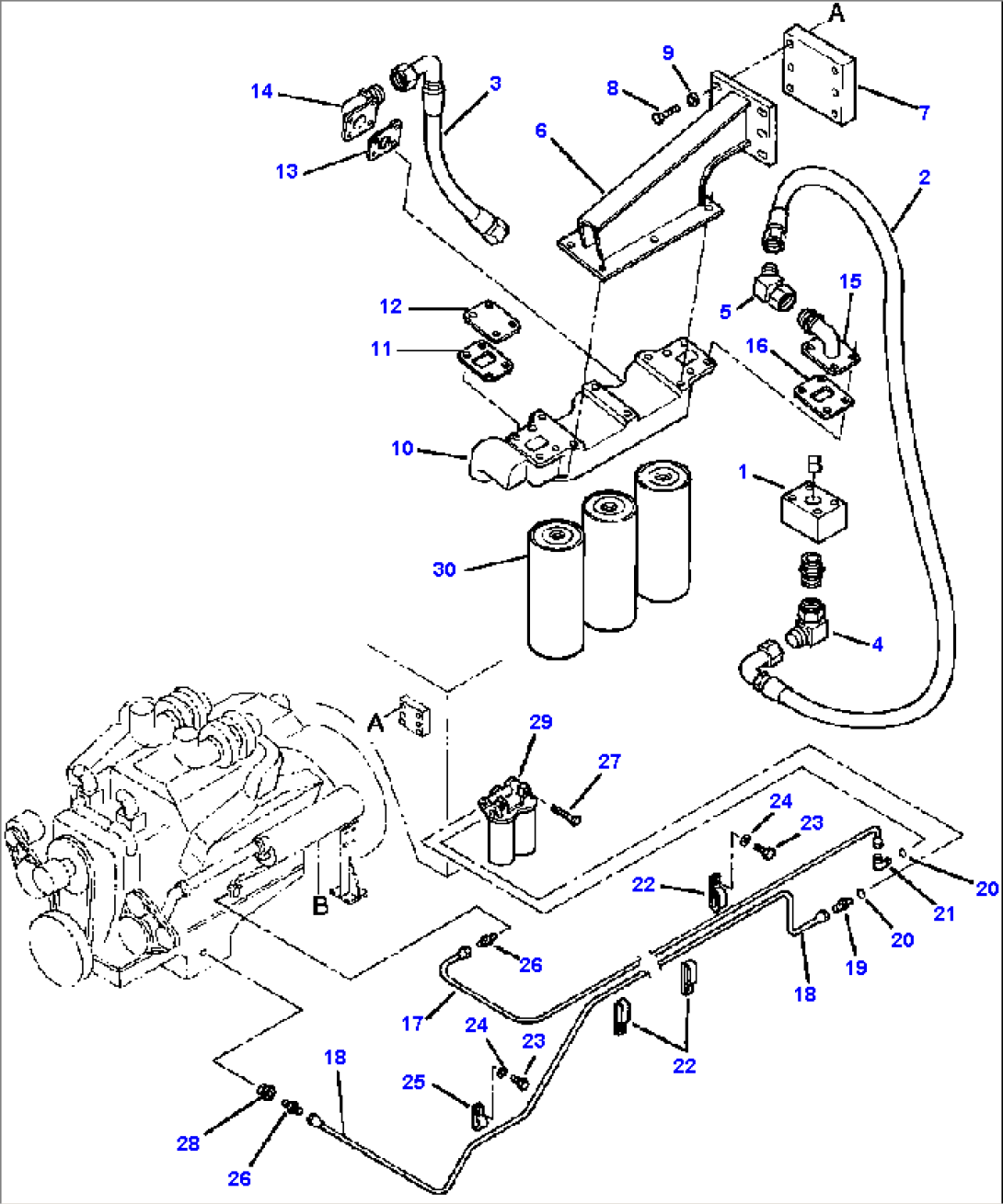

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | ED 8 829 | BLOCK ADAPTOR | | |
| 2 | HA 7 101 | HOSE, REMOTE MOUNTED (37.83 LENGTH) (UNFILTERED) | | |
| 3 | HA 7 102 | HOSE, REMOTE MOUNTED (15.83 LENGTH) (FILTERED) | | |
| 4 | VM 3 450 | FITTING JIC 90° | | |
| 5 | VM 7 411 | FITTING JIC 45° | | |
| 6 | 1301 503 H91 | BRACKET, WELDMENT OIL FILTERS | | |
| 7 | 1301 504 H1 | PLATE | | |
| 8 | 24 843 R1 | BOLT 3/8-16X2 GR8 | | |
| 9 | 25 553 R1 | WASHER HARDENED 3/8 | | |
| 10 | 1296 414 H1 | HEAD, LUBE FILTER | | |
| 11 | (NSS) | GASKET | | |
| 12 | (NSS) | PLATE, COVER | | |
| 13 | (NSS) | GASKET | | |
| 14 | (NSS) | TUBE, CONNECTION | | |
| 15 | (NSS) | TUBE, CONNECTION | | |
| 16 | (NSS) | GASKET | | |
| 17 | 1172 496 C1 | HOSE ASSEMBLY (REMOTE BY-PASS FILTERS) | | |
| 18 | 1172 495 C1 | HOSE ASSEMBLY (REMOTE BY-PASS FILTERS) | | |
| 19 | 9410 204 | CONNECTOR, SHORT 5/8 TUBE OD | | |
| 20 | 876 107 C1 | O-RING .775 ID CL8 | | |
| 21 | 9410 978 | ELBOW 90° 5/8 TUBE OD | | |
| 22 | 427 856 R91 | CLAMP, HOSE | | |
| 23 | 24 839 R1 | BOLT 3/8-16X3/4 GR8 | | |
| 24 | 25 544 R1 | WASHER, HARDENED 3/8 | | |
| 25 | 299 263 C91 | CLAMP, RUBBER | | |
| 26 | 9402 710 | CONNECTOR 5/8 TUBE OD | | |
| 27 | 203 762 R1 | BOLT 7/16-14X2 | | |
| 28 | 21 113 R1 | ADAPTER (OIL PAN) | | |
| 29 | | ELEMENT, LUBE OIL FILTER (SEE PG E3-002) | | |
| 30 | | ELEMENT, LUBE OIL FILTER (SEE PG E3-008) | | |
