| Item | Part No. | Part Name | Qty | Serial No. |

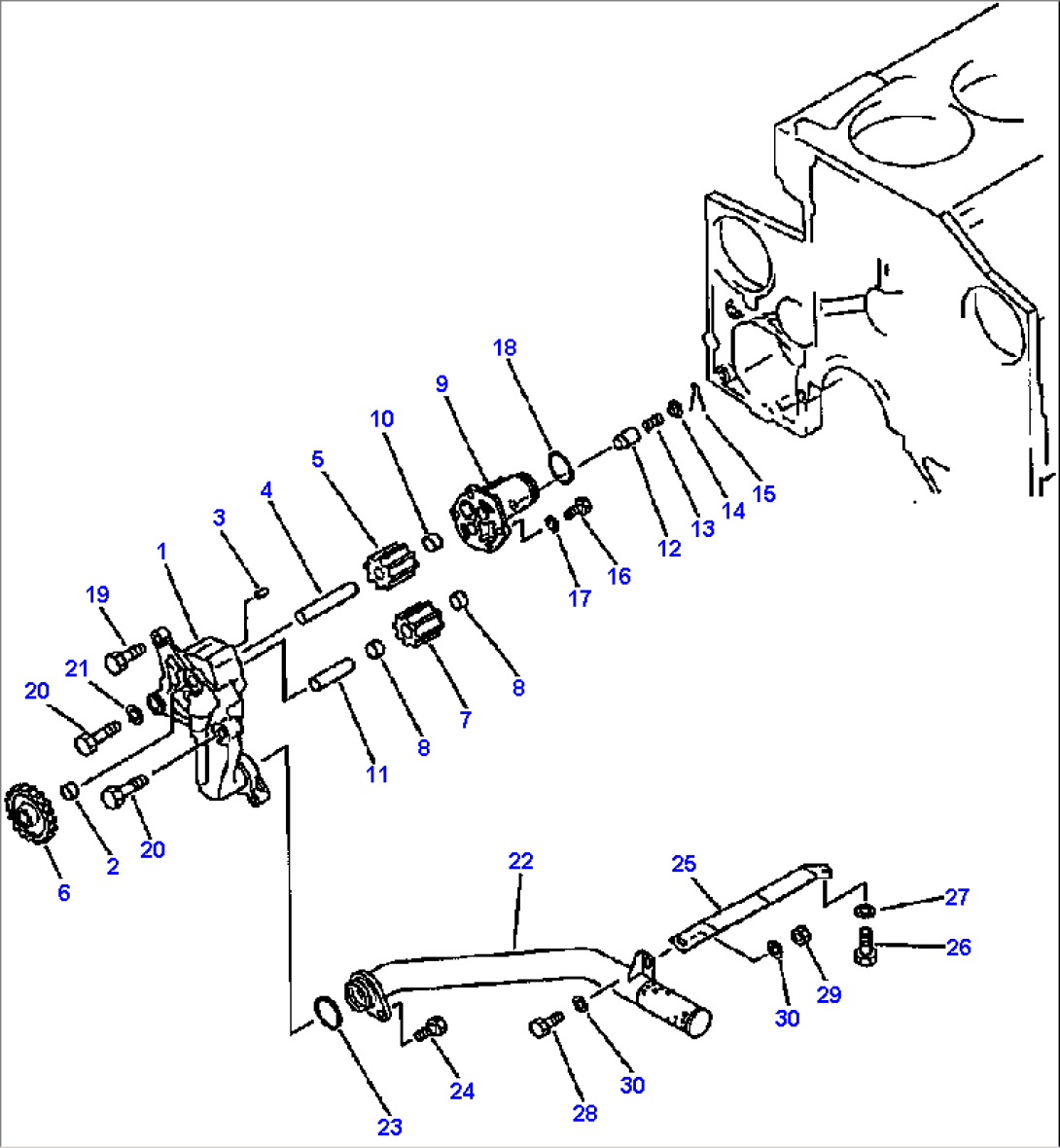

| 6211-51-1000 | PUMP, OIL - LUBRICATING | |||
| 6211-51-1200 | BODY ASSEMBLY | |||
| 1 | (NSS) | BODY | ||
| 2 | 6136-52-1330 | BUSHING | ||
| 3 | 6136-52-1620 | PIN | ||
| 6211-51-1300 | DRIVE SHAFT ASSEMBLY | |||
| 4 | 6210-51-1310 | SHAFT | ||
| 5 | (NSS) | GEAR, DRIVE | ||
| 6 | 6210-51-1510 | GEAR, DRIVE | ||
| 6211-51-1250 | GEAR ASSEMBLY, DRIVEN | |||
| 7 | (NSS) | GEAR, DRIVEN | ||
| 8 | 6136-52-1330 | BUSHING | ||
| 6211-51-1100 | COVER ASSEMBLY | |||
| 9 | (NSS) | COVER | ||
| 10 | 6136-52-1330 | BUSHING | ||
| 11 | 6210-51-1320 | SHAFT, DRIVEN | ||
| 12 | 6136-52-1640 | VALVE | ||
| 13 | 6136-52-1650 | SPRING | ||
| 14 | 6150-51-1650 | RETAINER | ||
| 15 | 04050-14035 | PIN, COTTER | ||
| 16 | 01010-30825 | BOLT | ||
| 17 | 01602-00825 | WASHER, LOCK | ||
| 18 | 07000-63038 | O-RING, OIL PUMP | ||
| 19 | 01010-31230 | BOLT | ||
| 20 | 01010-31240 | BOLT | ||
| 21 | 01643-31232 | WASHER | ||
| 22 | 6210-51-6311 | PIPE, SUCTION | ||
| 23 | 07000-63040 | O-RING, OIL STRAINER | ||
| 24 | 01010-31025 | BOLT | ||
| 25 | 6210-51-6321 | BRACKET | ||
| 26 | 01010-31020 | BOLT | ||
| 27 | 01643-31032 | WASHER | ||
| 28 | 01010-31025 | BOLT | ||
| 29 | 01580-01008 | NUT | ||
| 30 | 01640-21016 | WASHER | ||
| N/I | GASKET KIT, CYLINDER BLOCK (SEE PG E9-002) | |||
| F1 - INCLUDED IN CYLINDER BLOCK GASKET KIT 6211-K2-0105. | ||||
