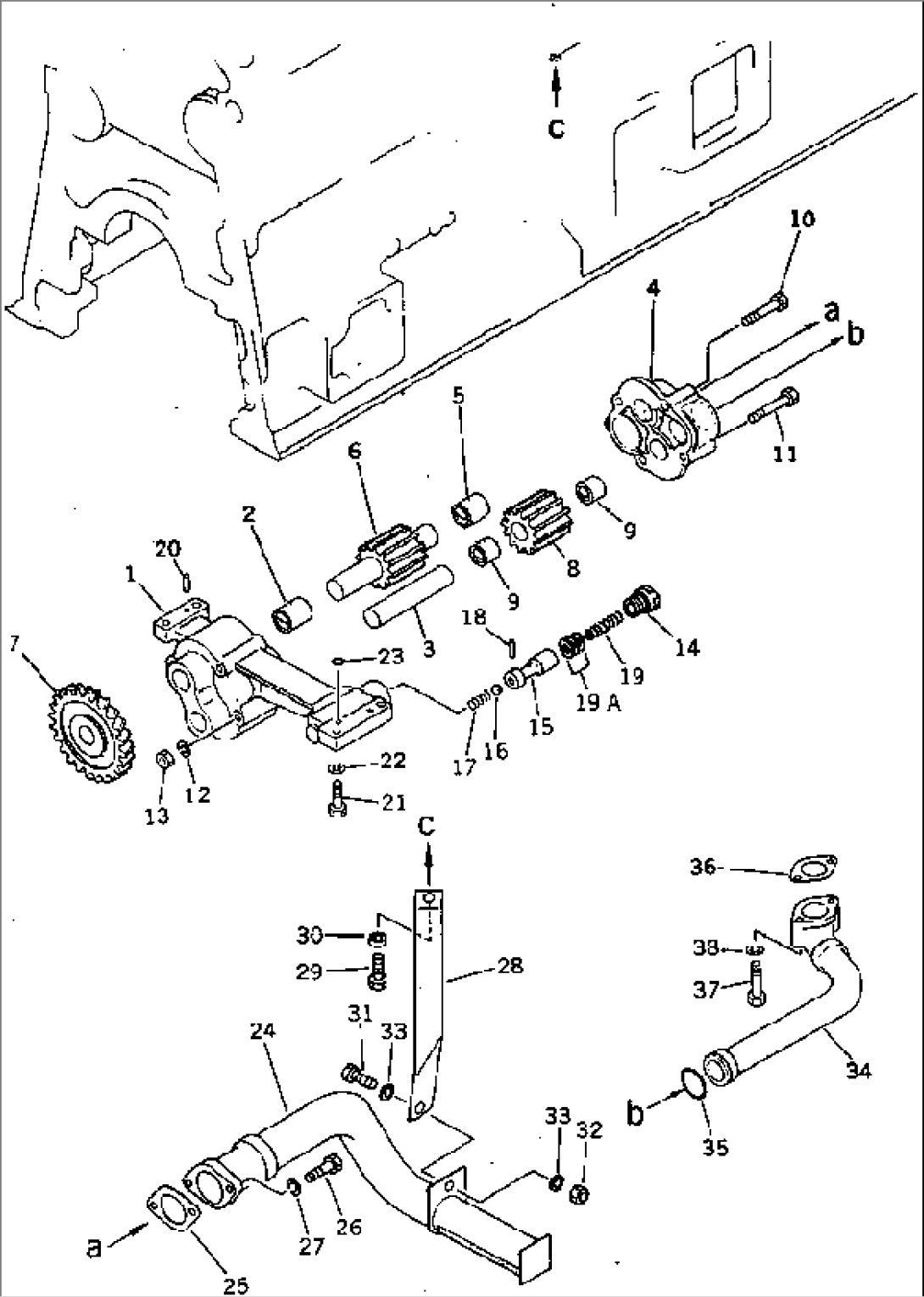

| Item | Part No. | Part Name | Qty | Serial No. |
| 6162-53-1012 | OIL PUMP ASS'Y | 11312- | ||
| 6162-53-1210 | BODY ASS'Y | 10569- | ||
| 1 | \6\ | BODY | 10569- | |
| 2 | 6162-53-1180 | BUSHING | 10569- | |
| 3 | 6162-53-1270 | SHAFT,DRIVEN | 10569- | |
| 6162-53-1100 | COVER ASS'Y | 10569- | ||
| 4 | \6\ | COVER | 10569- | |
| 5 | 6162-53-1180 | BUSHING | 10569- | |
| 6 | 6162-53-1240 | SHAFT,DRIVE | 10569- | |
| 7 | 6162-53-1510 | GEAR,DRIVE | 10569- | |
| 6162-53-1250 | GEAR ASS'Y | 10569- | ||
| 8 | \6\ | GEAR,DRIVEN | 10569- | |
| 9 | 6162-53-1280 | BUSHING | 10569- | |
| 10 | 6162-53-1290 | BOLT | 10569- | |
| 11 | 01051-31250 | BOLT | 10569- | |
| 12 | 01602-01236 | WASHER,SPRING | 10569- | |
| 13 | 01582-01210 | NUT | 10569- | |
| 14 | 6162-53-1651 | PLUG | 11312- | |
| 6162-53-6852 | PLUNGER ASS'Y | 11312- | ||
| 15 | 6162-53-6862 | PLUNGER | 11312- | |
| 16 | 6162-53-6870 | BALL | 10569- | |
| 17 | 6162-53-6880 | SPRING | 10569- | |
| 18 | 6162-53-1190 | PIN | 10569- | |
| 19 | 6162-53-6890 | SPRING | 10569- | |
| 19A | 6110-25-6340 | SHIM ASS'Y | 11312- | |
| 20 | (04020-00820) | PIN,DOWEL | 10569- | |
| 21 | 01010-31240 | BOLT | 10569- | |
| 22 | 01602-01236 | WASHER,SPRING | 10569- | |
| 23 | 07000-62015 | O-RING (K2) | 10569- | |
| 24 | 6162-53-6314 | PIPE,OIL SUCTION | 12025- | |
| 25 | 6111-61-6810 | GASKET (K2) | 10569- | |
| 26 | 01010-31035 | BOLT | 10569- | |
| 27 | 01602-01030 | WASHER,SPRING | 10569- | |
| 28 | 6162-53-6344 | BRACKET | 12025- | |
| 29 | 01010-31025 | BOLT | 12025- | |
| 30 | 6110-23-6490 | SPACER | 12025- | |
| 31 | 01010-31025 | BOLT | 12025- | |
| 32 | 01580-01008 | NUT | 10569- | |
| 33 | 01643-31032 | WASHER | 12025- | |
| 34 | 6162-53-6410 | PIPE | 10569- | |
| 35 | 6162-53-6370 | O-RING (K2) | 10569- | |
| 35 | (\2\07000-63042) | O-RING (K2) | (10569-12852) | |
| 36 | 6127-51-6821 | GASKET (K2) | 10569- | |
| 37 | 01010-31070 | BOLT | 10569- | |
| 38 | 01602-01030 | WASHER,SPRING | 10569- |
