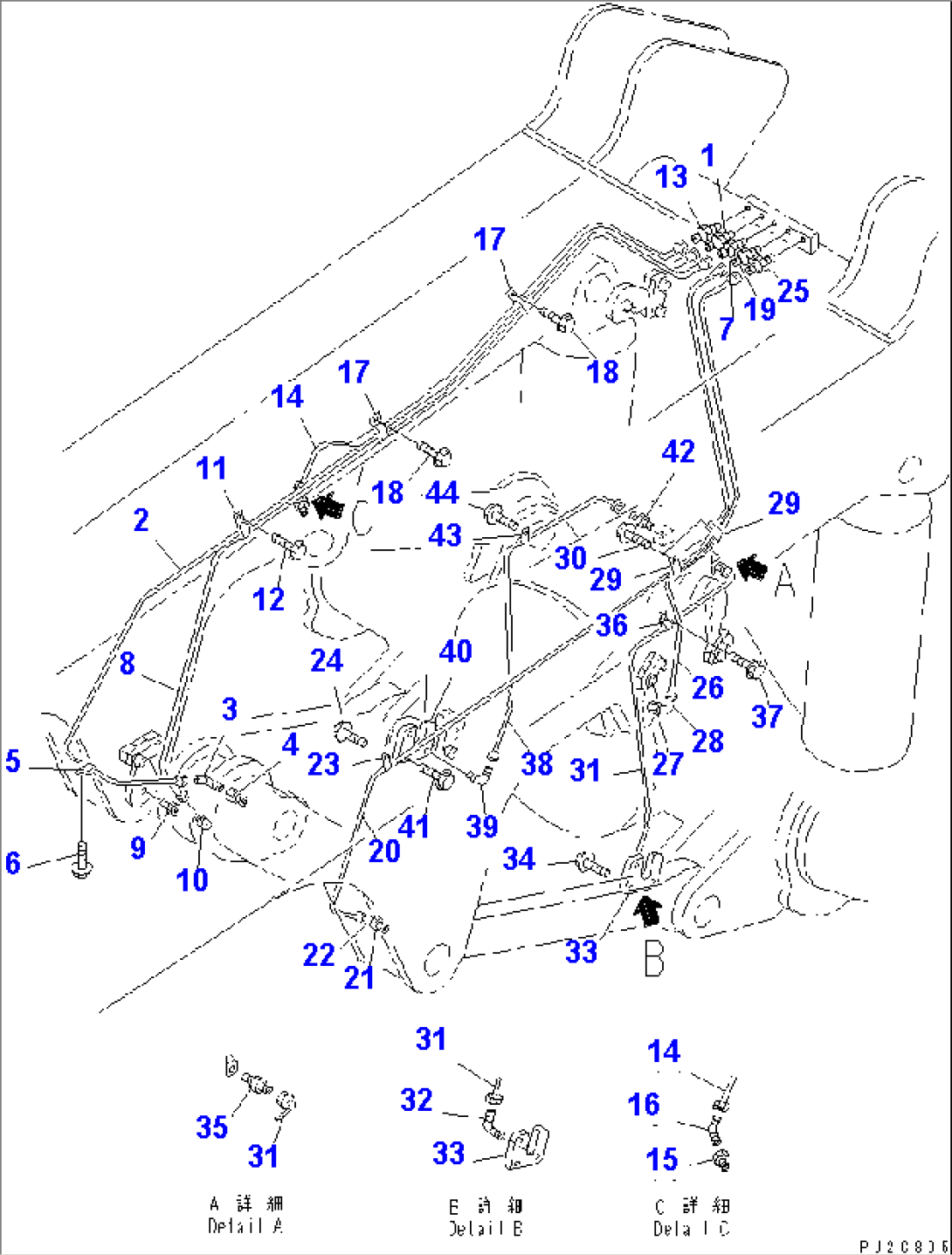

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 423-09-12110 | CONNECTOR | 1001- | |
| 2 | 567-87-71411 | TUBE | 1001- | |
| 3 | 421-09-12540 | ELBOW | 1001- | |
| 4 | 562-95-13150 | NIPPLE | 1001- | |
| 5 | 205-06-21280 | CLIP | 1001- | |
| 6 | 01435-01016 | BOLT | 1001- | |
| 7 | 423-09-12110 | CONNECTOR | 1001- | |
| 8 | 567-87-71431 | TUBE | 1001- | |
| 9 | 566-52-12210 | NIPPLE | 1001- | |
| 10 | 421-09-12540 | ELBOW | 1001- | |
| 11 | 421-46-12980 | CLIP | 1001- | |
| 12 | 01435-01016 | BOLT | 1001- | |
| 13 | 423-09-12110 | CONNECTOR | 1001- | |
| 14 | 567-87-71451 | TUBE | 1001- | |
| 15 | 566-52-12210 | NIPPLE | 1001- | |
| 16 | 421-09-12540 | ELBOW | 1001- | |
| 17 | 569-52-62130 | CLIP | 1001- | |
| 18 | 01435-01016 | BOLT | 1001- | |
| 19 | 423-09-12110 | CONNECTOR | 1001- | |
| 20 | 567-87-71421 | TUBE | 1001- | |
| 21 | 566-52-12210 | NIPPLE | 1001- | |
| 22 | 421-09-12540 | ELBOW | 1001- | |
| 23 | 205-06-21280 | CLIP | 1001- | |
| 24 | 01435-01016 | BOLT | 1001- | |
| 25 | 423-09-12110 | CONNECTOR | 1001- | |
| 26 | 567-87-71441 | TUBE | 1001- | |
| 27 | 566-52-12210 | NIPPLE | 1001- | |
| 28 | 421-09-12540 | ELBOW | 1001- | |
| 29 | 421-46-12980 | CLIP | 1001- | |
| 30 | 01435-01016 | BOLT | 1001- | |
| 31 | 567-87-71470 | TUBE | 1001- | |
| 32 | 421-09-12540 | ELBOW | 1001- | |
| 33 | 566-52-12190 | PLATE | 1001- | |
| 34 | 01435-01240 | BOLT | 1001- | |
| 35 | 423-09-12110 | CONNECTOR | 1001- | |
| 36 | 205-06-21280 | CLIP | 1001- | |
| 37 | 01435-01016 | BOLT | 1001- | |
| 38 | 567-87-71480 | TUBE | 1001- | |
| 39 | 421-09-12540 | ELBOW | 1001- | |
| 40 | 566-52-12190 | PLATE | 1001- | |
| 41 | 01435-01240 | BOLT | 1001- | |
| 42 | 423-09-12110 | CONNECTOR | 1001- | |
| 43 | 205-06-21280 | CLIP | 1001- | |
| 44 | 01435-01016 | BOLT | 1001- |
