| Item | Part No. | Part Name | Qty | Serial No. |
| SERIAL NO. IN ( ) INDICATES TRANSMISSION SERIAL NO. | ||||
| (561-15-00503) | TRANSMISSION ASS'Y | (1850)- | ||
| (561-15-00502) | TRANSMISSION ASS'Y | (1322)-(1849) | ||
| (561-15-00501) | TRANSMISSION ASS'Y | (1191)-(1321) | ||
| (561-15-00500) | TRANSMISSION ASS'Y | 1501-(1190) | ||
| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.2401 TO 2424. | ||||

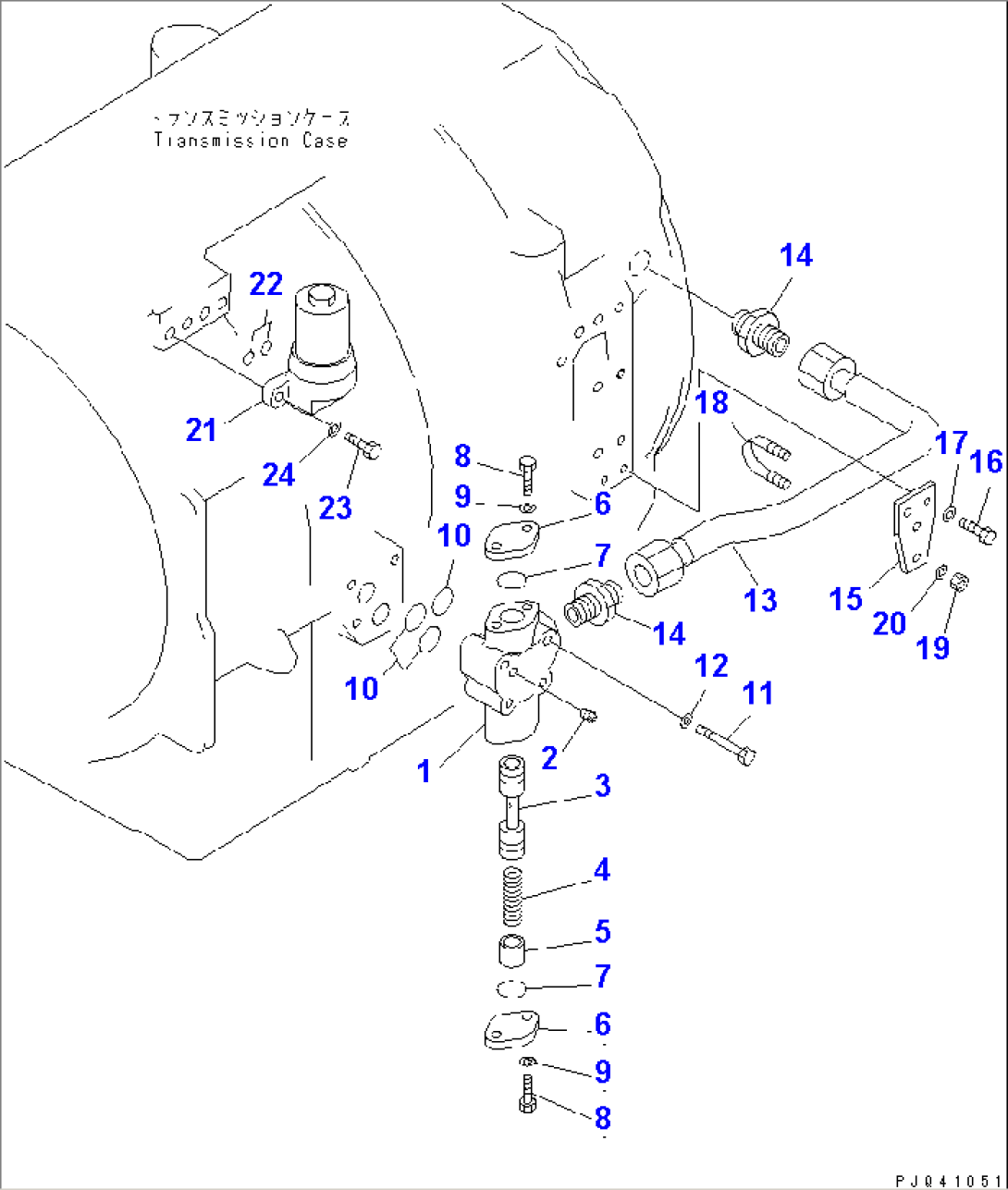

| 561-15-00540 | VALVE ASS'Y,LUBRICATING | 1501- | ||
| 1 | 561-15-44311 | BODY,VALVE | 1501- | |
| 2 | 07042-20108 | PLUG | 1501- | |
| 3 | 561-15-44331 | VALVE | 1501- | |
| 4 | 281-15-14160 | SPRING | 1501- | |
| 5 | 175-15-14140 | GUIDE | 1501- | |
| 6 | 154-15-14150 | COVER | 1501- | |
| 7 | 07000-73032 | O-RING (KIT) | 1501- | |
| 8 | 01010-50825 | BOLT | 1501- | |
| 9 | 01643-30823 | WASHER | 1501- | |
| 10 | 07000-73035 | O-RING (KIT) | 1501- | |
| 11 | 01010-51075 | BOLT | 1501- | |
| 12 | 01643-31032 | WASHER | 1501- | |
| 13 | 561-15-44480 | TUBE | 1501- | |
| 14 | 581-04-12270 | NIPPLE | 1501- | |
| 15 | 561-15-44490 | BRACKET | 1501- | |
| 16 | 01010-51025 | BOLT | 1501- | |
| 17 | 01643-31032 | WASHER | 1501- | |
| 18 | 07283-23442 | CLIP | 1501- | |
| 19 | 01599-01011 | NUT | 1501- | |
| 20 | 01643-31032 | WASHER | 1501- | |
| 21 | 426-15-16510 | FILTER ASS'Y | 1501- | |
| 21 | 209-38-12470 | ELEMENT | 1501- | |
| 21 | 209-38-12480 | O-RING | 1501- | |
| 21 | 209-38-12490 | RING,BACK-UP | 1501- | |
| 22 | 07000-72014 | O-RING (KIT) | 1501- | |
| 23 | 01010-51035 | BOLT | 1501- | |
| 24 | 01643-31032 | WASHER | 1501- |
