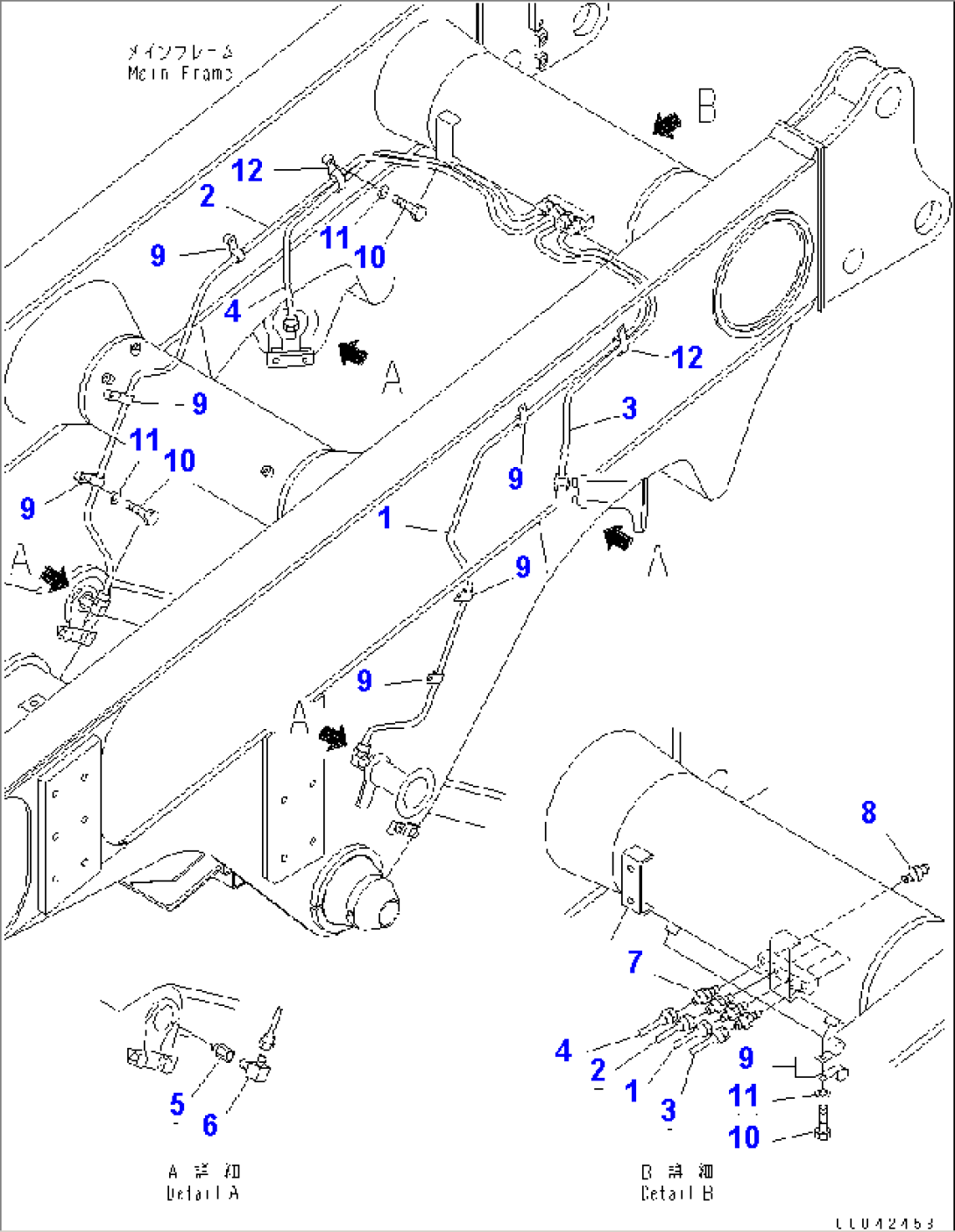

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 566-52-8C210 | TUBE | 11001- | |
| 2 | 566-52-8C220 | TUBE | 11001- | |
| 3 | 566-52-8C230 | TUBE | 11001- | |
| 4 | 566-52-8C240 | TUBE | 11001- | |
| 5 | 566-52-12210 | NIPPLE | 11001- | |
| 6 | 421-09-12540 | ELBOW | 11001- | |
| 7 | 423-09-12110 | CONNECTOR | 11001- | |
| 8 | 07020-00000 | FITTING | 11001- | |
| 9 | 04434-50610 | CLIP | 11001- | |
| 10 | 01010-81016 | BOLT | 11001- | |
| 11 | 01643-31032 | WASHER | 11001- | |
| 12 | 515-35-13910 | CLIP | 11001- |
