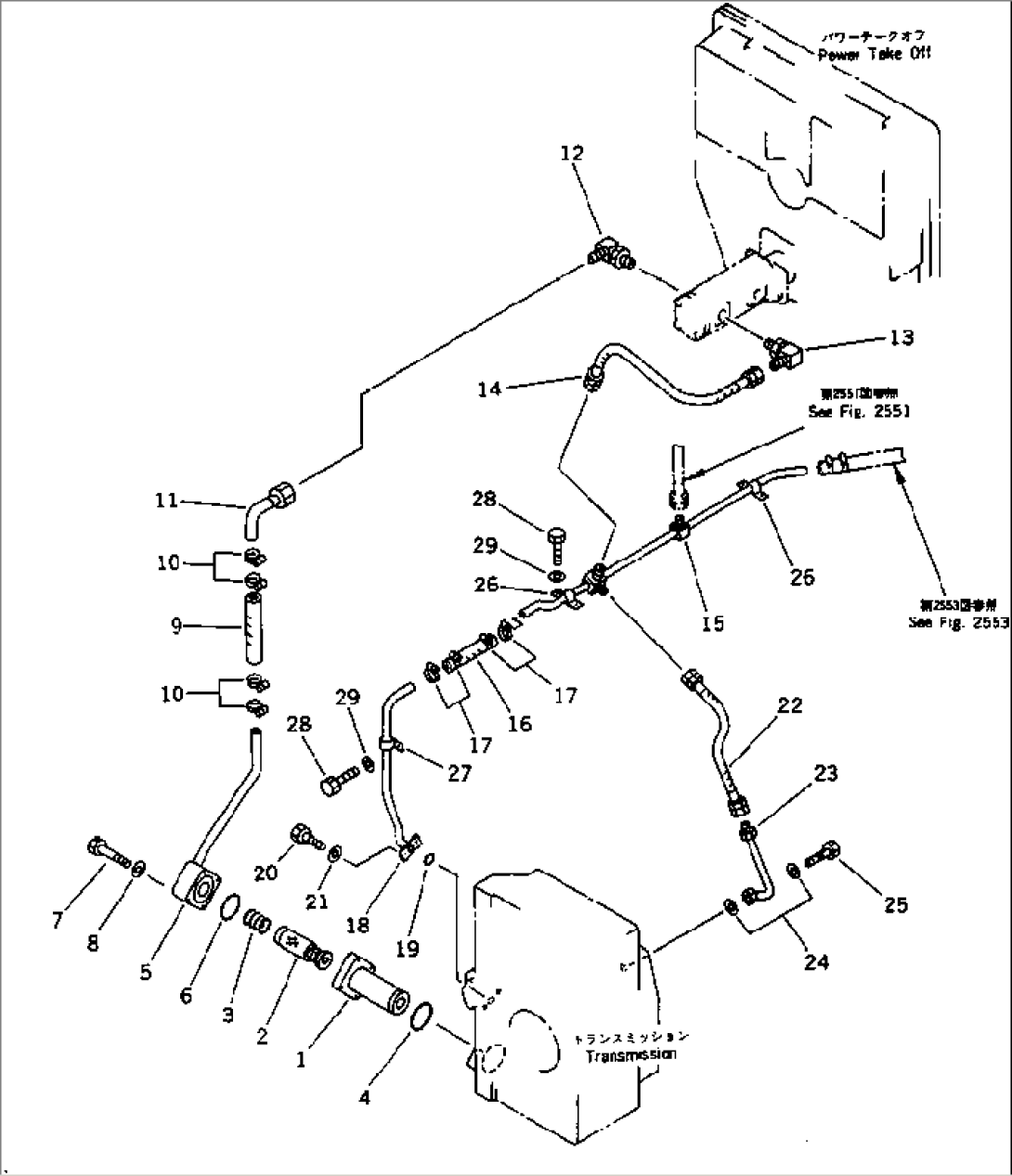

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 238-14-16130 | CASE | 10001-@ | |
| 2 | 125-15-11722 | MAGNET ASS'Y | 10001-@ | |
| 3 | 125-15-11790 | SPRING | 10001-@ | |
| 4 | 07000-12070 | O-RING | 10001-@ | |
| 5 | 262-16-51120 | TUBE | 10001-@ | |
| 6 | 07000-12070 | O-RING | 10001-@ | |
| 7 | 01011-51000 | BOLT | 10001-@ | |
| 8 | 01643-31032 | WASHER | 10001-@ | |
| 9 | 07260-02618 | HOSE | 10001-@ | |
| 10 | 07281-00419 | CLAMP | 10001-@ | |
| 11 | 262-16-51110 | TUBE | 10001-@ | |
| 12 | 234-40-33240 | ELBOW | 10001-@ | |
| 13 | 273-60-15150 | ELBOW | 10001-@ | |
| 14 | 07108-20406 | HOSE | 10001-@ | |
| 15 | 262-16-51140 | TUBE | 10001-10008 | |
| 16 | 07260-21416 | HOSE | 10001-@ | |
| 17 | 07281-00259 | CLAMP | 10001-@ | |
| 18 | 262-16-51150 | TUBE | 10001-10008 | |
| 19 | 07000-12012 | O-RING | 10001-@ | |
| 20 | 01010-51025 | BOLT | 10001-@ | |
| 21 | 01643-31032 | WASHER | 10001-@ | |
| 22 | 07102-20304 | HOSE | 10001-@ | |
| 23 | 262-16-11360 | TUBE | 10001-@ | |
| 24 | 07005-01412 | GASKET | 10001-@ | |
| 25 | 232-14-69110 | BOLT,BOLT | 10001-@ | |
| 26 | 07282-11568 | CLAMP | 10001-@ | |
| 27 | 233-60-29850 | CLIP | 10001-@ | |
| 28 | 01010-50816 | BOLT | 10001-@ | |
| 29 | 01643-30823 | WASHER | 10001-@ |
