| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 07020-00675 | FITTING, GREASE | ||
| 2 | 07214-50510 | CONNECTOR | ||
| 3 | 418-46-18114 | TUBE | ||
| 4 | 418-46-18210 | TUBE | ||
| 5 | 07217-50510 | ELBOW | ||
| 6 | 419-09-11160 | CLIP | ||
| 7 | 01010-51016 | BOLT | ||
| 8 | 01643-31032 | WASHER |
- Главная
- Каталог запчастей
- Колесные погрузчики
- 525 s/n c007001 up
- Frame
- Lubricator (axle support)
Поиск по каталогу

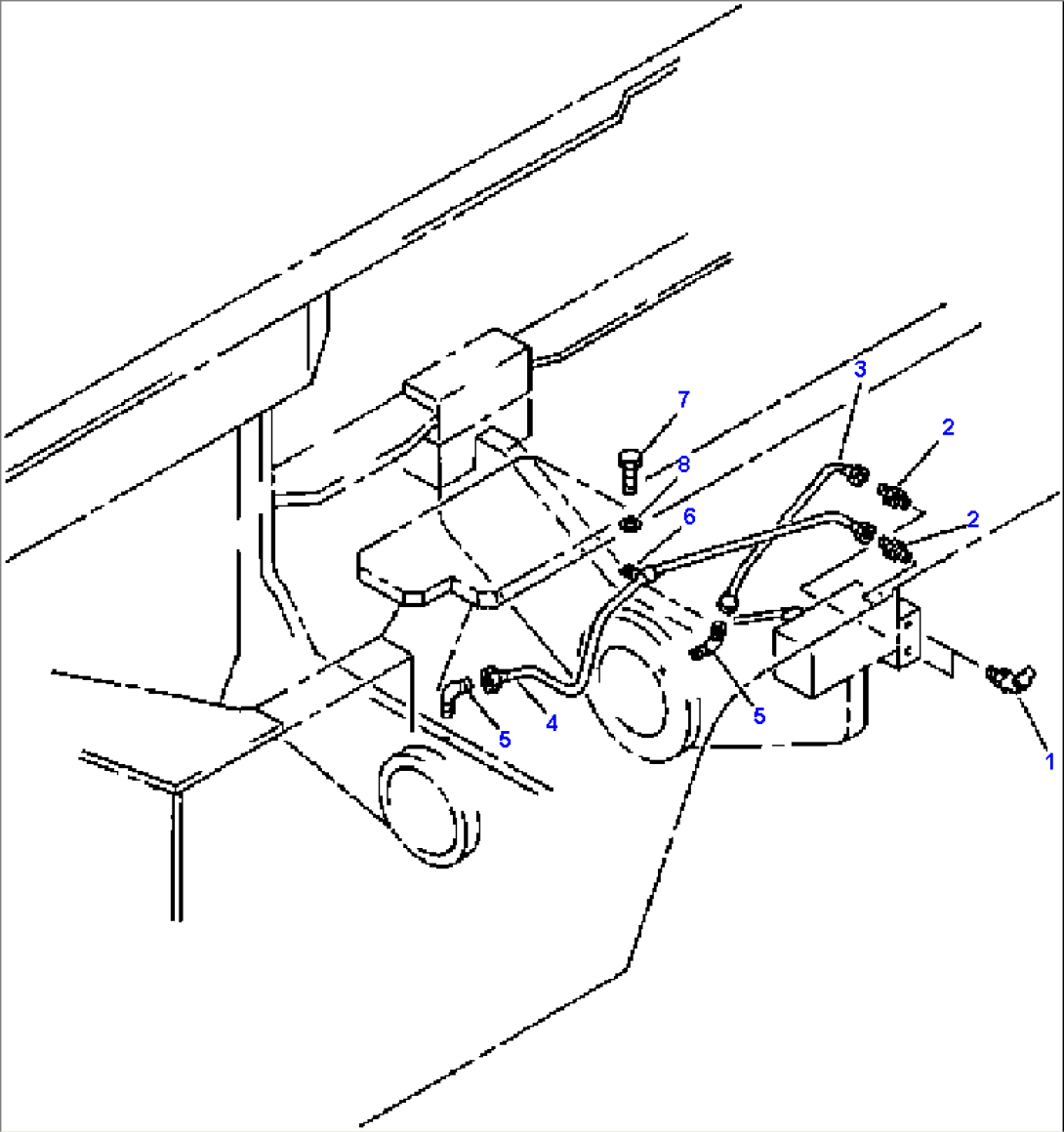

LUBRICATOR (AXLE SUPPORT)
