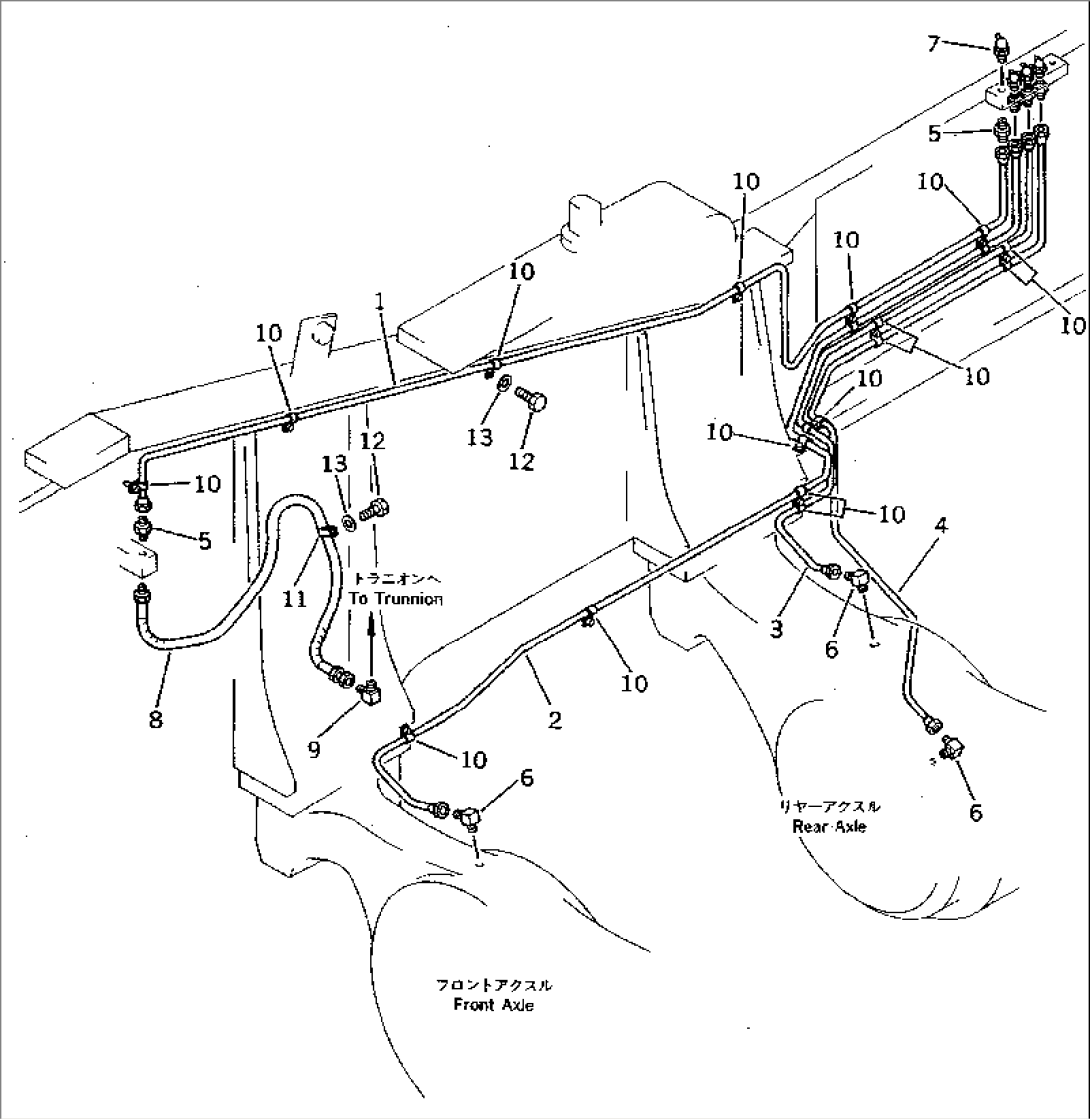

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 426-70-13131 | TUBE | 10001- | |
| 2 | 426-70-13142 | TUBE | 10458- | |
| 3 | 426-70-13152 | TUBE | 10458- | |
| 4 | 426-70-13162 | TUBE | 10458- | |
| 5 | 07214-70710 | CONNECTOR | 10001- | |
| 6 | 07217-70712 | ELBOW | 10001- | |
| 7 | 07020-00900 | FITTING,GREASE | 10001- | |
| 8 | 425-70-13180 | HOSE | 10001- | |
| 9 | 426-70-13270 | ELBOW | 10001- | |
| 10 | 425-70-13120 | CLIP | 10458- | |
| 11 | 198-904-4280 | CLIP | 10001- | |
| 12 | 01010-81016 | BOLT | 10458- | |
| 13 | 01643-31032 | WASHER | 10458- |
