| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 418-46-26110 | TUBE | 50001- | |
| 2 | 418-46-18114 | TUBE | 50001- | |
| 3 | 07214-50510 | CONNECTOR | 50001- | |
| 4 | 07217-50510 | ELBOW | 50001- | |
| 5 | 07020-00675 | FITTING,GREASE | 50001- | |
| 6 | 419-09-11160 | CLIP | 50001- | |
| 7 | 01435-01016 | BOLT | 50001- |
- Главная
- Каталог запчастей
- Колесные погрузчики
- Wa250 3 s/n 50001 52999 (for japan)
- Frame and guard
- Lubricator (rear axle support)(#50001 )
Поиск по каталогу

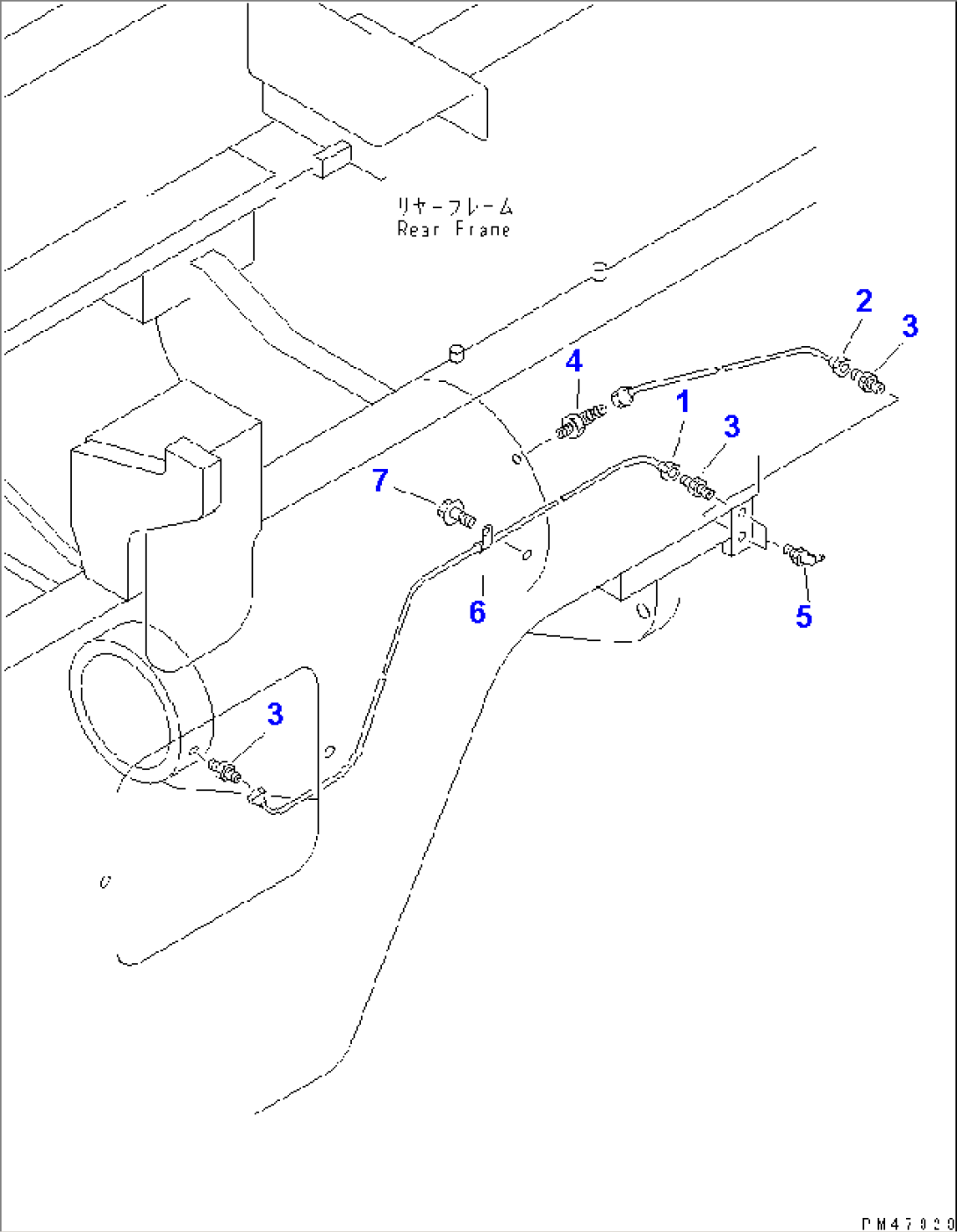

LUBRICATOR (REAR AXLE SUPPORT)(#50001-)
