| Item | Part No. | Part Name | Qty | Serial No. |
| 42A-894-1100 | LUMBER FORK ASS'Y | 10001- | ||
| 1 | 42A-894-1110 | CARRIER | 10001- | |
| 2 | 415-884-1120 | FORK | 10001- | |
| 3 | 415-884-1150 | PIN | 10001- | |
| 4 | 415-884-1170 | SPRING | 10001- | |
| 5 | 415-884-1160 | KNOB | 10001- | |
| 6 | 04025-00420 | PIN,SPRING | 10001- |
- Главная
- Каталог запчастей
- Колесные погрузчики
- Wa50 1 s/n 10001 up
- Work equipment
- Lumber fork (for multi coupler)
Поиск по каталогу

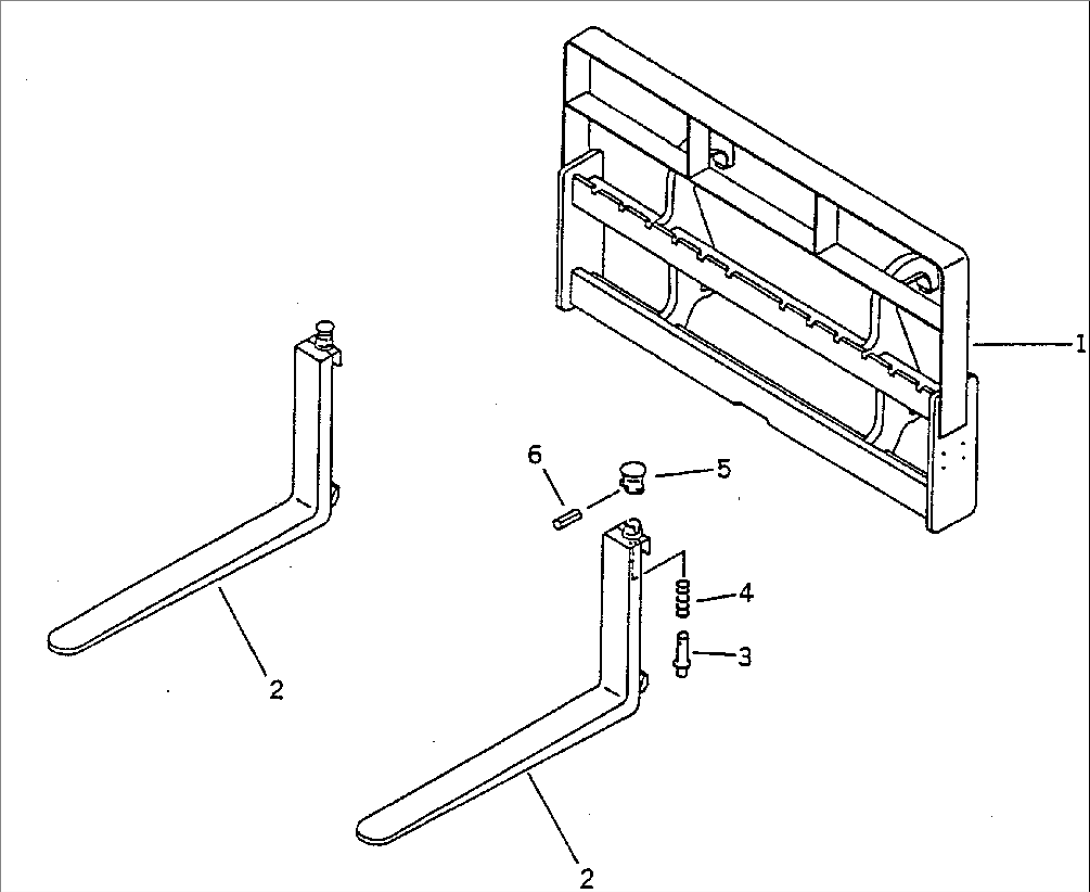

LUMBER FORK (FOR MULTI COUPLER)
