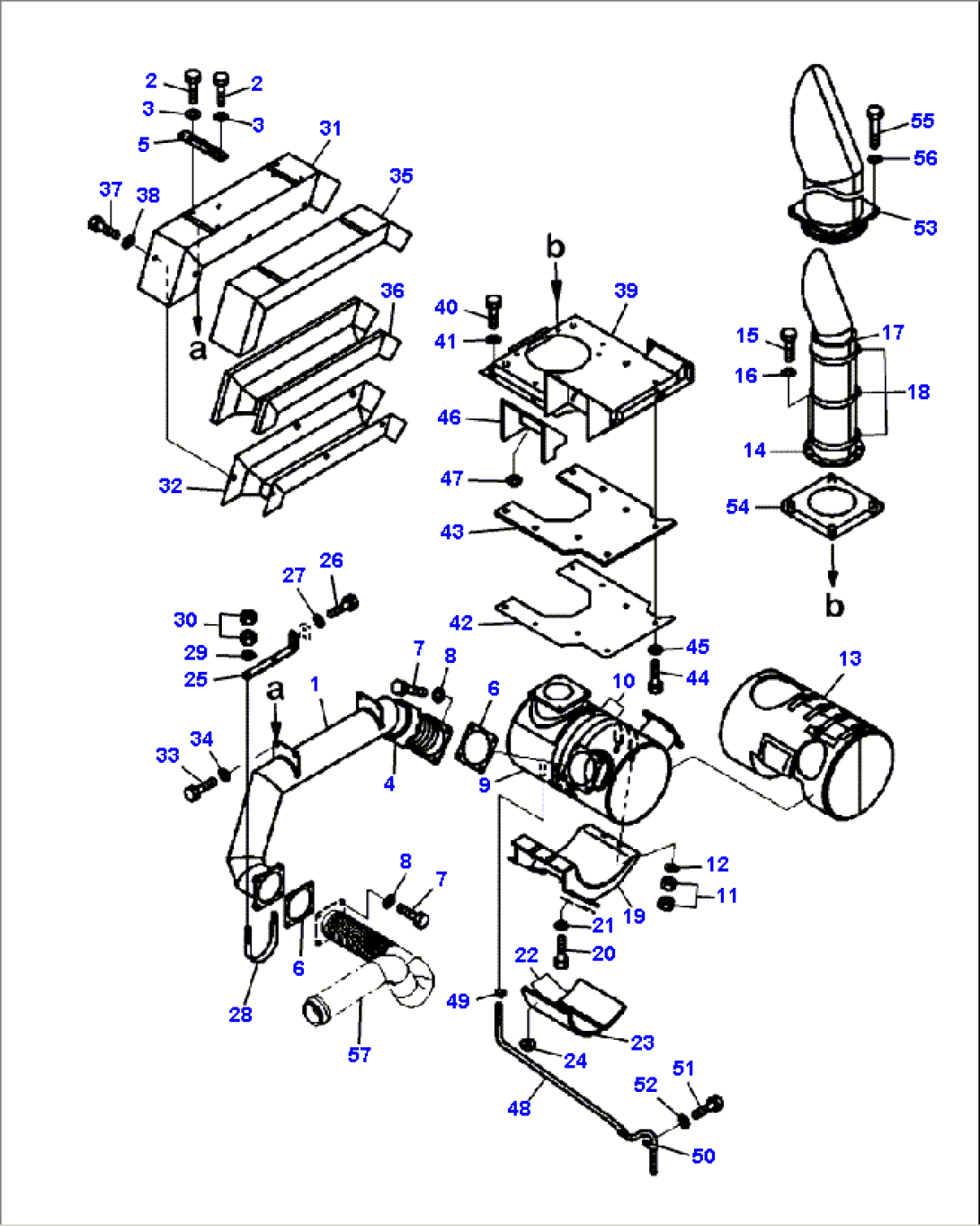

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 56D-02-21142 | TUBE | A11001-- | |
| 2 | 01010-81020 | BOLT | A11001-- | |
| 3 | 01643-31032 | WASHER | A11001-- | |
| 4 | 56D-02-21251 | SHEET | A11001-- | |
| 5 | 56D-02-21721 | BRACKET | A11001-- | |
| 6 | 56B-02-11591 | GASKET | A11001-- | |
| 7 | 01010-81030 | BOLT | A11001-- | |
| 8 | 01643-31032 | WASHER | A11001-- | |
| 9 | 56D-02-21653 | MUFFLER, EXHAUST | A11001-- | |
| 10 | 566-84-6A170 | BAND | A11001-- | |
| 11 | 01582-11210 | NUT | A11001-- | |
| 12 | 01643-31232 | WASHER | A11001-- | |
| 13 | 56D-02-21331 | COVER | A11001-- | |
| 14 | 56D-02-21193 | TUBE | A11001-- | |
| 15 | 01010-81035 | BOLT | A11001-- | |
| 16 | 01643-31032 | WASHER | A11001-- | |
| 17 | 56D-02-21242 | SHEET | A11001-- | |
| 18 | 6218-81-8490 | BAND | A11001-- | |
| 19 | 56D-02-21211 | BRACKET | A11001-- | |
| 20 | 01010-81025 | BOLT | A11001-- | |
| 21 | 01643-31032 | WASHER | A11001-- | |
| 22 | 56D-02-21370 | SHEET | A11001-- | |
| 23 | 56D-02-21380 | SHEET | A11001-- | |
| 24 | 04431-30000 | PLATE | A11001-- | |
| 25 | 56D-02-21350 | BRACKET | A11001-- | |
| 26 | 01010-81025 | BOLT | A11001-- | |
| 27 | 01643-31032 | WASHER | A11001-- | |
| 28 | 56B-02-21810 | U-BOLT | A11001-- | |
| 29 | 01643-31032 | WASHER | A11001-- | |
| 30 | 01580-11008 | NUT | A11001-- | |
| 31 | 56D-02-21571 | COVER | A11001-- | |
| 32 | 56D-02-21582 | COVER | A11001-- | |
| 33 | 01010-81020 | BOLT | A11001-- | |
| 34 | 01643-31032 | WASHER | A11001-- | |
| 35 | 56D-02-21522 | SHEET | A11001-- | |
| N/I | 56D-02-28150 | SHEET | A11001-- | |
| 36 | 56D-02-21532 | SHEET | A11001-- | |
| 37 | 01010-81016 | BOLT | A11001-- | |
| 38 | 01643-31032 | WASHER | A11001-- | |
| 39 | 56D-02-21642 | COVER | A11001-- | |
| 40 | 01010-81020 | BOLT | A11001-- | |
| 41 | 01643-31032 | WASHER | A11001-- | |
| 42 | 56D-02-21622 | PLATE | A11001-- | |
| 43 | 56D-02-21632 | SHEET | A11001-- | |
| 44 | 01010-80816 | BOLT | A11001-- | |
| 45 | 01643-30823 | WASHER | A11001-- | |
| 46 | 56D-02-21270 | SHEET | A11001-- | |
| 47 | 04431-30000 | PLATE | A11001-- | |
| 48 | 07286-01465 | HOSE | A11001-- | |
| 49 | 07285-00180 | CLIP | A11001-- | |
| 50 | 04434-51812 | CLIP | A11001-- | |
| 51 | 01010-81016 | BOLT | A11001-- | |
| 52 | 01643-31032 | WASHER | A11001-- | |
| 53 | 56D-02-21321 | COVER | A11001-- | |
| 54 | 56D-02-21810 | BRACKET | A11001-- | |
| 55 | 01010-81075 | BOLT | A11001-- | |
| 56 | 01643-31032 | WASHER | A11001-- | |
| 57 | TUBE (SEE FIG. B0130-01A0 ) | A11001-- | ||
| F1 - ITEM NO LONGER REQUIRED DUE TO CHANGE MADE TO EXHAUST TUBE COVER TO IMPROVE DURABILITY. |
