| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 56D-02-11250 | PLATE | A11001-- | |
| 2 | 56B-02-11591 | GASKET | A11001-- | |
| 3 | 01010-81030 | BOLT | A11001-- | |
| 4 | 01643-31032 | WASHER | A11001-- | |
| 5 | 56D-02-21820 | COVER | A11001-- | |
| 6 | 01010-81025 | BOLT | A11001-- | |
| 7 | 01643-31032 | WASHER | A11001-- |
- Главная
- Каталог запчастей
- Самосвалы
- Hm300 2 s/n a11001 up
- Guard
- M3270 02a0 fender r.h. shutter plate (without body exhaust heating)
Поиск по каталогу

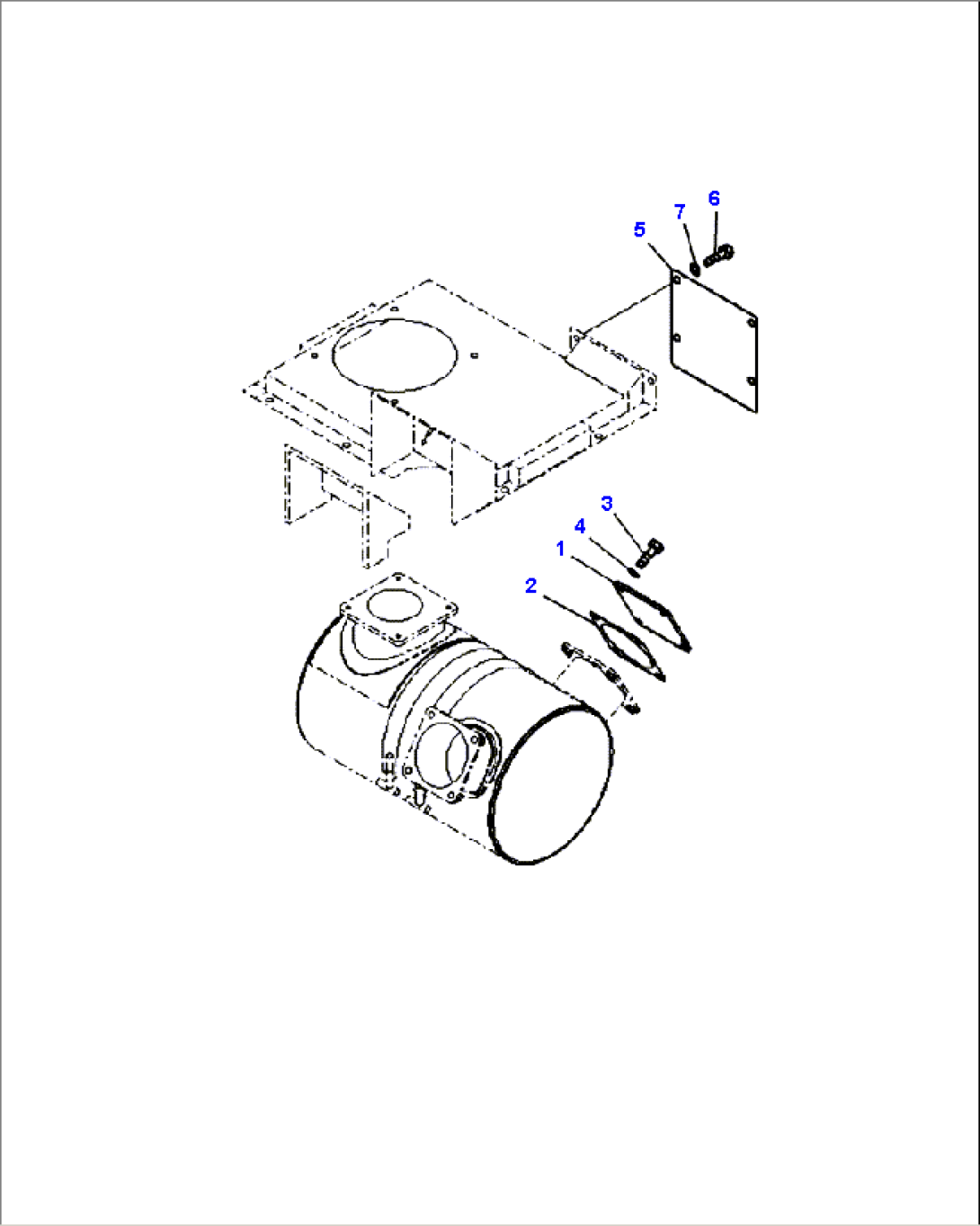

M3270-02A0 FENDER R.H. SHUTTER PLATE (WITHOUT BODY EXHAUST HEATING)
