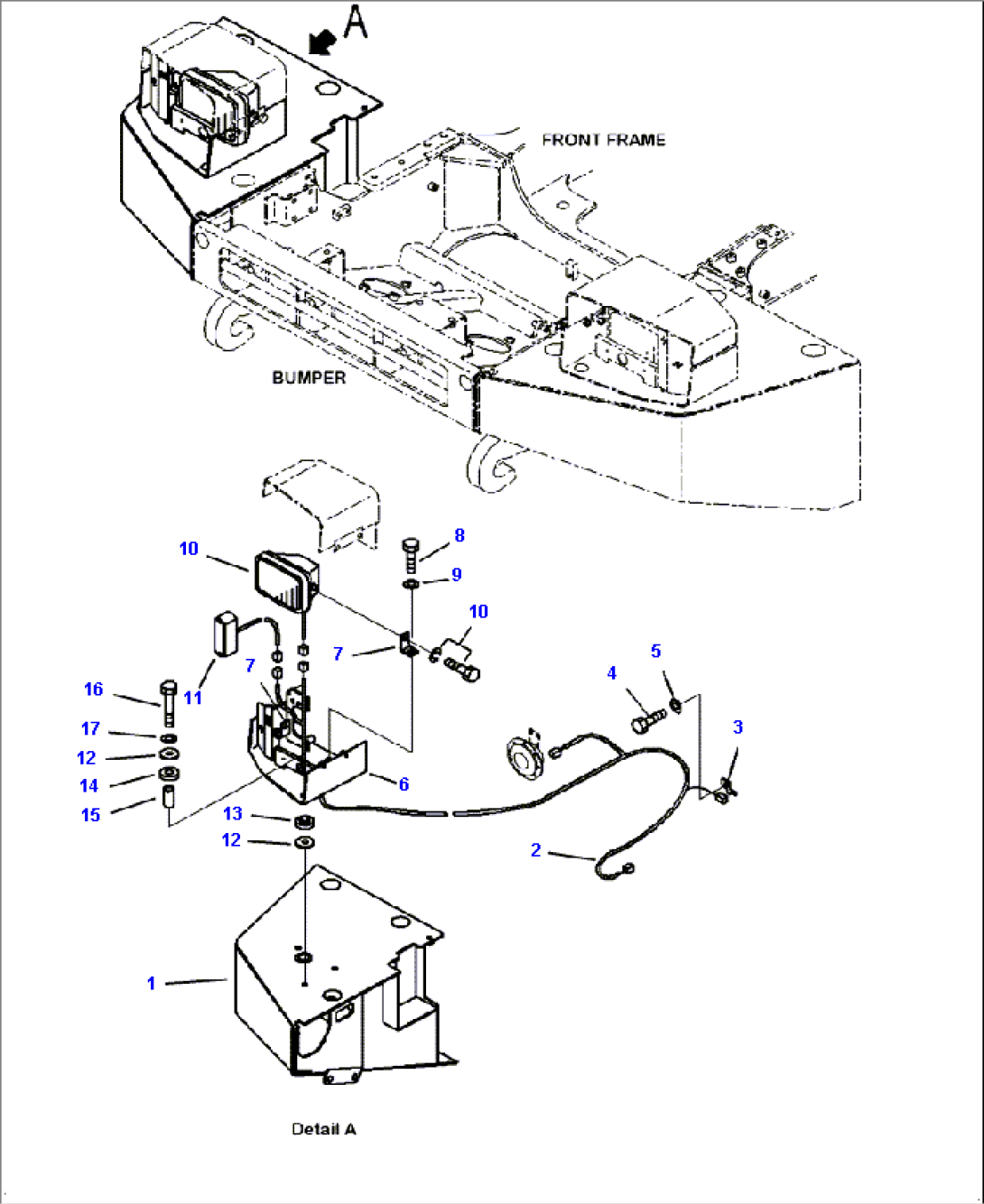

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 56D-46-21435 | PLATE | A11001-- | |
| 2 | 56D-06-24422 | WIRING HARNESS | A11001-- | |
| 3 | 08053-01510 | CLIP | A11001-- | |
| 4 | 01010-81016 | BOLT | A11001-- | |
| 5 | 01643-31032 | WASHER | A11001-- | |
| 6 | 56D-46-21843 | BRACKET | A11001-- | |
| 7 | 56C-46-11890 | PLATE | A11001-- | |
| 8 | 01010-80820 | BOLT | A11001-- | |
| 9 | 01643-30823 | WASHER | A11001-- | |
| 10 | 424-06-23210 | LAMP | A11001-- | |
| N/I | 08056-00371 | CONNECTOR BODY ASSEMBLY, MALE | A11001-- | |
| N/I | 424-06-23220 | LENS | A11001-- | |
| N/I | 424-06-23230 | BULB, 75/70 WATT | A11001-- | |
| 11 | 56D-06-21810 | LAMP | A11001-- | |
| N/I | 56D-06-21820 | LENS | A11001-- | |
| N/I | 56D-06-21830 | LENS | A11001-- | |
| N/I | 56D-06-21840 | SCREW | A11001-- | |
| N/I | 41G-06-13230 | BULB, 5 WATT | A11001-- | |
| N/I | 08105-12420 | BULB, 25 WATT | A11001-- | |
| N/I | (NSS) | CONNECTOR | A11001-- | |
| 12 | 419-43-17920 | WASHER | A11001-- | |
| 13 | 419-43-17930 | CUSHION | A11001-- | |
| 14 | 415-64-13130 | CUSHION | A11001-- | |
| 15 | 417-62-14130 | SPACER | A11001-- | |
| 16 | 01010-81255 | BOLT | A11001-- | |
| 17 | 01643-31232 | WASHER | A11001-- |
