| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 56B-89-22120 | BRACKET, L.H. | ||
| 2 | 56B-89-22130 | BRACKET, R.H. | ||
| 3 | 01010-81640 | BOLT | ||
| 4 | 01643-31645 | WASHER | ||
| 5 | 56B-89-22190 | GUARD | ||
| 6 | 01010-81650 | BOLT | ||
| 7 | 01643-31645 | WASHER |
- Главная
- Каталог запчастей
- Самосвалы
- Hm400 2 s/n a11001 up
- Guard
- M3820 02a0 guard front drive shaft
Поиск по каталогу

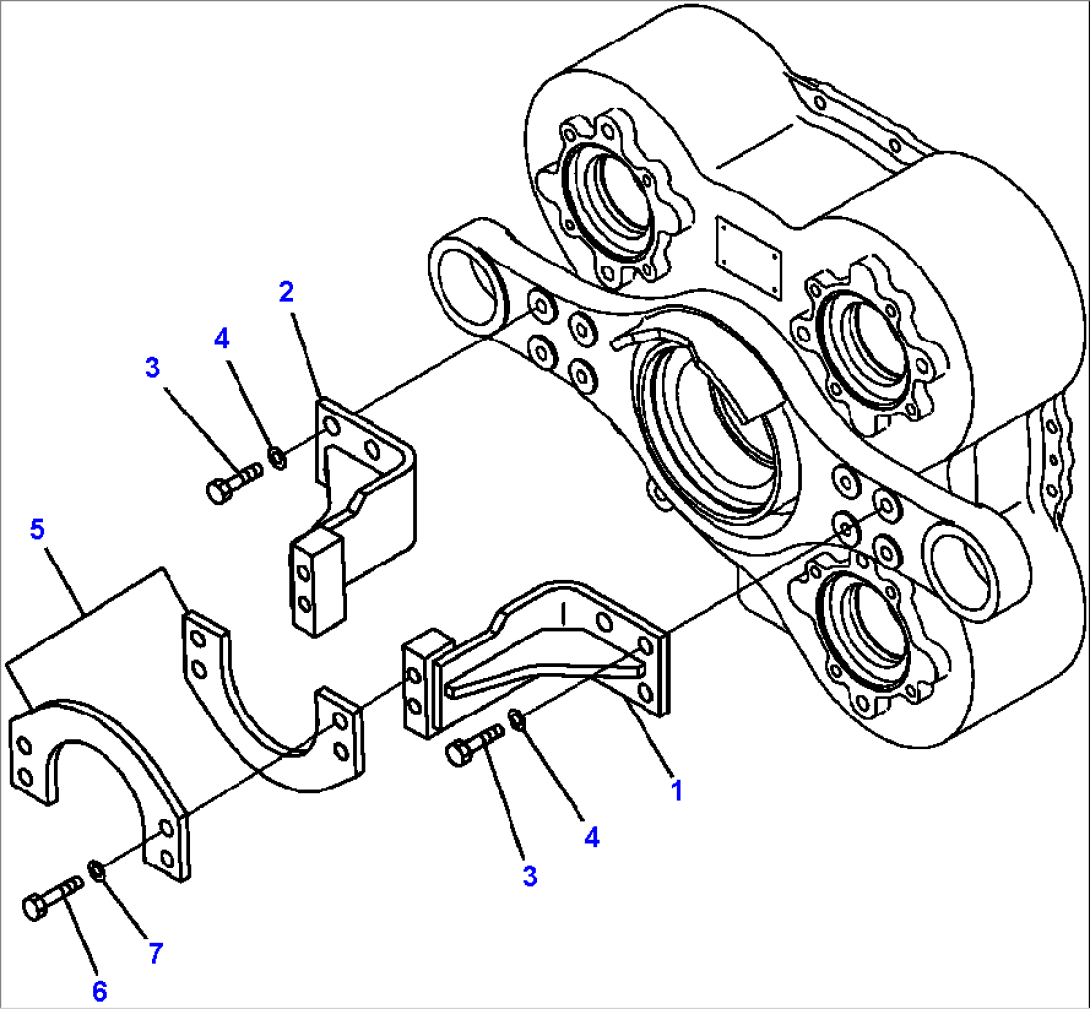

M3820-02A0 GUARD FRONT DRIVE SHAFT
