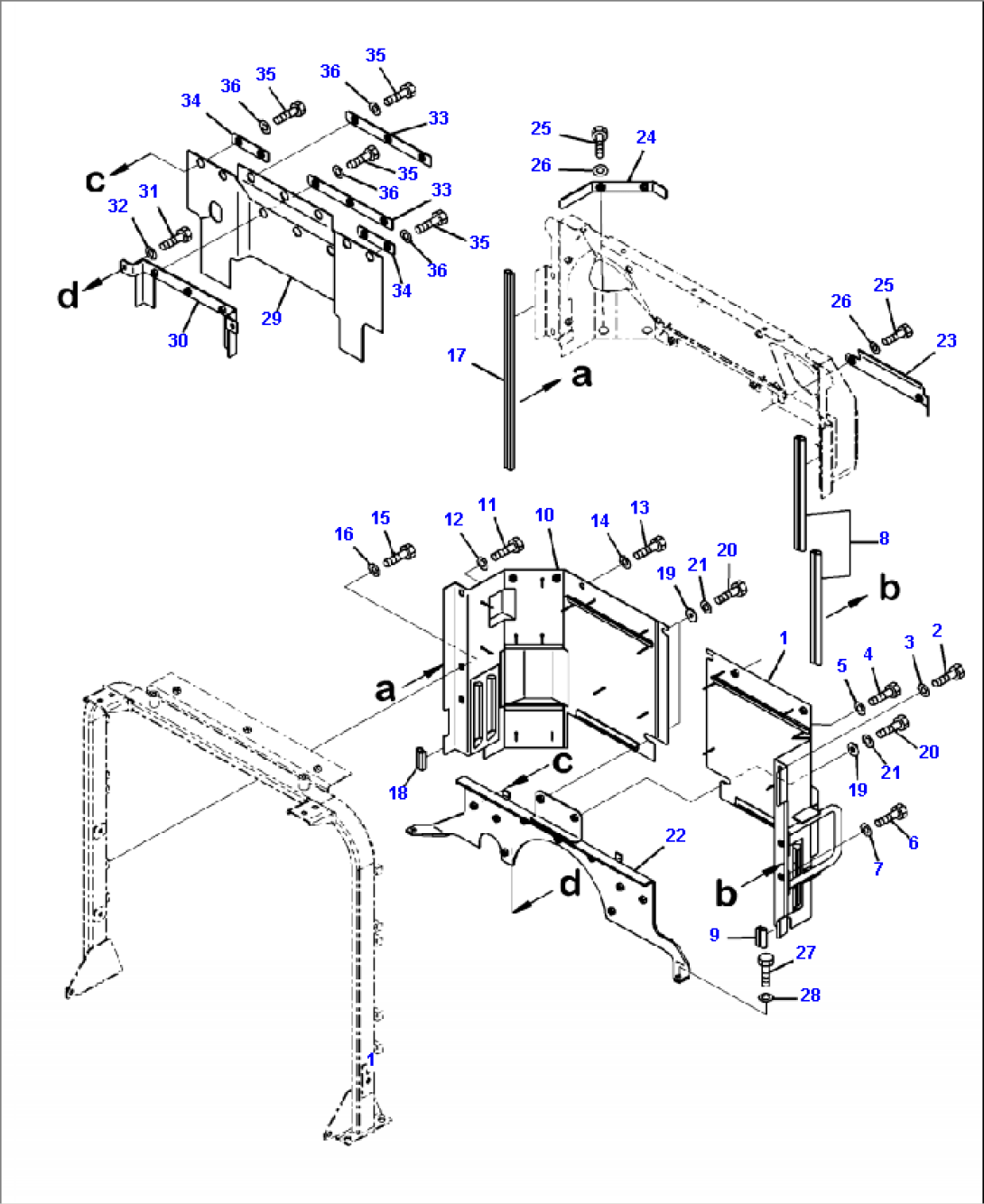

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 421-54-43460 | COVER | A47001-- | |
| 2 | 01010-81016 | BOLT | A47001-- | |
| 3 | (NSS) | WASHER | A47001-- | |
| 4 | 01010-D1020 | BOLT | A47001-- | |
| 5 | (NSS) | WASHER | A47001-- | |
| 6 | 01010-81220 | BOLT | A47001-- | |
| 7 | 01643-31232 | WASHER | A47001-- | |
| 8 | 421-54-42490 | SEAL, DOOR | A47001-- | |
| 9 | 23S-54-27450 | SEAL, DOOR | A47001-- | |
| 10 | 421-54-43470 | COVER | A47001-- | |
| 11 | 01010-81016 | BOLT | A47001-- | |
| 12 | (NSS) | WASHER | A47001-- | |
| 13 | 01010-D1020 | BOLT | A47001-- | |
| 14 | (NSS) | WASHER | A47001-- | |
| 15 | 01010-81220 | BOLT | A47001-- | |
| 16 | 01643-31232 | WASHER | A47001-- | |
| 17 | 421-54-41320 | SEAL, DOOR | A47001-- | |
| 18 | 23S-54-27450 | SEAL, DOOR | A47001-- | |
| 19 | 424-54-14220 | WASHER | A47001-- | |
| 20 | 01010-D1030 | BOLT | A47001-- | |
| 21 | (NSS) | WASHER | A47001-- | |
| 22 | 421-54-43480 | BRACKET | A47001-- | |
| 23 | 421-54-42460 | PLATE | A47001-- | |
| 24 | 421-54-42470 | PLATE | A47001-- | |
| 25 | 01010-D1020 | BOLT | A47001-- | |
| 26 | (NSS) | WASHER | A47001-- | |
| 27 | 01010-81025 | BOLT | A47001-- | |
| 28 | (NSS) | WASHER | A47001-- | |
| 29 | 421-54-43780 | SHEET | A47001-- | |
| 30 | 421-54-43380 | PLATE | A47001-- | |
| 31 | 01010-81025 | BOLT | A47001-- | |
| 32 | (NSS) | WASHER | A47001-- | |
| 33 | 421-54-43360 | PLATE | A47001-- | |
| 34 | 421-54-43370 | PLATE | A47001-- | |
| 35 | 01010-81025 | BOLT | A47001-- | |
| 36 | (NSS) | WASHER | A47001-- |
