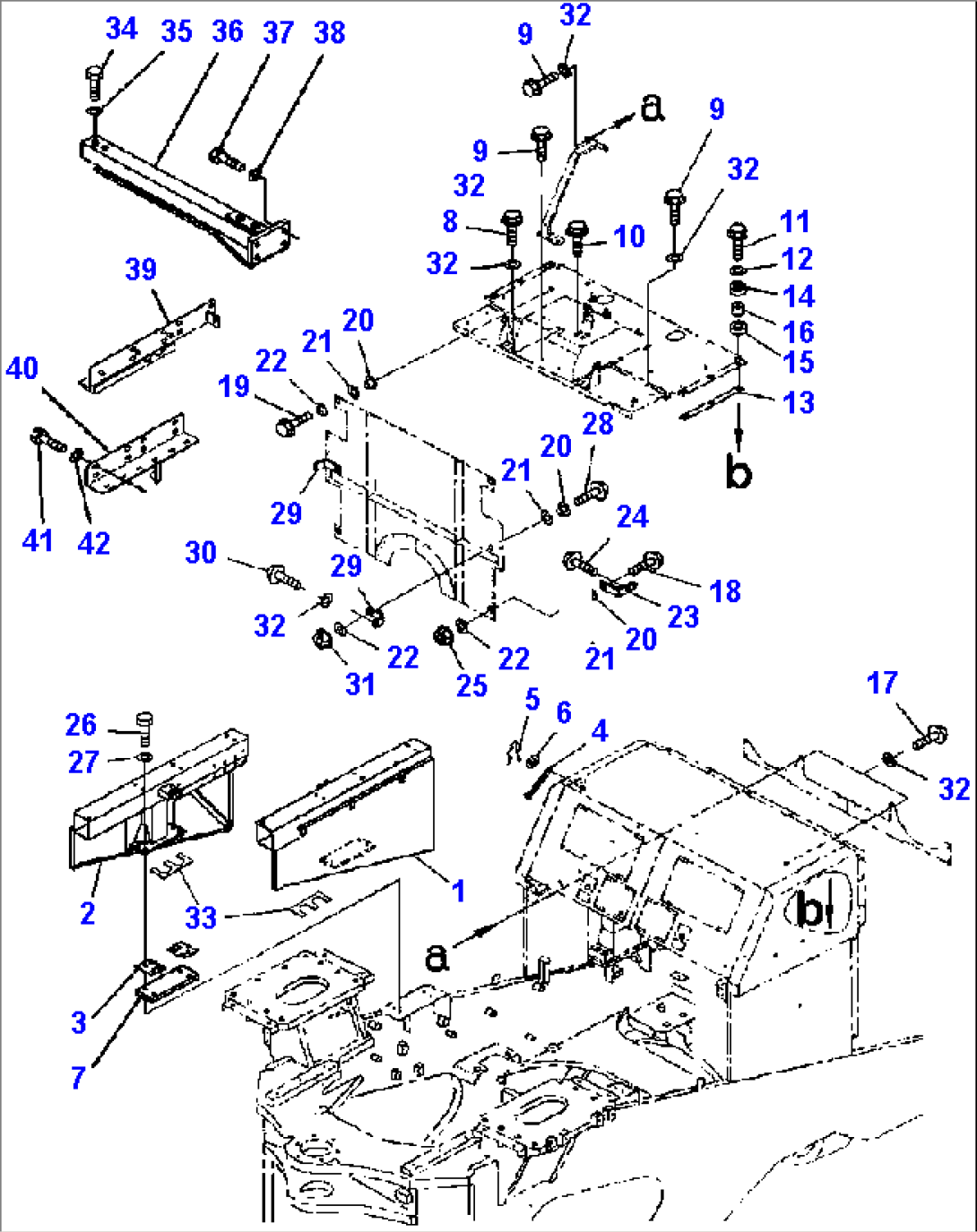

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 427-54-21771 | COVER, LEFT | A50001-- | |
| 2 | 427-54-21444 | COVER, RIGHT | A50001-- | |
| 3 | 427-54-22370 | SPACER | A50001-- | |
| 4 | 41F-54-11120 | BAR | A50001-- | |
| 5 | 04052-10833 | PIN | A50001-- | |
| 6 | 01641-20812 | WASHER | A50001-- | |
| 7 | 427-54-22350 | SPACER | A50001-- | |
| 8 | 01010-81230 | BOLT | A50014-- | |
| OR | ||||
| 8 | 01435-01225 | BOLT | A50001-A50013- | |
| 9 | 01010-81230 | BOLT | A50014-- | |
| OR | ||||
| 9 | 01435-01225 | BOLT | A50001-A50013- | |
| 10 | 01435-00816 | BOLT | A50001-- | |
| 11 | 01435-01250 | BOLT | A50001-- | |
| 12 | 419-43-17920 | WASHER | A50001-- | |
| 13 | 427-54-21710 | CUSHION | A50001-- | |
| 14 | 427-54-21720 | CUSHION | A50001-- | |
| 15 | 427-54-21730 | CUSHION | A50001-- | |
| 16 | 427-54-21740 | SPACER | A50001-- | |
| 17 | 01010-81230 | BOLT | A50014-- | |
| OR | ||||
| 17 | 01435-01225 | BOLT | A50001-A50013- | |
| 18 | 01435-01245 | BOLT | A50001-- | |
| 19 | 01435-01235 | BOLT | A50001-- | |
| 20 | 427-54-11860 | SPACER | A50001-- | |
| 21 | 415-46-11380 | CUSHION | A50001-- | |
| 22 | 01640-22232 | WASHER | A50001-- | |
| 23 | 427-54-21411 | PLATE | A50001-- | |
| 24 | 01435-01230 | BOLT | A50001-- | |
| 25 | 01584-01210 | NUT | A50001-- | |
| 26 | 01010-81645 | BOLT | A50001-- | |
| 27 | 01643-31645 | WASHER | A50001-- | |
| 28 | 01435-01240 | BOLT | A50001-- | |
| 29 | 427-54-21670 | BRACKET | A50001-- | |
| 30 | 01010-81230 | BOLT | A50014-- | |
| OR | ||||
| 30 | 01435-01230 | BOLT | A50001-A50013- | |
| 31 | 01584-01210 | NUT | A50001-- | |
| 32 | 01643-31232 | WASHER | A50001-- | |
| 33 | 427-54-A2190 | SHIM | A50032-- | |
| 34 | 01010-81640 | BOLT | A50001-- | |
| 35 | 01643-31645 | WASHER | A50001-- | |
| 36 | 427-S95-4382 | BRACKET REWORK (AUTO-GREASE) | A50001-- | |
| 37 | 01010-81245 | BOLT | A50001-- | |
| 38 | 01643-31232 | WASHER | A50001-- | |
| 39 | 427-54-22341 | BRACKET, R.H. | A50001-- | |
| 40 | 427-54-22331 | BRACKET, L.H. | A50001-- | |
| 41 | 01010-81430 | BOLT | A50001-- | |
| 42 | 01643-31445 | WASHER | A50001-- | |
| F1 - USE ITEMS 3 AND 7 IF GAP BETWEEN COVER MOUNTING PLATE AND SPACER IS MORE THAN 0.5 MM. |
