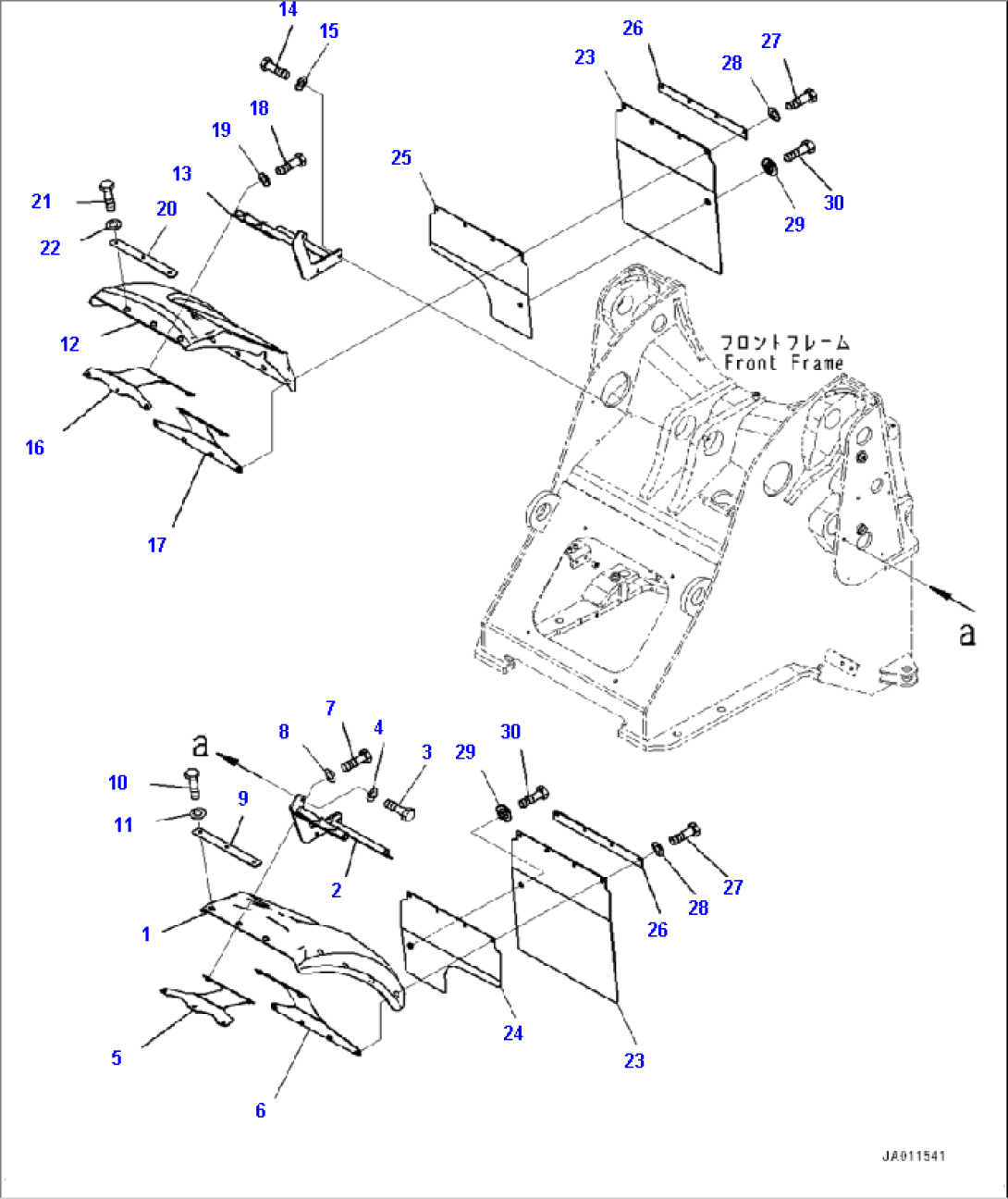

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 418-54-54410 | FENDER | ||
| 2 | 418-U77-5150 | BRACKET | ||
| 3 | 01010-D1030 | BOLT | ||
| 4 | 01643-71032 | WASHER | ||
| 5 | 419-U77-5882 | PLATE | ||
| 6 | 419-U77-5851 | PLATE | ||
| 7 | 01010-D1030 | BOLT | ||
| 8 | 01643-71032 | WASHER | ||
| 9 | 419-54-54890 | PLATE | ||
| 10 | 01010-D1030 | BOLT | ||
| 11 | 01643-71032 | WASHER | ||
| 12 | 418-54-54420 | FENDER | ||
| 13 | 418-U77-5160 | BRACKET | ||
| 14 | 01010-D1030 | BOLT | ||
| 15 | 01643-71032 | WASHER | ||
| 16 | 419-U77-5892 | PLATE | ||
| 17 | 419-U77-5861 | PLATE | ||
| 18 | 01010-D1030 | BOLT | ||
| 19 | 01643-71032 | WASHER | ||
| 20 | 419-54-54890 | PLATE | ||
| 21 | 01010-D1030 | BOLT | ||
| 22 | 01643-71032 | WASHER | ||
| 23 | 419-54-54881 | SHEET | ||
| 24 | 419-54-54861 | PLATE | ||
| 25 | 419-54-54871 | PLATE | ||
| 26 | 419-U77-5190 | PLATE | ||
| 27 | 01010-D1035 | BOLT | ||
| 28 | 01643-71032 | WASHER | ||
| 29 | 203-54-55660 | COLLAR | ||
| 30 | 01010-81025 | BOLT |
