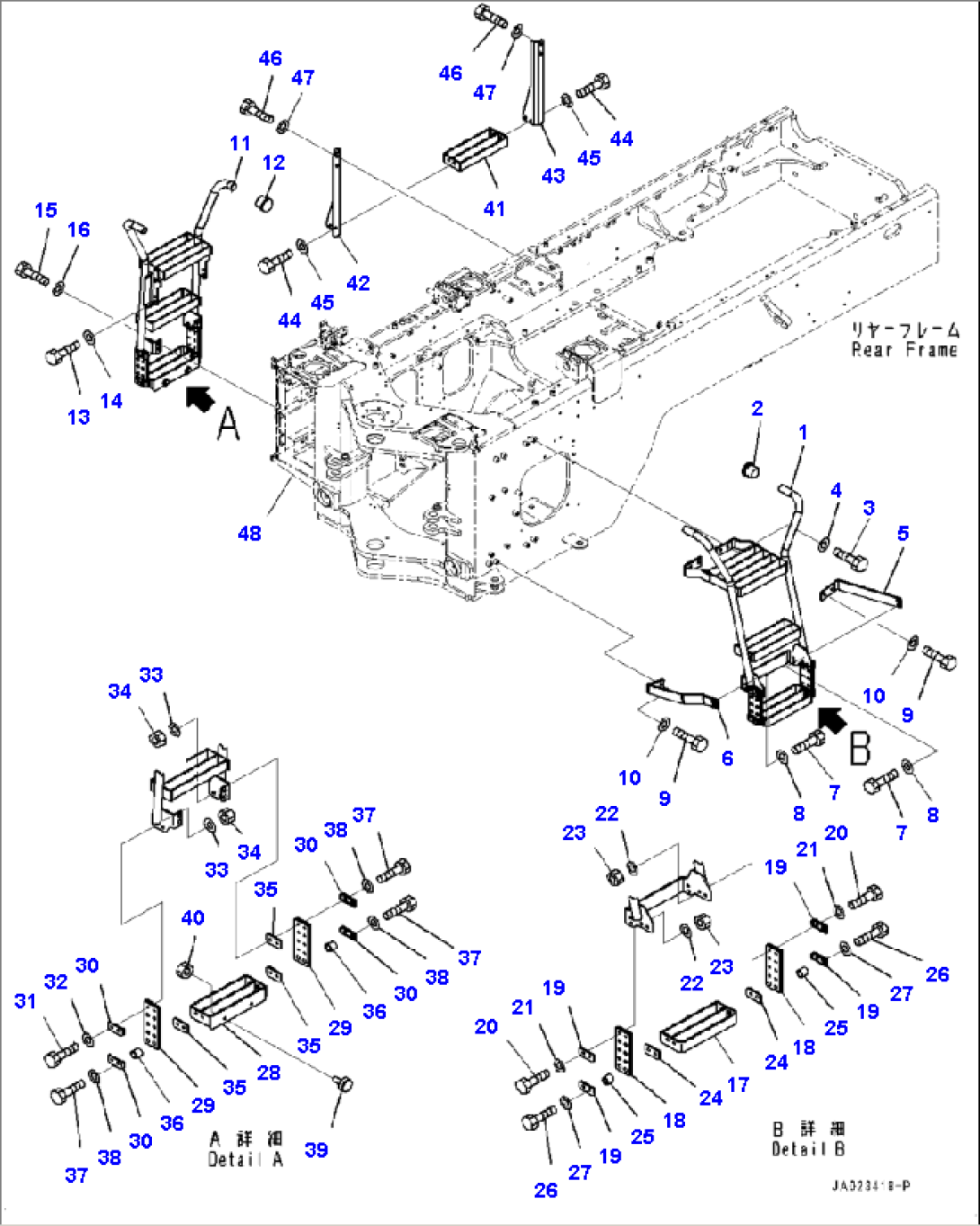

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 419-54-64290 | LADDER | ||
| 2 | 416-54-44410 | CAP | ||
| 3 | 01010-81225 | BOLT | ||
| 4 | 01643-31232 | WASHER | ||
| 5 | 419-54-64470 | PLATE | ||
| 6 | 419-54-64460 | PLATE | ||
| 7 | 01010-D1030 | BOLT | ||
| 8 | 01643-71032 | WASHER | ||
| 9 | 01010-81225 | BOLT | ||
| 10 | 01643-31232 | WASHER | ||
| 11 | 419-54-64190 | LADDER | ||
| 12 | 416-54-44410 | CAP | ||
| 13 | 01010-D1230 | BOLT | ||
| 14 | 01643-71232 | WASHER | ||
| 15 | 01010-D1225 | BOLT | ||
| 16 | 01643-71232 | WASHER | ||
| 17 | 423-54-64971 | STEP | ||
| 18 | 423-54-54260 | RUBBER | ||
| 19 | 428-T86-1650 | PLATE | ||
| 20 | 01010-D1045 | BOLT | ||
| 21 | 01643-71032 | WASHER | ||
| 22 | 01643-71032 | WASHER | ||
| 23 | 423-54-54110 | NUT | ||
| 24 | 423-54-54240 | PLATE | ||
| 25 | 423-54-54280 | SPACER | ||
| 26 | 01010-D1050 | BOLT | ||
| 27 | 01643-71032 | WASHER | ||
| 28 | 418-54-61131 | STEP | ||
| 29 | 423-54-54260 | RUBBER | ||
| 30 | 428-T86-1650 | PLATE | ||
| 31 | 01010-D1045 | BOLT | ||
| 32 | 01643-71032 | WASHER | ||
| 33 | 01643-71032 | WASHER | ||
| 34 | 423-54-54110 | NUT | ||
| 35 | 423-54-54240 | PLATE | ||
| 36 | 423-54-54280 | SPACER | ||
| 37 | 01010-D1050 | BOLT | ||
| 38 | 01643-71032 | WASHER | ||
| 39 | 23C-54-66610 | STOPPER | ||
| 40 | 01580-11008 | NUT | ||
| 41 | 423-54-64971 | STEP | ||
| 42 | 417-46-52171 | PLATE | ||
| 43 | 417-46-52181 | PLATE | ||
| 44 | 01010-D1030 | BOLT | ||
| 45 | 01643-71032 | WASHER | ||
| 46 | 01010-81225 | BOLT | ||
| 47 | 01643-31232 | WASHER | ||
| 48 | BRACKET ASSEMBLY (SEE FIG. D0500-001003 ) |
