| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 207-54-76161 | BRACKET | A86001- | |
| 2 | 207-54-76171 | BRACKET | A86001- | |
| 3 | 01010-81050 | BOLT | A86001- | |
| 4 | 01643-31032 | WASHER | A86001- | |
| 5 | 207-03-75590 | PLATE | A86001- | |
| 6 | 195-03-41380 | CUSHION | A86001- | |
| 7 | 207-54-76190 | SHEET | A86001- |
- Главная
- Каталог запчастей
- Гусеничные экскаваторы
- Pc300hd 7e0 s/n a86001 up
- Guard
- Machine cab (left side door) (2/3) (engine oil remote mount bracket)
Поиск по каталогу

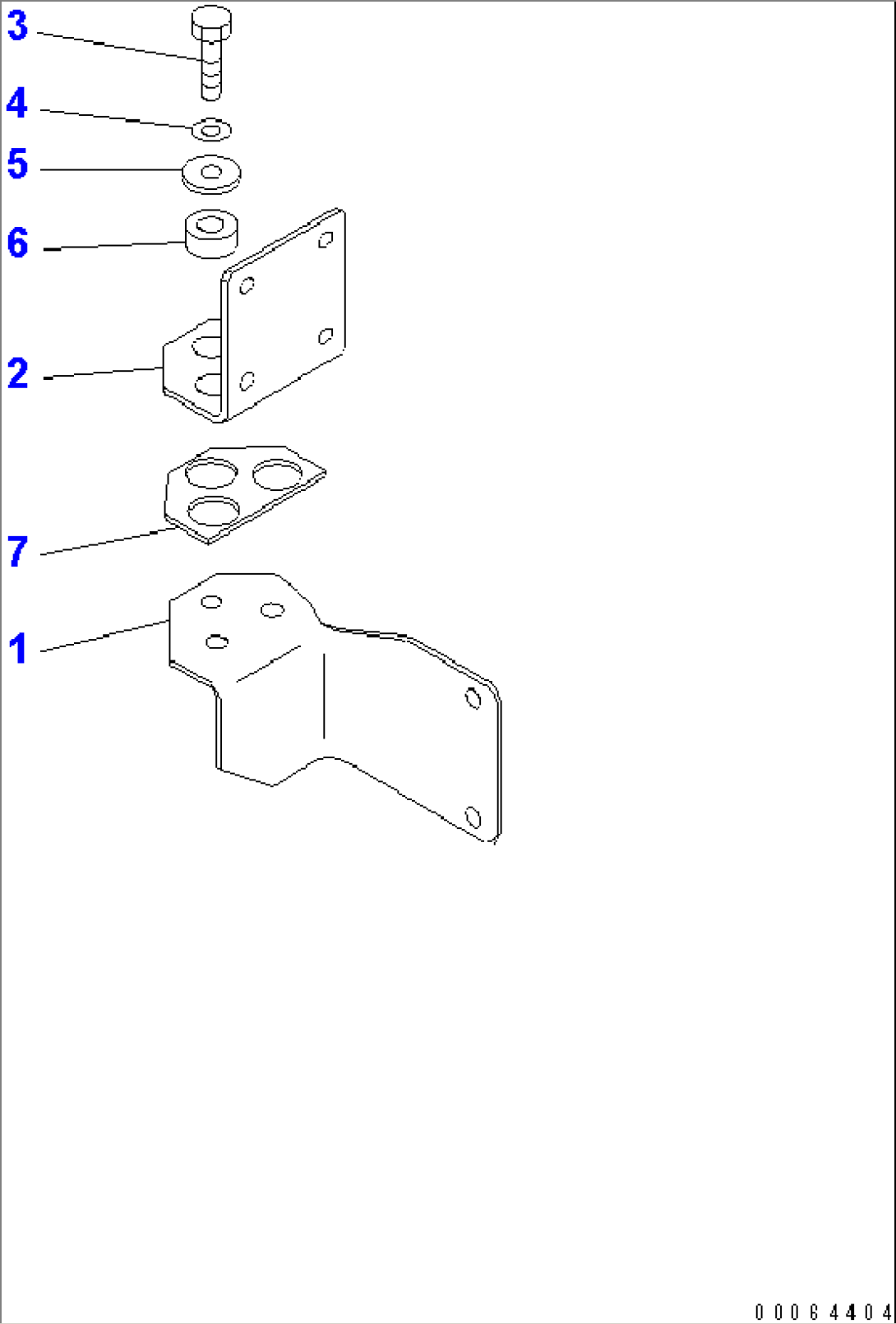

MACHINE CAB (LEFT SIDE DOOR) (2/3) (ENGINE OIL REMOTE MOUNT BRACKET)
