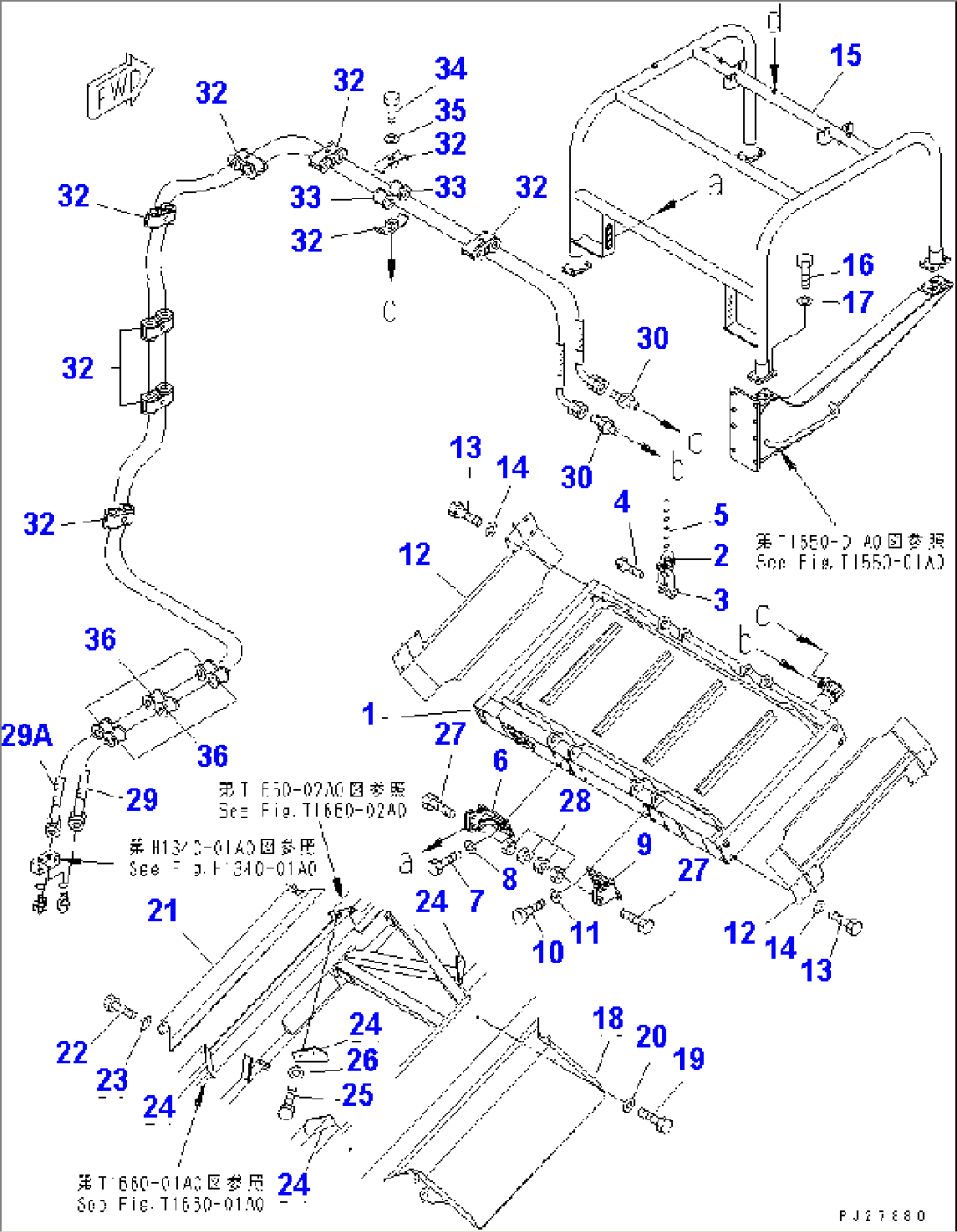

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 8295-78-1100 | MAGNET | 1001- | |
| 8295-60-1130 | MOTOR | 1001- | ||
| 2 | 8242-78-1280 | COUPLING | 1001- | |
| 3 | 8242-78-2160 | SHACKLE | 1001- | |
| 4 | 8242-78-2170 | BOLT | 1001- | |
| 5 | 8242-78-2152 | CHAIN | 1001- | |
| 6 | 8295-78-1122 | BRACKET | 1001- | |
| 7 | 01010-81645 | BOLT | 1001- | |
| 8 | 01643-31645 | WASHER | 1001- | |
| 9 | 8295-78-1132 | BRACKET | 1001- | |
| 10 | 01010-81645 | BOLT | 1001- | |
| 11 | 01643-31645 | WASHER | 1001- | |
| 12 | 8295-78-1151 | COVER | 1001- | |
| 13 | 01010-81220 | BOLT | 1001- | |
| 14 | 01643-31232 | WASHER | 1001- | |
| 15 | 8295-78-1111 | BRACKET | 1001- | |
| 16 | 01010-81640 | BOLT | 1001- | |
| 17 | 01643-31645 | WASHER | 1001- | |
| 18 | 8295-78-1141 | CHUTE | 1001- | |
| 19 | 01010-81225 | BOLT | 1001- | |
| 20 | 01643-31232 | WASHER | 1001- | |
| 21 | 8295-78-1160 | CHUTE | 1001- | |
| 22 | 01010-81225 | BOLT | 1001- | |
| 23 | 01643-31232 | WASHER | 1001- | |
| 24 | 8295-78-1180 | PLATE | 1001- | |
| 25 | 01010-81230 | BOLT | 1001- | |
| 26 | 01643-31232 | WASHER | 1001- | |
| 27 | 01010-83095 | BOLT | 1001- | |
| 28 | 01580-13024 | NUT | 1001- | |
| 29 | 07629-00464 | HOSE | 1032- | |
| 07629-00463 | HOSE | 1007-1031 | ||
| 07629-00363 | HOSE | 1004-1006 | ||
| 07629-00367 | HOSE | 1001-1003 | ||
| 29A | 07629-00465 | HOSE | 1007- | |
| 07629-00365 | HOSE | 1004-1006 | ||
| 07629-00367 | HOSE | 1001-1003 | ||
| 30 | 07238-10422 | CONNECTOR | 1007- | |
| 07238-10315 | CONNECTOR | 1001-1006 | ||
| 32 | 07094-30315 | CLAMP | 1001- | |
| 33 | 07095-0031B | CUSHION | 1001- | |
| 34 | 01010-81260 | BOLT | 1001- | |
| 35 | 01643-31232 | WASHER | 1001- | |
| 36 | 07095-20418 | CUSHION | 1001- |
